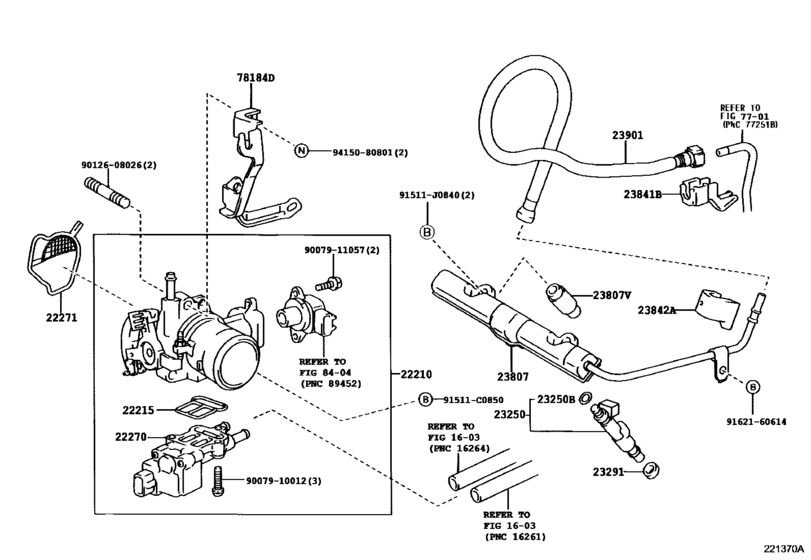

Fuel Injection System ([09.2002 - ] (0209- )) Diagram Toyota WILL
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- NCP75
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- WILL CYPHA
- From
- 09.2002
- To
- 07.2005
- Vehicle Model
- WILL CYPHA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-21010 Body Assy, Throttle[09.2002 - 07.2005] 1NZFE,2NZFE..NCP7# |
22210-21010 |
US $1,230.80 |
||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[09.2002 -] 1NZFE,2NZFE..NCP7# |
22215-7A680 |
from US $3.45 |
||
|
22270
|
22270
22270-21010 Valve Assy, Idle Speed Control(For Thlottle Body)[09.2002 - 03.2003] 1NZFE,2NZFE..NCP7# |
22270-21010 |
US $601.33 |
||
| replacement | |||||
|
22270
|
22270
22270-21011 Valve Assy, Idle Speed Control(For Thlottle Body)[09.2002 - 03.2003] 1NZFE,2NZFE..NCP7# |
22270-21011 |
from US $372.27 |
||
|
22270
|
22270
22270-21011 Valve Assy, Idle Speed Control(For Thlottle Body)[03.2003 -] 1NZFE,2NZFE..NCP7# |
22270-21011 |
from US $372.27 |
||
|
22271
|
22271
22271-21020 Gasket, Throttle Body[09.2002 - 01.2003] 1NZFE,2NZFE..NCP7# |
22271-21020 |
from US $2.94 |
||
|
22271
|
22271
22271-21050 Gasket, Throttle Body[01.2003 - 07.2005] 1NZFE,2NZFE..NCP7# |
22271-21050 |
from US $3.45 |
||
|
23250
|
23250
23209-21020 Injector Assy, Fuel[09.2002 -] 1NZFE,2NZFE..NCP7# |
23209-21020 |
from US $188.33 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[09.2002 - 07.2005] 1NZFE,2NZFE..NCP7# |
90301-07024 |
from US $2.91 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[09.2002 - 07.2005] 1NZFE,2NZFE..NCP7# |
23291-41010 |
from US $2.77 |
||
|
23807
|
23807
23807-21010 Pipe Sub-Assy, Fuel Delivery[09.2002 -] 1NZFE,2NZFE..NCP7# |
23807-21010 |
US $177.63 |
||
| replacement | |||||
|
23807
|
23807
23807-21021 Pipe Sub-Assy, Fuel Delivery[09.2002 -] 1NZFE,2NZFE..NCP7# |
23807-21021 |
from US $88.16 |
||
|
23807V
|
23807V
23891-21010 Spacer, No.1(For Delivery Pipe)[09.2002 -] 1NZFE,2NZFE..NCP7# |
23891-21010 |
US $3.84 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[09.2002 - 07.2005] 1NZFE,2NZFE..NCP7# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[09.2002 - 07.2005] 1NZFE,2NZFE..NCP7# |
23841-21050 |
US $3.52 |
||
|
23842A
|
23842A
23842-22020 Clamp, Fuel Pipe, No.1(For Efi)[09.2002 -] 1NZFE,2NZFE..NCP7# |
23842-22020 |
US $8.80 |
||
|
23901
|
23901
23901-21060 Tube Sub-Assy, Fuel[09.2002 - 07.2005] 1NZFE,2NZFE..NCP7# |
23901-21060 |
US $75.24 |
||
|
78184D
|
78184D
78184-52011 Bracket, Accelerator Control Cable[09.2002 -] NCP7# |
78184-52011 |
US $18.49 |
||
|
91511C0850
|
91511C0850
91511-C0850 New Genuine Part |
91511-C0850 |
US $0.87 |
||
|
91511J0840
|
91511J0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9007910012
|
9007910012
90079-10012 SCREW |
90079-10012 |
US $1.76 |
||
|
9007911057
|
9007911057
90079-11057 SCREW WWASHER |
90079-11057 |
US $1.76 |
||
|
9012608026
|
9012608026
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head) |
90126-08026 |
from US $2.46 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.28 |
||
