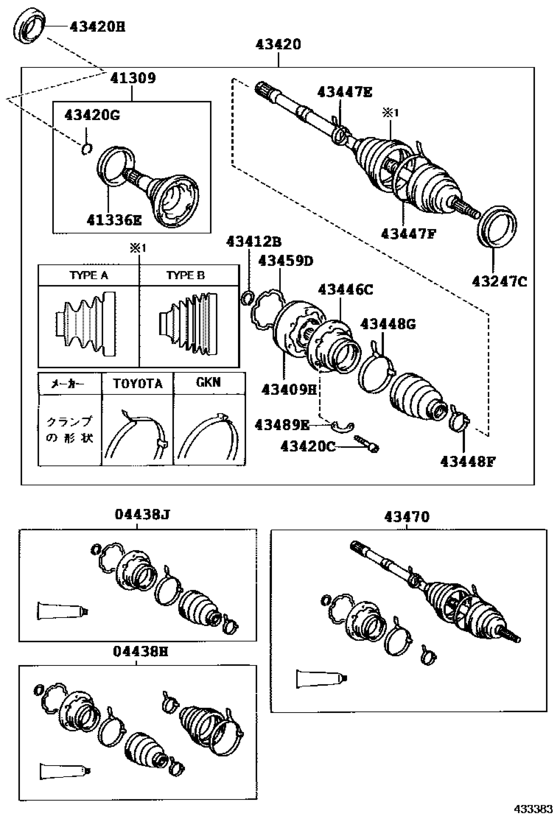

Front Drive Shaft ([08.1996 - ] LH,TOYOTA (9608- )MCV21) Diagram Toyota WINDOM
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- MCV21
- grade
- 25G
- ENGINE
- 2MZFE
- TRANSMISSION
- ATM
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- WINDOM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-06100 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1996 - 07.2001] MCV21 ＧＫＮ; MCV20 |
04438-06100 |
US $87.93 |
||
|
04438H
|
04438H
04438-33021 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1996 - 12.1997] MCV21 ＴＯＹＯＴＡ，ＴＹＰＥ Ａ |
04438-33021 |
US $145.60 |
||
|
04438H
|
04438H
04438-33090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2001 - 07.2001] MCV21 ＴＯＹＯＴＡ |
04438-33090 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-33060 Boot Kit, Front Drive Shaft, In & Outboard, Rh[05.2001 - 07.2001] MCV21 ＴＯＹＯＴＡ |
04428-33060 |
US $141.52 |
||
|
04438H
|
04438H
04438-48030
Boot Kit, Rear Drive Shaft
[12.1997 - 12.1999] MCV21 ＴＯＹＯＴＡ，ＴＹＰＥ Ｂ |
04438-48030 |
— | ||
|
04438H
|
04438H
04438-48031 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 05.2001] MCV21 ＴＯＹＯＴＡ |
04438-48031 |
US $165.98 |
||
| replacement | |||||
|
04438H
|
04438H
04428-48090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 05.2001] MCV21 ＴＯＹＯＴＡ |
04428-48090 |
from US $30.50 |
||
|
04438J
|
04438J
04438-06090 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.1996 -] MCV21 ＧＫＮ; MCV20 |
04438-06090 |
from US $81.84 |
||
|
04438J
|
04438J
04438-33011
Boot Kit, Rear Drive Shaft Inboard Joint
[08.1996 - 12.1999] MCV21 ＴＯＹＯＴＡ |
04438-33011 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-33012 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.1996 - 12.1999] MCV21 ＴＯＹＯＴＡ |
04438-33012 |
from US $103.81 |
||
|
04438J
|
04438J
04438-33012 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1999 -] MCV21 ＴＯＹＯＴＡ |
04438-33012 |
from US $103.81 |
||
|
41309
|
41309
41309-28030 Shaft Sub-Assy, Differential Side Gear, Lh[11.2000 -] MCV21 |
41309-28030 |
US $197.43 |
||
|
41309
|
41309
41309-33010 Shaft Sub-Assy, Differential Side Gear, Lh[08.1996 - 08.1999] MCV21 |
41309-33010 |
US $198.02 |
||
|
41309
|
41309
41309-33030 Shaft Sub-Assy, Differential Side Gear, Lh[08.1999 - 11.2000] MCV21 |
41309-33030 |
US $182 |
||
| replacement | |||||
|
41309
|
41309
41309-28030 Shaft Sub-Assy, Differential Side Gear, Lh[08.1999 - 11.2000] MCV21 |
41309-28030 |
US $197.43 |
||
|
41336E
|
41336E
41336-06040
Cover, Front Drive Shaft Dust, Lh
[08.1996 -] MCV21 ＧＫＮ; MCV20 |
41336-06040 |
— | ||
| replacement | |||||
|
41336E
|
41336E
41336-17020 Cover, Dust(For Differential Side Gear Shaft)[08.1996 -] MCV21 ＧＫＮ; MCV20 |
41336-17020 |
US $6.29 |
||
|
41336E
|
41336E
41336-17020 Cover, Dust(For Differential Side Gear Shaft)[08.1996 -] MCV21 ＴＯＹＯＴＡ |
41336-17020 |
US $6.29 |
||
|
43247C
|
43247C
43247-06010 Deflector, Front Wheel Bearing Dust, Rh No.2[08.1996 -] MCV21 ＧＫＮ; MCV20 |
43247-06010 |
US $39.31 |
||
|
43247C
|
43247C
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[08.1996 -] MCV21 ＴＯＹＯＴＡ |
43247-12010 |
from US $10.37 |
||
|
43409H
|
43409H
43409-17010
Joint Sub-Assy, Front Drive Shaft Cross Groove
[08.1996 - 08.1999] MCV21 |
43409-17010 |
— | ||
|
43409H
|
43409H
43409-28010 Joint Sub-Assy, Front Drive Shaft Cross Groove, Rh[08.1999 -] MCV21 |
43409-28010 |
from US $339.25 |
||
|
43412B
|
43412B
90520-26028 Ring, Snap (For Rear Drive Shaft)[08.1996 -] MCV21 |
90520-26028 |
from US $1.76 |
||
|
43420
|
43420
43420-06170 Shaft Assy, Front Drive, Lh[08.1996 - 07.2001] MCV21 ＧＫＮ; MCV20 |
43420-06170 |
from US $393.51 |
||
|
43420
|
43420
43420-33070 Shaft Assy, Front Drive, Lh[08.1996 - 11.1997] MCV21 ＴＯＹＯＴＡ |
43420-33070 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[08.1996 - 11.1997] MCV21 ＴＯＹＯＴＡ |
43420-48042 |
— | ||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[08.1996 - 11.1997] MCV21 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.57 |
||
|
43420
|
43420
43420-33140 Shaft Assy, Front Drive, Lh[12.1997 - 08.1999] MCV21 ＴＯＹＯＴＡ |
43420-33140 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[12.1997 - 08.1999] MCV21 ＴＯＹＯＴＡ |
43420-48042 |
— | ||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[12.1997 - 08.1999] MCV21 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.57 |
||
|
43420
|
43420
43420-33180 Shaft Assy, Front Drive, Lh[08.1999 - 08.2000] MCV21 ＴＯＹＯＴＡ |
43420-33180 |
US $962.42 |
||
| replacements | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[08.1999 - 08.2000] MCV21 ＴＯＹＯＴＡ |
43420-48042 |
— | ||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[08.1999 - 08.2000] MCV21 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.57 |
||
|
43420
|
43420
43420-33181 Shaft Assy, Front Drive, Lh[08.2000 - 11.2000] MCV21 ＴＯＹＯＴＡ |
43420-33181 |
US $962.42 |
||
| replacement | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[08.2000 - 11.2000] MCV21 ＴＯＹＯＴＡ |
43420-48042 |
— | ||
|
43420
|
43420
43420-48041 Shaft Assy, Front Drive, Lh[11.2000 - 05.2001] MCV21 ＴＯＹＯＴＡ |
43420-48041 |
US $962.42 |
||
| replacement | |||||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[11.2000 - 05.2001] MCV21 ＴＯＹＯＴＡ |
43420-48042 |
— | ||
|
43420
|
43420
43420-48042
Shaft Assy, Front Drive, Lh
[05.2001 - 07.2001] MCV21 ＴＯＹＯＴＡ |
43420-48042 |
— | ||
|
43420C
|
43420C
90110-10007
Bolt (For Propeller Shaft)
[08.1996 - 08.1999] MCV21 |
90110-10007 |
— | ||
| replacement | |||||
|
43420C
|
43420C
90110-10015 Bolt(For Rear Drive Shaft)[08.1996 - 08.1999] MCV21 |
90110-10015 |
from US $1.68 |
||
|
43420C
|
43420C
90110-10015 Bolt(For Rear Drive Shaft)[08.1999 -] MCV21 |
90110-10015 |
from US $1.68 |
||
|
43420G
|
43420G
90080-52017
Ring, Hole Snap (For Front Drive Shaft Lh)
[08.1996 -] MCV21 ＧＫＮ; MCV20 |
90080-52017 |
— | ||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.1996 -] MCV21 ＴＯＹＯＴＡ |
90521-33002 |
from US $1.60 |
||
|
43420H
|
43420H
90311-50011
Seal, Oil(For Differential Side Bearing Retainer)
[08.1996 - 12.2000] MCV2# |
90311-50011 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-50029 Oil Seal, Front Drive Shaft, Lh[08.1996 - 12.2000] MCV2# |
90311-50029 |
from US $10.88 |
||
|
43420H
|
43420H
90311-50029 Oil Seal, Front Drive Shaft, Lh[12.2000 -] MCV21 |
90311-50029 |
from US $10.88 |
||
|
43446C
|
43446C
43446-17010
Cover, Rear Axle Inboard Joint
[08.1996 - 12.1999] MCV21 |
43446-17010 |
— | ||
|
43446C
|
43446C
43446-28010 Cover, Front Axle Inboard Joint, Rh[12.1999 -] MCV21 |
43446-28010 |
US $16.31 |
||
|
43447E
|
43447E
42345-06060 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1996 -] MCV21 内径＝９０．９,ＧＫＮ; MCV20 内径＝９０．９ |
42345-06060 |
US $9.46 |
||
|
43447E
|
43447E
42345-16030 Clamp, Rear Drive Shaft Boot[08.1996 - 12.1997] MCV21 内径＝３５．７５,ＴＯＹＯＴＡ |
42345-16030 |
US $8.56 |
||
|
43447E
|
43447E
42345-48030 Clamp (For Rear Drive Shaft Outboard Joint Boot)[12.1997 -] MCV21 内径＝３５．０,ＴＯＹＯＴＡ |
42345-48030 |
US $5.53 |
||
|
43447F
|
43447F
42345-06070 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.1996 - 07.2001] MCV21 内径＝２９．３,ＧＫＮ; MCV20 内径＝２９．３ |
42345-06070 |
US $3.20 |
||
|
43447F
|
43447F
42345-16070 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[08.1996 - 12.1997] MCV21 ＴＯＹＯＴＡ |
42345-16070 |
US $4.37 |
||
|
43447F
|
43447F
42345-44010 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[03.2001 - 05.2001] MCV21 内径＝９８．７,ＴＯＹＯＴＡ |
42345-44010 |
US $7.43 |
||
| replacement | |||||
|
43447F
|
43447F
42345-44020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[03.2001 - 05.2001] MCV21 内径＝９８．７,ＴＯＹＯＴＡ |
42345-44020 |
US $7.57 |
||
|
43447F
|
43447F
42345-44020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[05.2001 - 07.2001] MCV21 ＴＯＹＯＴＡ |
42345-44020 |
US $7.57 |
||
|
43447F
|
43447F
42345-48040 Clamp, No. 2 (For Rr Drive Shaft Outboard Joint Boot)[12.1997 - 05.2001] MCV21 内径＝１０１．２,ＴＯＹＯＴＡ |
42345-48040 |
US $8.01 |
||
|
43448F
|
43448F
42345-14010 Clamp, Rear Drive Shaft Boot[08.1996 -] MCV21 ＴＯＹＯＴＡ |
42345-14010 |
US $11.20 |
||
|
43448F
|
43448F
90080-46084 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1996 - 05.1997] MCV21 ＧＫＮ; MCV20 |
90080-46084 |
US $4.37 |
||
|
43448F
|
43448F
90080-46238 Clamp (For Front Axle Inboard Joint Boot Rh)[05.1997 -] MCV2# ＧＫＮ |
90080-46238 |
US $5.24 |
||
|
43448G
|
43448G
42345-16100 Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot)[08.1996 - 08.1999] MCV21 ＴＯＹＯＴＡ |
42345-16100 |
US $3.49 |
||
|
43448G
|
43448G
90080-46173 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[08.1996 -] MCV21 ＧＫＮ; MCV20 |
90080-46173 |
US $6.12 |
||
|
43448G
|
43448G
90949-01340 Clamp (For Rear Drive Shaft Inboard Joint Boot)[08.1999 -] MCV21 ＴＯＹＯＴＡ |
90949-01340 |
US $3.79 |
||
|
43459D
|
43459D
43459-17010 Gasket, Rear Axle Inboard Joint End Cover[08.1996 -] MCV21 |
43459-17010 |
US $5.92 |
||
|
43470
|
43470
43470-09340 Shaft Assy, Front Drive Outboard Joint, Rh[08.1996 - 07.2001] MCV21 ＧＫＮ; MCV20 |
43470-09340 |
US $506.69 |
||
|
43470
|
43470
43470-39206 Shaft Assy, Front Drive Outboard Joint, Rh[08.1996 - 12.1997] MCV21 ＴＯＹＯＴＡ |
43470-39206 |
US $551.82 |
||
| replacements | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[08.1996 - 12.1997] MCV21 ＴＯＹＯＴＡ |
43470-39366 |
from US $467.08 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[08.1996 - 12.1997] MCV21 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.57 |
||
|
43470
|
43470
43470-39207 Shaft Assy, Front Drive Outboard Joint, Rh[12.1997 - 12.1999] MCV21 ＴＯＹＯＴＡ |
43470-39207 |
US $551.82 |
||
| replacements | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[12.1997 - 12.1999] MCV21 ＴＯＹＯＴＡ |
43470-39366 |
from US $467.08 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[12.1997 - 12.1999] MCV21 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.57 |
||
|
43470
|
43470
43470-39209 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 - 08.2000] MCV21 ＴＯＹＯＴＡ |
43470-39209 |
US $604.24 |
||
| replacements | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 - 08.2000] MCV21 ＴＯＹＯＴＡ |
43470-39366 |
from US $467.08 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[12.1999 - 08.2000] MCV21 ＴＯＹＯＴＡ |
90178-22001 |
from US $2.57 |
||
|
43470
|
43470
43470-39365 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 05.2001] MCV21 ＴＯＹＯＴＡ |
43470-39365 |
US $604.24 |
||
| replacement | |||||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[08.2000 - 05.2001] MCV21 ＴＯＹＯＴＡ |
43470-39366 |
from US $467.08 |
||
|
43470
|
43470
43470-39366 Shaft Assy, Front Drive Outboard Joint, Rh[05.2001 - 07.2001] MCV21 ＴＯＹＯＴＡ |
43470-39366 |
from US $467.08 |
||
|
43489E
|
43489E
43489-17010 Washer, Rear Drive Shaft Cross Groove Joint[08.1996 -] MCV21 |
43489-17010 |
US $5.12 |
||
