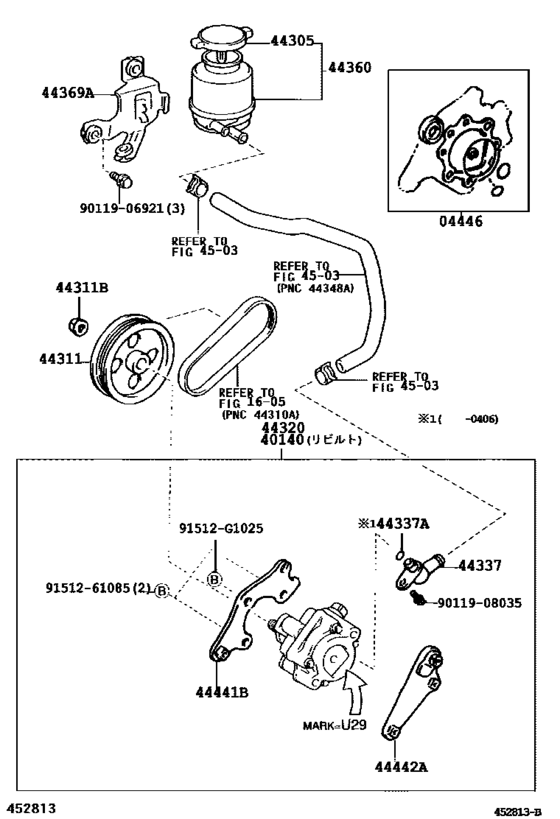

Vane Pump & Reservoir (Power Steering) ([07.2001 - ] TYPE A & MARK=U29 (0107- )) Diagram Toyota WINDOM
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- MCV30
- grade
- 30X
- ENGINE
- 1MZFE
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- WINDOM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-06040
Gasket Kit, Power Steering Pump
[07.2001 - 07.2003] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
04446-06040 |
— | ||
|
04446
|
04446
04446-34010
Gasket Kit, Power Steering Pump
[07.2001 - 07.2003] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
04446-34010 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-53030 Gasket Kit, Power Steering Pump[07.2001 - 07.2003] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
04446-53030 |
from US $20.67 |
||
|
04446
|
04446
04446-53030 Gasket Kit, Power Steering Pump[07.2003 -] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
04446-53030 |
from US $20.67 |
||
|
40140
|
40140
40140-33140 Pump Assy,vane Rebuilt[07.2001 - 05.2004] MCV30 ＴＯＹＯＤＡ ＫＯＫＩ |
40140-33140 |
US $773.14 |
||
| replacement | |||||
|
40140
|
40140
44320-33140 Pump Assy, Vane[07.2001 - 05.2004] MCV30 ＴＯＹＯＤＡ ＫＯＫＩ |
44320-33140 |
US $1,100.74 |
||
|
44305
|
44305
44305-28030
Cap Sub-Assy, Vane Pump Oil Reservoir
[07.2001 - 06.2004] MCV30 |
44305-28030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[07.2001 - 06.2004] MCV30 |
44305-28061 |
from US $16.30 |
||
|
44311
|
44311
44311-28110 Pulley, Vane Pump[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
44311-28110 |
US $99.16 |
||
|
44311B
|
44311B
90178-12003 Nut(For Vane Pump Pulley)[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
90178-12003 |
from US $0.96 |
||
|
44320
|
44320
44310-06080 Pump Assy, Vane[07.2001 - 06.2004] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
44310-06080 |
US $1,275.46 |
||
|
44320
|
44320
44320-33140 Pump Assy, Vane[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
44320-33140 |
US $1,100.74 |
||
|
44337
|
44337
44337-06040 Union, Power Steering Suction Port[07.2001 - 06.2004] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
44337-06040 |
US $116.72 |
||
|
44337
|
44337
44337-33040 Union, Power Steering Suction Port[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
44337-33040 |
US $116.72 |
||
| replacement | |||||
|
44337
|
44337
44337-06040 Union, Power Steering Suction Port[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
44337-06040 |
US $116.72 |
||
|
44337A
|
44337A
90080-30034
Ring, O(For Power Steering Suction Port)
[07.2001 - 06.2004] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
90080-30034 |
— | ||
| replacement | |||||
|
44337A
|
44337A
90301-11016 Ring, O(For Power Steering Suction Port)[07.2001 - 06.2004] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
90301-11016 |
from US $2.24 |
||
|
44337A
|
44337A
90301-11016 Ring, O(For Power Steering Suction Port)[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
90301-11016 |
from US $2.24 |
||
|
44360
|
44360
44360-33040 Reservoir Assy, Vane Pump Oil[07.2001 - 06.2004] MCV30 |
44360-33040 |
from US $113.57 |
||
|
44369A
|
44369A
44390-33010 Bracket, Oil Reservoir, No.1[07.2001 - 06.2004] MCV30 |
44390-33010 |
US $20.09 |
||
|
44441B
|
44441B
44441-06040
Bracket, Pump, Front
[07.2001 - 06.2004] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
44441-06040 |
— | ||
|
44441B
|
44441B
44441-28020 Bracket, Pump, Front[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
44441-28020 |
US $17.91 |
||
|
44442A
|
44442A
44442-07010 Bracket, Vane Pump, Rear[07.2001 - 06.2004] MCV30 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U13 |
44442-07010 |
US $35.24 |
||
|
44442A
|
44442A
44442-33021 Bracket, Vane Pump, Rear[07.2001 - 06.2004] MCV30 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & MARK=U29 |
44442-33021 |
US $14.41 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $1.01 |
||
|
9011906921
|
9011906921
90119-06921 New Genuine Part |
90119-06921 |
US $1.46 |
||
|
9011908035
|
9011908035
90119-08035 New Genuine Part |
90119-08035 |
US $2.04 |
||
|
9151261085
|
9151261085
91512-61085 New Genuine Part |
91512-61085 |
US $4.02 |
||
