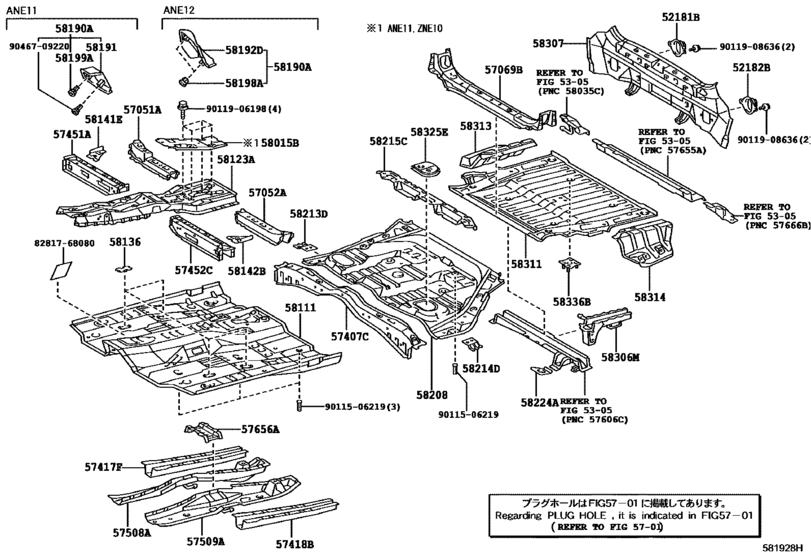

Floor Pan & Lower Back Panel ([12.2003 - ] (0312- )) Diagram Toyota WISH
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- ANE11
- grade
- ZAER
- ENGINE
- 1AZFE
- DESTINATION
- TAIW
- From
- 11.2005
- To
- 09.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 06S
- Vehicle Model
- WISH
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52181B
|
52181B
52181-68010 Arm, Rear Bumper, Rh[12.2003 - 03.2007] ANE12;ANE11..06S |
52181-68010 |
US $26.14 |
||
|
52182B
|
52182B
52181-68010 Arm, Rear Bumper, Rh[12.2003 - 03.2007] ANE1#..TAIW |
52181-68010 |
US $26.14 |
||
|
57051A
|
57051A
57051-68010 Member Sub-Assy, Front Floor Cross, Rh[12.2003 - 03.2007] ANE1#..TAIW |
57051-68010 |
US $45.86 |
||
|
57052A
|
57052A
57052-68010 Member Sub-Assy, Front Floor Cross, Lh[12.2003 - 03.2007] ANE1#..TAIW |
57052-68010 |
US $45.86 |
||
|
57069B
|
57069B
57069-68020 Member Sub-Assy, Rear Floor Cross, Center[12.2003 - 03.2007] ANE11..TAIW |
57069-68020 |
US $179.09 |
||
|
57407C
|
57407C
57407-68010 Member Sub-Assy, Center Floor Cross, No.1[12.2003 - 03.2007] ANE1#..TAIW |
57407-68010 |
US $90.27 |
||
|
57417F
|
57417F
57417-13020 Reinforcement, Front Floor Under[12.2003 - 03.2007] ANE1#..TAIW |
57417-13020 |
US $47.76 |
||
|
57418B
|
57418B
57418-13020 Reinforcement, Front Floor Under[12.2003 - 03.2007] ANE1#..TAIW |
57418-13020 |
US $47.76 |
||
|
57451A
|
57451A
57451-68020 Member, Front Floor Cross, Rh[12.2003 - 03.2007] ANE1#..TAIW |
57451-68020 |
US $24.02 |
||
|
57452C
|
57452C
57452-0M010
Member, Front Floor Cross, Lh
[08.2004 - 03.2007] ANE1#..TAIW |
57452-0M010 |
— | ||
|
57508A
|
57508A
57508-0M010
Reinforcement Sub-Assy, Front Floor, Rh
[08.2004 - 03.2007] ANE1#..TAIW |
57508-0M010 |
— | ||
|
57509A
|
57509A
57509-0M010
Reinforcement Sub-Assy, Front Floor, Lh
[08.2004 - 03.2007] ANE1#..TAIW |
57509-0M010 |
— | ||
|
57656A
|
57656A
57656-68010 Bracket, Exhaust Pipe Mounting, No.1[12.2003 - 03.2007] ANE1#..TAIW |
57656-68010 |
US $17.76 |
||
|
58111
|
58111
58111-0M901
Pan, Front Floor
[08.2004 - 03.2007] ANE1#..TAIW |
58111-0M901 |
— | ||
| replacements | |||||
|
58111
|
58111
58111-0M903
Pan, Front Floor
[08.2004 - 03.2007] ANE1#..TAIW |
58111-0M903 |
— | ||
|
58111
|
58111
82819-20710 Grommet, Wiring Harness[08.2004 - 03.2007] ANE1#..TAIW |
82819-20710 |
US $6.70 |
||
|
58111
|
58111
58111-0M903
Pan, Front Floor
[12.2008 -] ANE1#..TAIW |
58111-0M903 |
— | ||
|
58123A
|
58123A
58013-0M010
Support, Shift & Select Lever
[08.2004 - 03.2007] ANE1#..TAIW |
58013-0M010 |
— | ||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[12.2003 - 03.2007] ANE1#..TAIW |
58136-33010 |
US $3.06 |
||
|
58141E
|
58141E
58141-13040 Reinforcement, Front Side Member To Floor Pan, Rh[12.2003 - 03.2007] ANE1#..TAIW |
58141-13040 |
US $4.66 |
||
|
58142B
|
58142B
58142-13020 Reinforcemnt, Front Side Member To Floor Pan, Lh[12.2003 - 03.2007] ANE1#..TAIW |
58142-13020 |
US $4.66 |
||
|
58190A
|
58190A
58190-0M010
Rest Assy, Front Floor Foot
[08.2004 - 03.2007] ANE1#..TAIW |
58190-0M010 |
— | ||
|
58192D
|
58192D
58192-0M010
Footrest, Front Floor, Lh
[08.2004 - 03.2007] ANE1#..TAIW |
58192-0M010 |
— | ||
|
58198A
|
58198A
58198-05010 Clip, Footrest[08.2004 - 03.2007] ANE1#..TAIW |
58198-05010 |
US $4.22 |
||
|
58208
|
58208
58211-0M010
Pan, Center Floor
[08.2004 - 03.2007] ANE1#..TAIW |
58211-0M010 |
— | ||
|
58213D
|
58213D
58213-68010 Reinforcement, Center Floor Panel[12.2003 - 03.2007] ANE1#..TAIW |
58213-68010 |
US $6.41 |
||
|
58214D
|
58214D
58214-68010 Reinforcement, Center Floor Panel, No.1 Lh[12.2003 - 03.2007] ANE1#..TAIW |
58214-68010 |
US $6.41 |
||
|
58215C
|
58215C
58215-68010 Reinforcement, Center Floor Panel, No.2 Rh[12.2003 - 03.2007] ANE1#..TAIW |
58215-68010 |
US $41.79 |
||
|
58224A
|
58224A
58224-68010 Reinforcement, Floor Side Panel, Lh[12.2003 - 03.2007] ANE12;ANE11..06S |
58224-68010 |
US $11.21 |
||
|
58306M
|
58306M
58306-68020 Panel Sub-Assy, Rear Floor Side[12.2003 - 03.2007] ANE11..06S |
58306-68020 |
US $27.96 |
||
|
58307
|
58307
58307-0M011
Panel Sub-Assy, Body Lower Back
[11.2005 - 03.2007] ANE1#..TAIW |
58307-0M011 |
— | ||
|
58311
|
58311
58311-0M010
Pan, Rear Floor
[08.2004 - 03.2007] ANE1#..TAIW |
58311-0M010 |
— | ||
|
58313
|
58313
58313-0M010
Panel, Rear Floor Side, Rh
[08.2004 - 03.2007] ANE1#..TAIW |
58313-0M010 |
— | ||
|
58314
|
58314
58314-0M010
Panel, Rear Floor Side, Lh
[08.2004 - 03.2007] ANE1#..TAIW |
58314-0M010 |
— | ||
|
58325E
|
58325E
58325-68010 Cover, Rear Floor Service Hole[12.2003 - 03.2007] ANE1#..TAIW |
58325-68010 |
US $16.60 |
||
| replacement | |||||
|
58325E
|
58325E
58325-68011 Cover, Rear Floor Service HoleREAR FLOOR SERVICE HOLE [12.2003 - 03.2007] ANE1#..TAIW |
58325-68011 |
US $14.71 |
||
|
58336B
|
58336B
58336-68010 Reinforcement, Rear Floor Pan[12.2003 - 03.2007] ANE1#..TAIW |
58336-68010 |
US $17.76 |
||
|
8281768080
|
8281768080
82817-68080 Protector, Wiring Harness, No.1 |
82817-68080 |
US $17.33 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011906198
|
9011906198
90119-06198 New Genuine Part |
90119-06198 |
US $1.75 |
||
|
9011908636
|
9011908636
90119-08636 BOLT |
90119-08636 |
US $1.44 |
||
|
9046709220
|
9046709220
90467-09220 Clip, Footrest |
90467-09220 |
US $1.92 |
||
