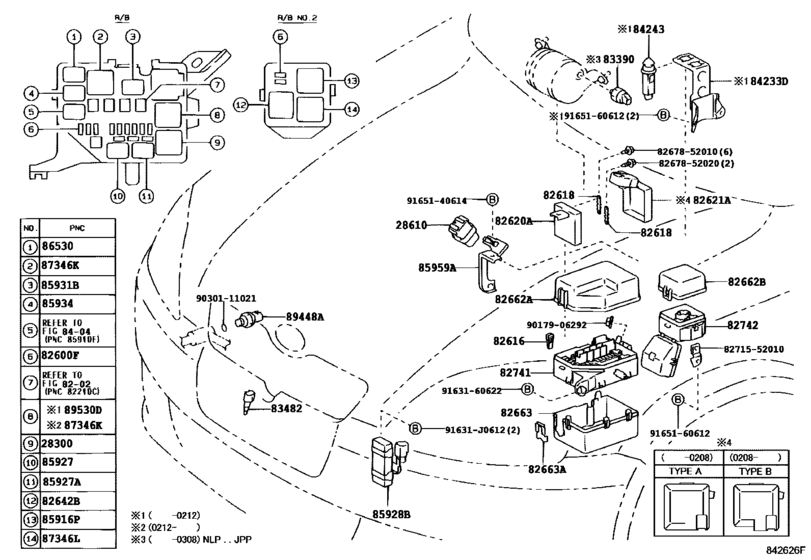

Switch & Relay & Computer ([01.1999 - ] ENGINE ROOM (9901- )JPP) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 1999 - 2002
- Sales region
- Europe
- Frame
- NCP10
- grade
- SOL
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- From
- 08.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[01.1999 - 12.2002] 1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP |
28300-10020 |
from US $57.15 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
82616-20010 |
from US $2.46 |
||
|
82618
|
82618
82618-52010 Fuse, Fuse Block[01.1999 - 04.2000] NCP10,SCP10..JPP..LHD 60A |
82618-52010 |
from US $3.08 |
||
|
82618
|
82618
82618-52030 Fuse, Fuse Block[01.1999 - 12.2002] NCP13,NLP10..JPP;NCP10,SCP10..JPP..LHD 120A |
82618-52030 |
from US $3.32 |
||
|
82620A
|
82620A
82620-52010
Block Assy, Fusible Link
[01.1999 - 08.2002] NCP1#,NLP10,SCP10..JPP |
82620-52010 |
— | ||
| replacement | |||||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[01.1999 - 08.2002] NCP1#,NLP10,SCP10..JPP |
82620-52011 |
from US $35.14 |
||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[08.2002 - 12.2002] NCP1#,NLP10,SCP10..JPP |
82620-52011 |
from US $35.14 |
||
|
82621A
|
82621A
82621-52020 Cover, Fusible Link[08.1999 - 08.2002] NCP10..JPP..LHD;NCP13,SCP10..JPP..(TS,TSGS) TYPE A:REFER ILLUST. |
82621-52020 |
US $19.76 |
||
|
82621A
|
82621A
82621-52021 Cover, Fusible Link[08.2002 - 12.2002] NCP13..JPP..RHD;NCP10,SCP10..JPP..LHD TYPE B:REFER ILLUST.; NCP13..JPP..LHD W(AIR CONDITIONER) OR W(DAY TIME RUNNING LIGHT SYSTEM & COLD AREA),TYPE B:REFER IL LUST. |
82621-52021 |
US $20.27 |
||
|
82642B
|
82642B
90987-04006 Relay Assy (For Heater Blower Motor)[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
82642B
|
82642B
90987-04010 Relay Assy (For Heater Blower Motor)[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-04010 |
from US $42.71 |
||
|
82662A
|
82662A
82662-52020 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [01.1999 - 12.2001] NCP1#,SCP10..JPP |
82662-52020 |
US $27.66 |
||
| replacement | |||||
|
82662A
|
82662A
82662-52160 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [01.1999 - 12.2001] NCP1#,SCP10..JPP |
82662-52160 |
US $19.07 |
||
|
82662A
|
82662A
82662-52030 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [10.1999 - 12.2001] NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(DAY TIME RUNNING LIGHT SYSTEM) |
82662-52030 |
US $27.66 |
||
| replacement | |||||
|
82662A
|
82662A
82662-52160 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [10.1999 - 12.2001] NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(DAY TIME RUNNING LIGHT SYSTEM) |
82662-52160 |
US $19.07 |
||
|
82662A
|
82662A
82662-52160 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [12.2001 - 12.2002] NCP1#,SCP10..JPP |
82662-52160 |
US $19.07 |
||
|
82662B
|
82662B
82662-52050 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [01.1999 - 10.1999] NCP10,SCP10..JPP..LHD |
82662-52050 |
US $15 |
||
|
82662B
|
82662B
82662-52051 Cover, Relay Block, Upper, No.2[02.2002 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
82662-52051 |
US $10.34 |
||
|
82663
|
82663
82663-52010 Cover, Relay Block, Lower[01.1999 - 12.2002] NCP1#,SCP10..JPP |
82663-52010 |
from US $19.07 |
||
|
82741
|
82741
82741-52010 Block, Engine Room Relay[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
82741-52010 |
US $78.03 |
||
|
82742
|
82742
82742-52010 Block, Engine Room Relay, No.2[10.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
82742-52010 |
US $32.91 |
||
|
83482
|
83482
83482-02010 Sensor, Outer Ambient Temperature[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP |
83482-02010 |
US $64.75 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[01.1999 - 12.2001] NCP1#,NLP10,SCP10..JPP |
90987-02012 |
from US $27.85 |
||
|
85927
|
85927
90987-02022 Relay, Starter Cut[12.2001 - 12.2002] NCP1#,NLP10,SCP10..JPP |
90987-02022 |
from US $54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
90987-04004 |
US $42.71 |
||
|
85928B
|
85928B
85928-52010 Resistor, Cooling Fan[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
85928-52010 |
US $70.18 |
||
| replacement | |||||
|
85928B
|
85928B
85928-52011 Resistor, Cooling Fan[01.1999 - 12.2002] NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
85928-52011 |
US $92.40 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[01.1999 - 03.2001] NCP1#,SCP10..JPP W(MANUAL AIR CONDITIONER(DOP)) |
90987-02012 |
from US $27.85 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[03.2001 - 12.2002] NCP1#,NLP10,SCP10..JPP |
90987-02022 |
from US $54 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[01.1999 - 12.2001] NCP1#,NLP10,SCP10..JPP |
90987-02012 |
from US $27.85 |
||
|
86530
|
86530
90987-02022 Relay, Starter Cut[12.2001 - 12.2002] NCP1#,NLP10,SCP10..JPP |
90987-02022 |
from US $54 |
||
|
87346K
|
87346K
90987-02016
Relay Assy, Starter
[10.1999 - 04.2001] NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-02016 |
— | ||
| replacement | |||||
|
87346K
|
87346K
90987-02025 Relay[10.1999 - 04.2001] NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
90987-02025 |
from US $44.54 |
||
|
89448A
|
89448A
89448-51010 Switch, Power Steering Oil Pressure[01.1999 - 12.2002] NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
89448-51010 |
US $168.48 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
8267852010
|
8267852010
82678-52010 Cover, Junction Block, Upper No.3 |
82678-52010 |
US $2.48 |
||
|
8267852020
|
8267852020
82678-52020 Cover, Junction Block, Upper No.3 |
82678-52020 |
US $2.77 |
||
|
8271552010
|
8271552010
82715-52010 Bracket,wiring Harness Clamp |
82715-52010 |
US $3.93 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.24 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
