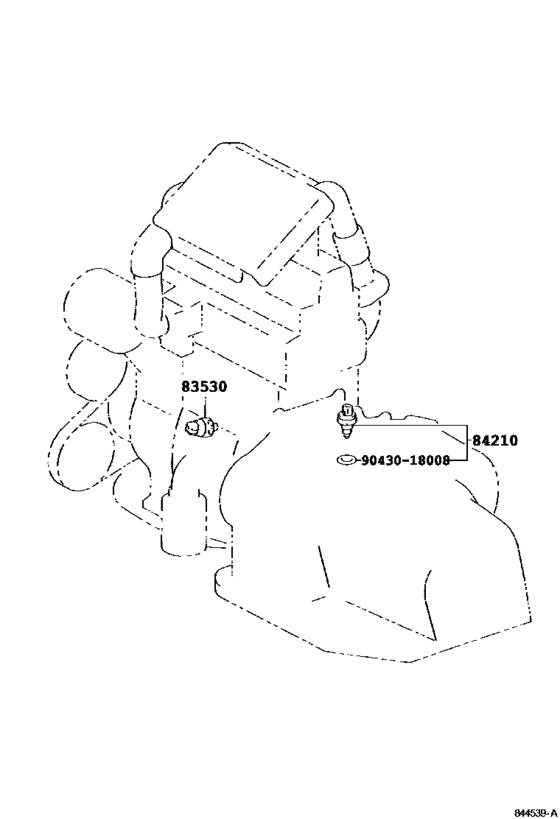

Switch & Relay & Computer ([10.2001 - 09.2005] ENGINE & TRANSMISSION (0110-0509)NLP2#) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- NLP20
- grade
- LUNA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 09.2005
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 11.2002] NLP2# DENSO |
83530-28010 |
from US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 11.2002] NLP2# DENSO |
83530-60010 |
from US $25.21 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[10.2001 - 11.2002] NLP2# YAZAKI |
83530-60010 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1999 - 11.2002] NCP2#,NLP2#..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1999 - 11.2002] NCP2#,NLP2#..5F |
84210-52050 |
from US $20.67 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
