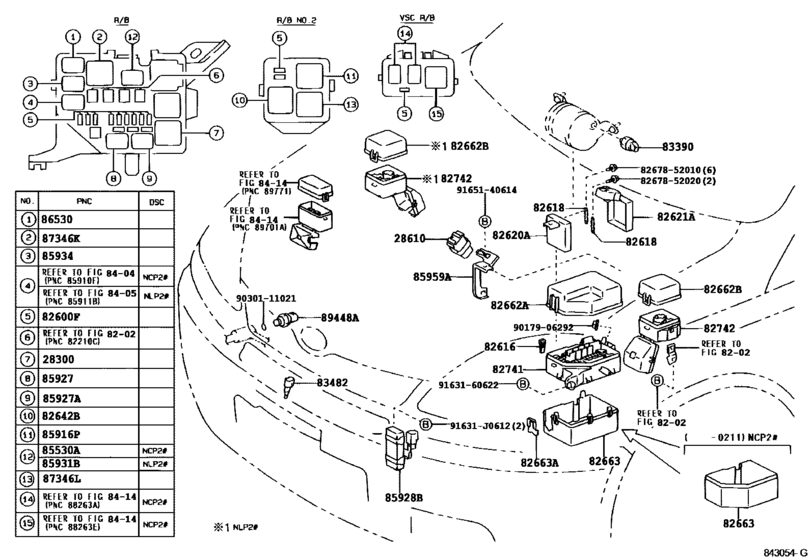

Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509)) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- NLP20
- grade
- LUNA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 09.2005
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[08.1999 - 11.2002] 1N#,2NZFE..NCP2#,NLP2# |
28300-10020 |
from US $51.97 |
||
|
28610
|
28610
28610-67010 Relay Assy, Glow Plug[10.2001 - 11.2002] 1NDTV..NLP2# |
28610-67010 |
from US $42.71 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[08.1999 - 11.2002] NCP2#,NLP2# |
82616-20010 |
from US $2.38 |
||
|
82618
|
82618
82618-52010 Fuse, Fuse Block[08.1999 - 11.2002] NCP2#,NLP2#..4FC,5F 60A |
82618-52010 |
from US $3.08 |
||
|
82618
|
82618
82618-52030 Fuse, Fuse Block[08.1999 - 11.2002] NCP2#,NLP2# 120A |
82618-52030 |
from US $3.32 |
||
|
82618
|
82618
82618-52040 Fuse, Fuse Block[10.2001 - 11.2002] NLP2# 80A |
82618-52040 |
US $4.68 |
||
|
82620A
|
82620A
82620-52010
Block Assy, Fusible Link
[08.1999 - 11.2002] NCP2#,NLP2# |
82620-52010 |
— | ||
| replacement | |||||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# |
82620-52011 |
from US $35.14 |
||
|
82620A
|
82620A
82620-52011 Block Assy, Fusible Link[11.2002 - 09.2005] NCP2#,NLP2# |
82620-52011 |
from US $35.14 |
||
|
82621A
|
82621A
82621-52030 Cover, Fusible Link[10.2001 - 11.2002] NLP2# |
82621-52030 |
US $17.91 |
||
|
82621A
|
82621A
82621-52031
Cover, Fusible Link
[11.2002 - 09.2005] NLP2# |
82621-52031 |
— | ||
|
82642B
|
82642B
90987-04006 Relay Assy (For Heater Blower Motor)[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
82642B
|
82642B
90987-04010 Relay Assy (For Heater Blower Motor)[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
90987-04010 |
from US $42.71 |
||
|
82642B
|
82642B
90987-04010 Relay Assy (For Heater Blower Motor)[12.2002 - 09.2005] NCP2#,NLP2#..LHD |
90987-04010 |
from US $42.71 |
||
|
82662A
|
82662A
82662-52110 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [10.2001 - 12.2001] NLP2# |
82662-52110 |
US $27.66 |
||
| replacement | |||||
|
82662A
|
82662A
82662-52111 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [10.2001 - 12.2001] NLP2# |
82662-52111 |
US $27.81 |
||
|
82662A
|
82662A
82662-52111 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [12.2001 - 11.2002] NLP2# |
82662-52111 |
US $27.81 |
||
|
82662B
|
82662B
82662-52050 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [08.1999 - 02.2002] NCP2#,NLP2#..LHD |
82662-52050 |
US $15 |
||
|
82662B
|
82662B
82662-52051 Cover, Relay Block, Upper, No.2[02.2002 - 11.2002] NCP2#,NLP2#..LHD |
82662-52051 |
US $10.34 |
||
|
82663
|
82663
82663-52040 Cover, Relay Block, Lower[10.2001 - 11.2002] NLP2# |
82663-52040 |
US $23.62 |
||
|
82663A
|
82663A
82663-52050 Cover, Relay Block, Lower, No.2[10.2001 - 11.2002] NLP2# |
82663-52050 |
US $1.89 |
||
|
82741
|
82741
82741-52010 Block, Engine Room Relay[08.1999 - 11.2002] NCP2#,NLP2# |
82741-52010 |
US $78.03 |
||
|
82742
|
82742
82742-52010 Block, Engine Room Relay, No.2[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
82742-52010 |
US $32.91 |
||
|
83390
|
83390
83390-30100 Switch Assy, Vacuum Warning[10.2001 - 11.2002] NLP2# |
83390-30100 |
US $48.05 |
||
|
83482
|
83482
83482-02010 Sensor, Outer Ambient Temperature[08.1999 - 11.2002] NCP2#,NLP2# |
83482-02010 |
US $64.75 |
||
|
85530A
|
85530A
90987-02012 Relay, Ignition, No.1[08.1999 - 12.2001] NCP2#,NLP2# |
90987-02012 |
from US $27.11 |
||
|
85530A
|
85530A
90987-02022 Relay, Starter Cut[12.2001 - 11.2002] NCP2#,NLP2# |
90987-02022 |
from US $54 |
||
|
85530A
|
85530A
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2# |
90987-02027 |
from US $33.62 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2#..LHD |
90987-02027 |
from US $33.62 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[08.1999 - 12.2001] NCP2#,NLP2# |
90987-02012 |
from US $27.11 |
||
|
85927
|
85927
90987-02022 Relay, Starter Cut[12.2001 - 11.2002] NCP2#,NLP2# |
90987-02022 |
from US $54 |
||
|
85927
|
85927
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2# |
90987-02027 |
from US $33.62 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[08.1999 - 11.2002] NCP2#,NLP2# |
90987-04004 |
US $42.71 |
||
|
85928B
|
85928B
85928-52010 Resistor, Cooling Fan[08.1999 - 11.2002] NCP2#,NLP2# |
85928-52010 |
US $70.18 |
||
| replacement | |||||
|
85928B
|
85928B
85928-52011 Resistor, Cooling Fan[08.1999 - 11.2002] NCP2#,NLP2# |
85928-52011 |
US $92.40 |
||
|
85931B
|
85931B
90987-02012 Relay, Ignition, No.1[10.2001 - 11.2001] NLP2#..LHD |
90987-02012 |
from US $27.11 |
||
|
85931B
|
85931B
90987-02022 Relay, Starter Cut[11.2001 - 06.2002] NLP2#..LHD |
90987-02022 |
from US $54 |
||
|
85931B
|
85931B
90987-02027 Relay[12.2002 - 09.2005] NLP2# |
90987-02027 |
from US $33.62 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[09.2001 - 11.2002] NCP2#,NLP2# |
90987-02022 |
from US $54 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[11.2002 - 09.2005] NCP2#,NLP2# |
90987-02028 |
from US $44.54 |
||
|
85959A
|
85959A
85959-52010 Holder, Relay[10.2001 - 11.2002] NLP2# |
85959-52010 |
US $11.36 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[08.1999 - 12.2001] NCP2#,NLP2# |
90987-02012 |
from US $27.11 |
||
|
86530
|
86530
90987-02022 Relay, Starter Cut[12.2001 - 11.2002] NCP2#,NLP2# |
90987-02022 |
from US $54 |
||
|
86530
|
86530
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2# |
90987-02027 |
from US $33.62 |
||
|
87346K
|
87346K
90987-02016
Relay Assy, Starter
[10.2001 - 11.2002] NLP2#..LHD |
90987-02016 |
— | ||
| replacement | |||||
|
87346K
|
87346K
90987-02025 Relay[10.2001 - 11.2002] NLP2#..LHD |
90987-02025 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02025 Relay[12.2002 - 09.2005] NLP2#..LHD |
90987-02025 |
from US $44.54 |
||
|
87346L
|
87346L
90987-02016
Relay Assy, Starter
[10.2001 - 11.2002] NLP2#..LHD |
90987-02016 |
— | ||
| replacement | |||||
|
87346L
|
87346L
90987-02025 Relay[10.2001 - 11.2002] NLP2#..LHD |
90987-02025 |
from US $44.54 |
||
|
87346L
|
87346L
90987-02025 Relay[12.2002 - 09.2005] NLP2#..LHD |
90987-02025 |
from US $44.54 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
8267852010
|
8267852010
82678-52010 Cover, Junction Block, Upper No.3 |
82678-52010 |
US $2.48 |
||
|
8267852020
|
8267852020
82678-52020 Cover, Junction Block, Upper No.3 |
82678-52020 |
US $2.77 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.24 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
