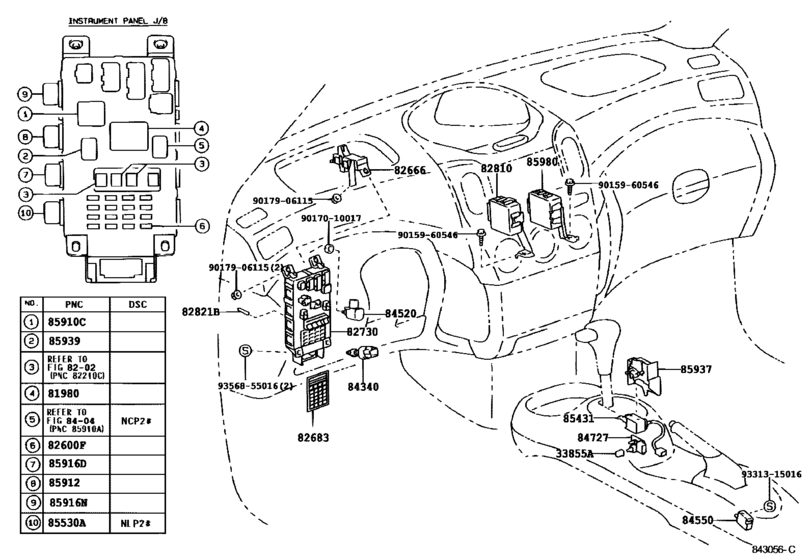

Switch & Relay & Computer ([08.1999 - 09.2005] COWL (9908-0509)LHD) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- NLP20
- grade
- LUNA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 09.2005
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[08.1999 - 11.2002] NCP2#,NLP2# |
81980-50030 |
from US $52.79 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1999 - 11.2002] NCP2#,NLP2# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82666
|
82666
82666-52010 Holder, Connector[08.1999 - 11.2002] NCP2#,NLP2# |
82666-52010 |
US $17.91 |
||
|
82683
|
82683
82683-52051 Plate, Fuse Block CautionFUSE BLOCK CAUTION [10.2001 - 11.2002] NLP2#..LHD |
82683-52051 |
US $3.79 |
||
|
82730
|
82730
82732-52020 Block Assy, Instrument Panel Junction[08.1999 - 11.2002] NCP2#,NLP2# |
82732-52020 |
US $184.91 |
||
|
82730
|
82730
82732-52030 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [08.1999 - 11.2002] NCP2#,NLP2#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
82732-52030 |
US $278.10 |
||
|
82810
|
82810
82810-52020 Relay Assy, Running LightRUNNING LIGHT [08.1999 - 11.2002] NCP2#,NLP2#..LHD |
82810-52020 |
US $209.66 |
||
|
82821B
|
82821B
82821-52020 Cover, Connector[10.2001 - 11.2002] NLP2# |
82821-52020 |
from US $0.44 |
||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[10.2001 - 11.2002] NLP2# |
84340-20060 |
from US $21.80 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[11.2002 - 09.2005] NLP2# MATSUSHITA |
84340-47020 |
from US $53.22 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[10.2001 - 11.2002] NLP2# |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[08.1999 - 11.2002] NCP2#,NLP2# |
84550-30080 |
from US $18.39 |
||
|
85530A
|
85530A
90987-02012 Relay, Ignition, No.1[08.1999 - 12.2001] NCP2#,NLP2# |
90987-02012 |
from US $27.11 |
||
|
85530A
|
85530A
90987-02022 Relay, Starter Cut[12.2001 - 11.2002] NCP2#,NLP2# |
90987-02022 |
from US $54 |
||
|
85530A
|
85530A
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2# |
90987-02027 |
from US $33.62 |
||
|
85910C
|
85910C
90987-04006 Relay Assy (For Heater Blower Motor)[08.1999 - 11.2002] NCP2#,NLP2# |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.1999 - 11.2002] NCP2#,NLP2# |
90987-04010 |
from US $42.71 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[12.2002 - 09.2005] NCP2#,NLP2# |
90987-04010 |
from US $42.71 |
||
|
85912
|
85912
90987-02012 Relay, Ignition, No.1[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
90987-02012 |
from US $27.11 |
||
|
85912
|
85912
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2#..LHD |
90987-02027 |
from US $33.62 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[08.1999 - 11.2002] NCP2#,NLP2# |
90987-02012 |
from US $27.11 |
||
|
85916D
|
85916D
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2# |
90987-02027 |
from US $33.62 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[08.1999 - 11.2002] NCP2#,NLP2#..LHD |
90987-02012 |
from US $27.11 |
||
|
85916N
|
85916N
90987-02025 Relay[12.2002 - 09.2005] NCP2#,NLP2#..LHD |
90987-02025 |
from US $44.54 |
||
|
85939
|
85939
90987-02012 Relay, Ignition, No.1[08.1999 - 11.2002] NCP2#,NLP2# |
90987-02012 |
from US $27.11 |
||
|
85939
|
85939
90987-02027 Relay[12.2002 - 09.2005] NCP2#,NLP2# |
90987-02027 |
from US $33.62 |
||
|
85980
|
85980
85980-52031
Relay Assy, Door Control
[08.1999 - 11.2002] NCP2#,NLP2# |
85980-52031 |
— | ||
|
85980
|
85980
85980-52051
Relay Assy, Door Control
[08.1999 - 11.2002] NCP2#,NLP2# W(KEY LESS ENTRY) |
85980-52051 |
— | ||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9331315016
|
9331315016
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
