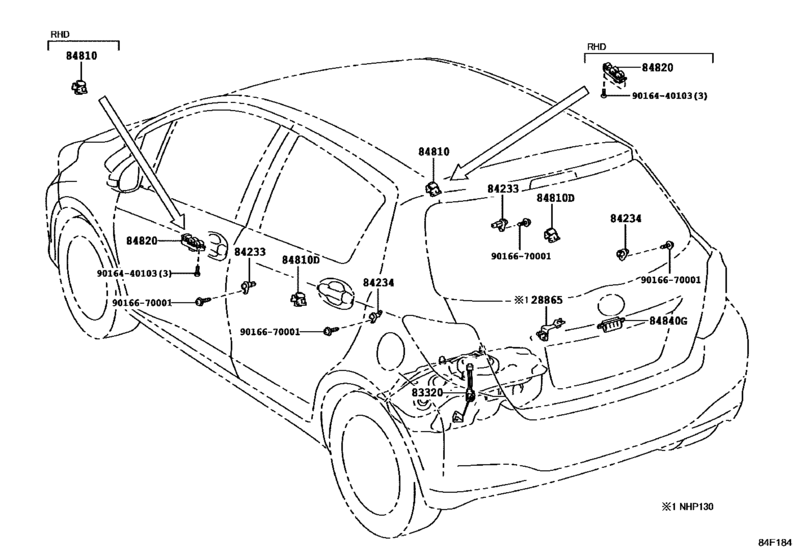

Switch & Relay & Computer ([07.2014 - ] DOOR,ROOF,FLOOR & BACK DOOR (1407- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- Europe
- Frame
- NSP131
- ENGINE
- 2NRFKE
- TRANSMISSION
- MTM
- PRODUCT
- FRP
- From
- 03.2017
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Model Mark
- S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-52270 Gage Assy, Fuel Sender[03.2017 -] KSP130,NSP131 |
83320-52270 |
US $57.91 |
||
|
84233
|
84233
84231-0D030
Switch Assy, Courtesy Lamp (For Front Door)
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84231-0D030 |
— | ||
|
84234
|
84234
84231-0D040
Switch Assy, Courtesy Lamp (For Rear Door)
[03.2017 -] KSP130,NHP130,NLP130,NSP131..5D |
84231-0D040 |
— | ||
|
84810
|
84810
84810-0D030
Switch Assy, Power Window Regulator
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84810-0D030 |
— | ||
|
84810D
|
84810D
84810-0D030
Switch Assy, Power Window Regulator
[03.2017 -] KSP130,NHP130,NLP130,NSP131..G; NSP131..LHD..5D..R;KSP130,NHP130,NLP130,NSP131..5D..(N,S) POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN) |
84810-0D030 |
— | ||
|
84820
|
84820
84820-02310
Master Switch Assy, Power Window Regulator
[03.2017 -] KSP130,NHP130,NLP130,NSP131..RHD..G; KSP130,NHP130,NLP130,NSP131..RHD..5D..(N,S) POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN) |
84820-02310 |
— | ||
|
84820
|
84820
84820-02330
Master Switch Assy, Power Window Regulator
[03.2017 -] KSP130,NHP130,NLP130,NSP131..RHD..(N,R,S) |
84820-02330 |
— | ||
|
84840G
|
84840G
84840-02050
Switch Assy, Back Door Opener
[03.2017 -] KSP130,NHP130,NLP130,NSP131 |
84840-02050 |
— | ||
|
84840G
|
84840G
84840-02060
Switch Assy, Back Door Opener
[03.2017 -] KSP130,NHP130,NLP130,NSP131..5D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY) |
84840-02060 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
