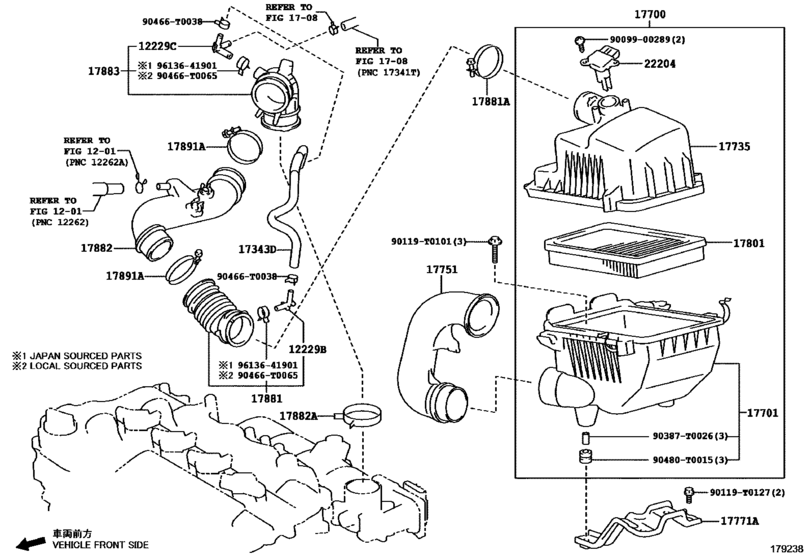

Air Cleaner ([04.2016 - ] (1604- )1NRFE,2NRFE..CVT) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12229B
|
12229B
12229-0Y100
Pipe, Ventilation, No.1
[04.2016 -] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
12229-0Y100 |
— | ||
|
12229C
|
12229C
12229-0Y150
Pipe, Ventilation, No.2
[04.2016 -] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,IDN,MA,PH,TH,VN) |
12229-0Y150 |
— | ||
|
17343D
|
17343D
17343-0Y010
Hose, Air, No.3
[04.2016 - 04.2017] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17343-0Y010 |
— | ||
|
17343D
|
17343D
17343-0Y011
Hose, Air, No.3
[04.2017 -] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17343-0Y011 |
— | ||
|
17700
|
17700
17700-0Y190 Cleaner Assy, Air[04.2016 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
17700-0Y190 |
US $360.03 |
||
|
17701
|
17701
17701-0M070 Case Sub-Assy, Air Cleaner[04.2013 -] 1N#,2N#..NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
17701-0M070 |
US $72.89 |
||
|
17735
|
17735
17735-0Y140
Cap, Air Cleaner
[04.2016 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
17735-0Y140 |
— | ||
|
17751
|
17751
17751-0Y190
Inlet, Air Cleaner, No.1
[04.2016 -] 1NRFE,2NRFE..NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
17751-0Y190 |
— | ||
|
17771A
|
17771A
17771-0Y050
Bracket, Air Cleaner
[04.2016 -] 1NRFE,2NRFE..NSP15#..B |
17771-0Y050 |
— | ||
|
17801
|
17801
17801-0Y040 Element Sub-Assy, Air Cleaner Filter[04.2013 -] 1N#,2N#..NCP15#,NSP15#..B |
17801-0Y040 |
from US $21.02 |
||
|
17881
|
17881
17881-0Y240
Hose, Air Cleaner, No.1
[04.2016 -] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17881-0Y240 |
— | ||
|
17881A
|
17881A
90460-T0017
Clamp(For Air Cleaner Hose, No.1)
[04.2016 -] 1NRFE,2NRFE..NSP15#..GCC,GEN,IDN,MA,PH,TH,VN |
90460-T0017 |
— | ||
|
17882
|
17882
17882-0Y080
Hose, Air Cleaner, No.2
[04.2016 - 03.2017] 1NRFE,2NRFE..NSP15#..CVT..B |
17882-0Y080 |
— | ||
| replacement | |||||
|
17882
|
17882
17882-0Y081
Hose, Air Cleaner, No.2
[04.2016 - 03.2017] 1NRFE,2NRFE..NSP15#..CVT..B |
17882-0Y081 |
— | ||
|
17882
|
17882
17882-0Y081
Hose, Air Cleaner, No.2
[04.2017 -] 1NRFE,2NRFE..NSP15#..CVT..B |
17882-0Y081 |
— | ||
|
17882A
|
17882A
90466-62002 Clamp(For Air Cleaner Hose, No.1)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
90466-62002 |
from US $5.12 |
||
|
17883
|
17883
17883-0Y040
Hose, Air Cleaner, No.3
[04.2016 - 04.2017] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17883-0Y040 |
— | ||
| replacement | |||||
|
17883
|
17883
17883-0Y041
Hose, Air Cleaner, No.3
[04.2016 - 04.2017] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17883-0Y041 |
— | ||
|
17883
|
17883
17883-0Y041
Hose, Air Cleaner, No.3
[04.2017 -] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17883-0Y041 |
— | ||
|
17891A
|
17891A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
96111-10730 |
US $2.56 |
||
|
22204
|
22204
22204-0V020 Meter Sub-Assy, Intake Air Flow[04.2013 -] 1N#,2N#..NCP15#,NSP150,151..B,C |
22204-0V020 |
US $143.87 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [04.2013 -] 1N#,2N#..NCP15#,NSP150,151..B,C |
22204-28010 |
from US $149.08 |
||
|
90119T0101
|
90119T0101
90119-T0101 New Genuine Part |
90119-T0101 |
US $1.02 |
||
|
90119T0127
|
90119T0127
90119-T0127
New Genuine Part
|
90119-T0127 |
— | ||
|
90387T0026
|
90387T0026
90387-T0026
New Genuine Part
|
90387-T0026 |
— | ||
|
90466T0038
|
90466T0038
90466-T0038
Clip(For Air Hose No.3)
|
90466-T0038 |
— | ||
|
90466T0065
|
90466T0065
90466-T0065
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90466-T0065 |
— | ||
|
90480T0015
|
90480T0015
90480-T0015 New Genuine Part |
90480-T0015 |
US $1.31 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.70 |
||
|
9613641901
|
9613641901
96136-41901 Clip Or Clamp(For Ventilation Hose) |
96136-41901 |
from US $1.92 |
||
