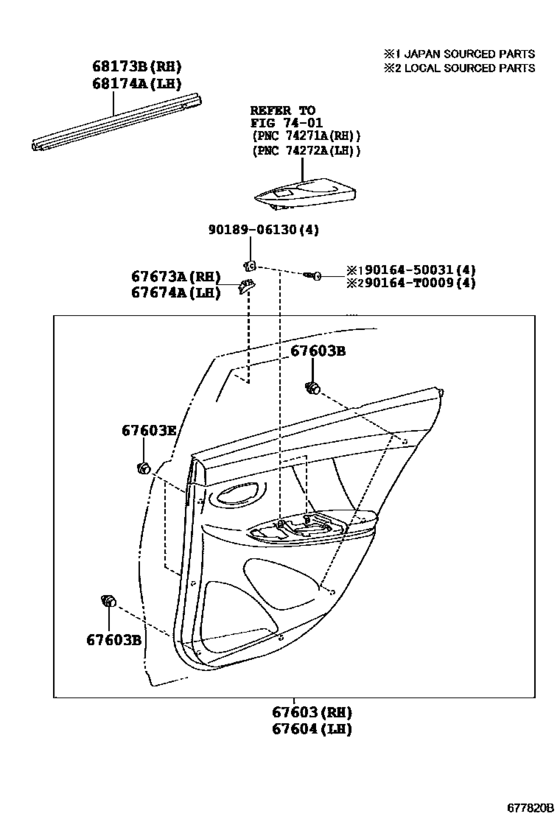

Rear Door Panel & Glass ([04.2013 - ] DOOR TRIM (1304- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-0DA00-C0
Board Sub-Assy, Rear Door Trim, Rh
[04.2013 -] NSP15#..CVT..GEN..D;NCP150,NSP151..VN..R;NCP15#,NSP15#..(GCC,GEN,IDN,TH)..(G,R)..B IVORY,TRIM0# |
67630-0DA00-C0 |
— | ||
|
67603
|
67603
67630-0DA00-C1
Board Sub-Assy, Rear Door Trim, Rh
[04.2013 -] NSP150..CVT..GEN..D;NSP151..5F..GEN..(G,R);NSP151..CVT..(GCC,GEN,TH)..B;NCP15#,NSP 150..(GCC,GEN,IDN,TH,VN)..(G,R,V)..B BLACK,TRIM2# |
67630-0DA00-C1 |
— | ||
|
67603B
|
67603B
90467-T0019 Clip(For Door Trim)[04.2013 -] NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C) |
90467-T0019 |
US $0.99 |
||
|
67603E
|
67603E
90467-T0021 Clip(For Cowl Side Trim)[04.2013 -] NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C) |
90467-T0021 |
US $1.15 |
||
|
67604
|
67604
67640-0DA00-C0
Board Sub-Assy, Rear Door Trim, Lh
[04.2013 -] NSP15#..CVT..GEN..D;NCP150,NSP151..VN..R;NCP15#,NSP15#..(GCC,GEN,IDN,TH)..(G,R)..B IVORY,TRIM0# |
67640-0DA00-C0 |
— | ||
|
67604
|
67604
67640-0DA00-C1
Board Sub-Assy, Rear Door Trim, Lh
[04.2013 -] NSP150..CVT..GEN..D;NSP151..5F..GEN..(G,R);NSP151..CVT..(GCC,GEN,TH)..B;NCP15#,NSP 150..(GCC,GEN,IDN,TH,VN)..(G,R,V)..B BLACK,TRIM2# |
67640-0DA00-C1 |
— | ||
|
67673A
|
67673A
67673-0D040
Garnish, Rear Door Frame, Rh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
67673-0D040 |
— | ||
|
67674A
|
67674A
67674-0D040
Garnish, Rear Door Frame, Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
67674-0D040 |
— | ||
|
68173B
|
68173B
68173-0D150
Weatherstrip, Rear Door Glass, Inner Rh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
68173-0D150 |
— | ||
|
68174A
|
68174A
68174-0D150
Weatherstrip, Rear Door Glass, Inner Lh
[04.2013 -] NCP15#,NSP15#..(GCC,GEN,IDN,TH,VN)..B |
68174-0D150 |
— | ||
|
90164T0009
|
90164T0009
90164-T0009
New Genuine Part
|
90164-T0009 |
— | ||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.68 |
||
|
9018906130
|
9018906130
90189-06130 GROMMET SCREW |
90189-06130 |
from US $1.15 |
