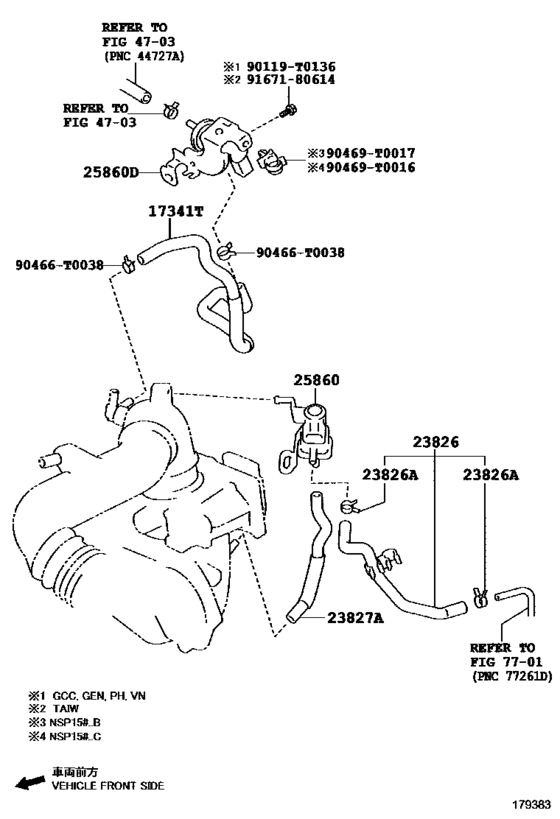

Vacuum Piping ([04.2016 - ] (1604- )1NRFE,2NRFE..CVT) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341T
|
17341T
17341-0Y070
Hose, Air, No.1
[04.2016 -] 1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN,MA,PH,TH,VN)..B |
17341-0Y070 |
— | ||
|
23826
|
23826
23826-0Y140
Hose, Fuel Vapor Feed, No.1
[04.2016 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
23826-0Y140 |
— | ||
|
23826A
|
23826A
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
90466-11003 |
US $1.60 |
||
| replacement | |||||
|
23826A
|
23826A
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
90466-A0001 |
US $3.15 |
||
|
23827A
|
23827A
23827-0Y140
Hose, Fuel Vapor Feed, No.2
[04.2016 -] 1NRFE,2NRFE..NSP15#..(GCC,GEN,MA,PH,TH,VN)..B |
23827-0Y140 |
— | ||
|
25860
|
25860
25860-0Y090
Valve Assy, Vacuum Switching, No.1
[04.2016 -] 1NRFE,2NRFE..NSP150,151..B,C |
25860-0Y090 |
— | ||
|
25860D
|
25860D
25860-0Y040
Valve Assy, Vacuum Switching, No.2
[04.2016 -] 1NRFE,2NRFE..NSP15#..CVT |
25860-0Y040 |
— | ||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90466T0038
|
90466T0038
90466-T0038
Clip(For Air Hose No.3)
|
90466-T0038 |
— | ||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
