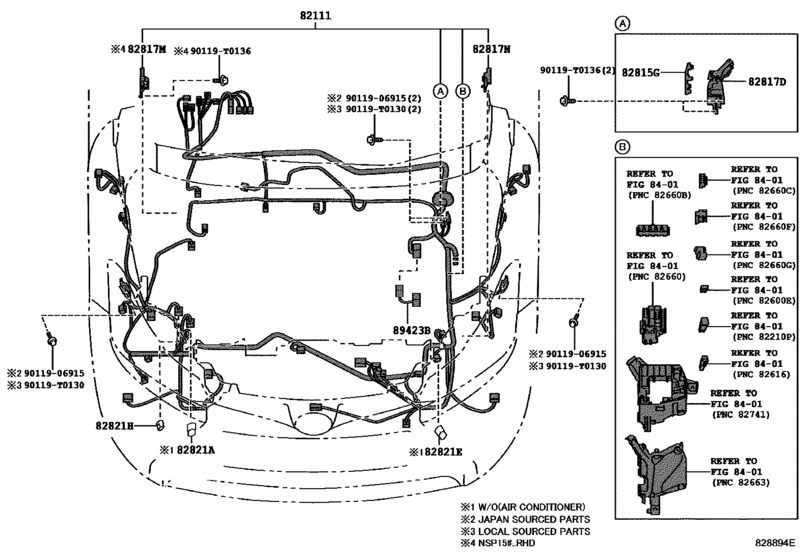

Wiring & Clamp ([04.2013 - ] ENGINE ROOM (1304- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP150
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- CATEGORY
- B
- From
- 04.2016
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82115-0DV10
Wire, Engine Room Main
[04.2016 -] NSP151..CVT..GEN;NSP150..LHD..CVT..GEN..(D,R) |
82115-0DV10 |
— | ||
|
82815G
|
82815G
82815-0D350
Cover, Wiring Harness Protector No.5
[04.2016 -] NSP150,151..B,C |
82815-0D350 |
— | ||
|
82817D
|
82817D
82817-0D580
Protector, Wiring Harness, No.5
[04.2013 -] NCP15#,NSP150,151..B,C |
82817-0D580 |
— | ||
|
82817N
|
82817N
82817-0DB10
Protector, Wiring Harness, No.13
[04.2016 -] NSP150,151..B,C |
82817-0DB10 |
— | ||
|
82821E
|
82821E
82821-20390 Cover, Connector[08.2013 -] NCP15#,NSP15#..LHD..GEN..D LATIN AMERICA SPEC |
82821-20390 |
US $4.22 |
||
|
82821H
|
82821H
82821-12400 Cover, Connector[04.2016 -] NSP150,151..LHD..GEN..D..B LATIN AMERICA SPEC |
82821-12400 |
US $4.19 |
||
|
89423B
|
89423B
89423-0D020
Wire, Vacuum Sensor
[04.2016 -] NSP15#..LHD..(GCC,GEN,PH,VN)..B |
89423-0D020 |
— | ||
|
90119T0130
|
90119T0130
90119-T0130
New Genuine Part
|
90119-T0130 |
— | ||
| replacement | |||||
|
90119T0130
|
90119T0130
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
