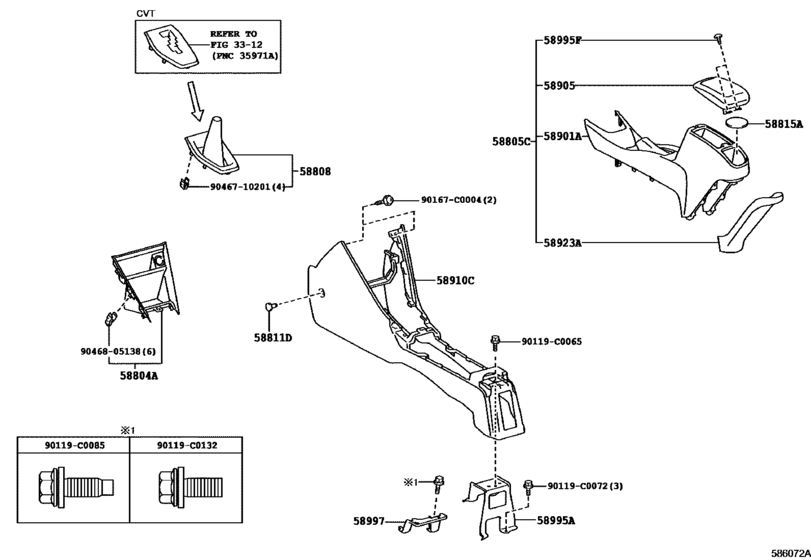

Console Box & Bracket ([08.2016 - ] (1608- )NSP151) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- NSP151
- ENGINE
- 7NRFE
- TRANSMISSION
- CVT
- From
- 03.2017
- No.of Doors
- 4D
- Model Mark
- G
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58804A
|
58804A
58804-0D260
Panel Sub-Assy, Console, Upper
[08.2016 -] NSP15# |
58804-0D260 |
— | ||
|
58805C
|
58805C
58805-YY050-C0
Panel Sub-Assy, Console, Upper Rear
[08.2016 -] NSP151..G BLACK,TRIM0#; NSP151..N,R BLACK,TRIM0#,2# |
58805-YY050-C0 |
— | ||
|
58811D
|
58811D
90467-05164-C7 Clip(For Front Floor Silencer)[10.2016 -] NSP151..G BLACK,TRIM0#; NSP15#..N,R BLACK,TRIM0#,2# |
90467-05164-C7 |
from US $0.62 |
||
|
58815A
|
58815A
58815-YY020
Carpet, Console Box
[08.2016 -] NSP151 |
58815-YY020 |
— | ||
|
58901A
|
58901A
58911-YY010-C0
Box Sub-Assy, Console, Rear
[08.2016 -] NSP151..G BLACK,TRIM0#; NSP151..N,R BLACK,TRIM0#,2# |
58911-YY010-C0 |
— | ||
|
58905
|
58905
58905-YY010-C0
Door Sub-Assy, Console Compartment
[08.2016 -] NSP151..G BLACK,TRIM0#; NSP151..N,R BLACK,TRIM0#,2# |
58905-YY010-C0 |
— | ||
|
58910C
|
58910C
58910-0D560-C0
Box Assy, Console, Rear
[08.2016 -] NSP151..G BLACK,TRIM0#; NSP15#..N,R BLACK,TRIM0#,2# |
58910-0D560-C0 |
— | ||
|
58923A
|
58923A
58923-YY010-C0
Panel, Console Rear End
[08.2016 -] NSP151..G BLACK,TRIM0#; NSP151..N,R BLACK,TRIM0#,2# |
58923-YY010-C0 |
— | ||
|
58995A
|
58995A
58995-0D090
Bracket, Console Box Mounting, No.1
[08.2016 -] NSP15# |
58995-0D090 |
— | ||
|
58995F
|
58995F
58995-YY020
Bracket, Console Box Mounting, No.2
[08.2016 -] NSP151 |
58995-YY020 |
— | ||
|
58997
|
58997
58997-0D030
Bracket, Console Box Mounting, No.3
[08.2016 -] NSP15# |
58997-0D030 |
— | ||
|
90119C0065
|
90119C0065
90119-C0065
New Genuine Part
|
90119-C0065 |
— | ||
|
90119C0072
|
90119C0072
90119-C0072
New Genuine Part
|
90119-C0072 |
— | ||
|
90119C0085
|
90119C0085
90119-C0085
New Genuine Part
|
90119-C0085 |
— | ||
|
90119C0132
|
90119C0132
90119-C0132
New Genuine Part
|
90119-C0132 |
— | ||
|
90167C0004
|
90167C0004
90167-C0004
New Genuine Part
|
90167-C0004 |
— | ||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $1.03 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.07 |
