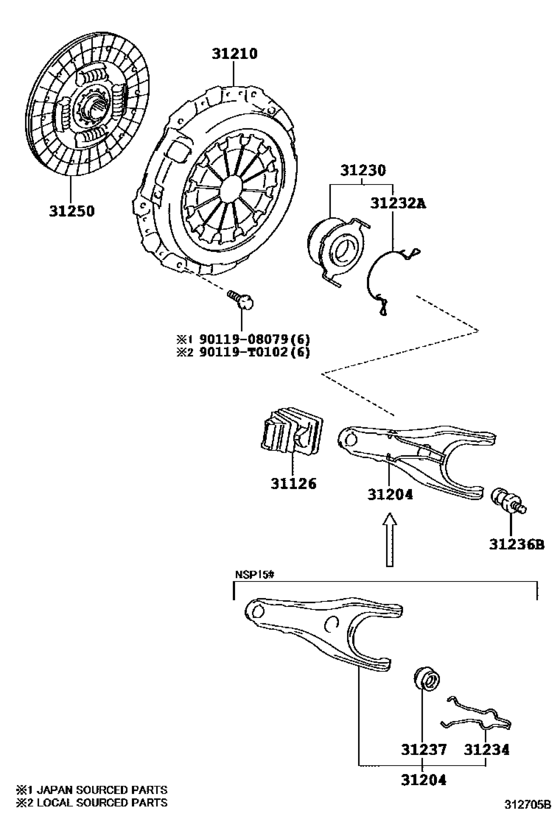

Clutch & Release Fork ([04.2013 - ] (1304- )5F) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- CATEGORY
- C
- From
- 10.2016
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Model Mark
- D
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-0D090
Boot, Clutch Release Fork
[04.2016 -] NSP150,151..5F..(B,C) |
31126-0D090 |
— | ||
|
31204
|
31204
31204-0D040
Fork Sub-Assy, Clutch Release
[04.2016 -] NSP150,151..5F..(B,C) |
31204-0D040 |
— | ||
|
31210
|
31210
31210-0D240
Cover Assy, Clutch
[04.2016 -] NSP151..5F |
31210-0D240 |
— | ||
|
31230
|
31230
31230-0D011
Bearing Assy, Clutch Release
[10.2016 - 03.2017] NSP15#..5F |
31230-0D011 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-0D012
Bearing Assy, Clutch Release
[10.2016 - 03.2017] NSP15#..5F |
31230-0D012 |
— | ||
|
31230
|
31230
31230-0D012
Bearing Assy, Clutch Release
[04.2017 -] NSP15#..5F |
31230-0D012 |
— | ||
|
31232A
|
31232A
31232-0D010
Clip, Release Bearing Hub
[10.2016 -] NSP15#..5F |
31232-0D010 |
— | ||
|
31234
|
31234
31234-52020
Spring, Release Fork Anti-Rattle
[04.2016 -] NSP150,151..5F..(B,C) |
31234-52020 |
— | ||
|
31236B
|
31236B
31236-0D020
Support, Release Fork
[04.2016 -] NSP150,151..5F..(B,C) |
31236-0D020 |
— | ||
|
31237
|
31237
31237-0D020
Boot, Clutch Release Fork Support
[04.2016 -] NSP150,151..5F..(B,C) |
31237-0D020 |
— | ||
|
31250
|
31250
31250-0D330
Disc Assy, Clutch
[04.2016 -] NSP151..5F |
31250-0D330 |
— | ||
|
90119T0102
|
90119T0102
90119-T0102
Bolt (For Transmission Control Cable Bracket)
|
90119-T0102 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
