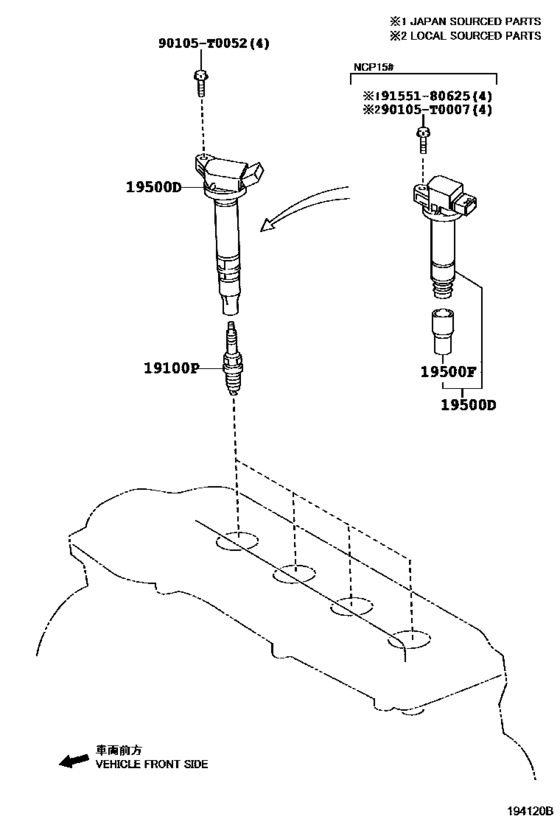

Ignition Coil & Spark Plug ([10.2013 - ] (1310- )) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- NSP151
- ENGINE
- 2NRFE
- TRANSMISSION
- MTM
- DESTINATION
- IDN
- CATEGORY
- C
- From
- 10.2016
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Model Mark
- R
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01275 Spark Plug (Denso SC16HR11 Iridium)[05.2016 -] 1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN SC16HR11,*264 |
90919-01275 |
from US $24.20 |
||
|
19500D
|
19500D
90919-T2010 Coil, Ignition, No.1[07.2016 -] 1NRFE,2NRFE,3NRFE..NSP15# *230 OR *432 |
90919-T2010 |
US $102.18 |
||
|
19500D
|
19500D
90919-T2011 Coil, Ignition, No.1[05.2016 -] 1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN *264 |
90919-T2011 |
US $101.52 |
||
|
90105T0007
|
90105T0007
90105-T0007 BOLT FLANGE |
90105-T0007 |
US $0.42 |
||
|
90105T0052
|
90105T0052
90105-T0052
New Genuine Part
|
90105-T0052 |
— | ||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.74 |
