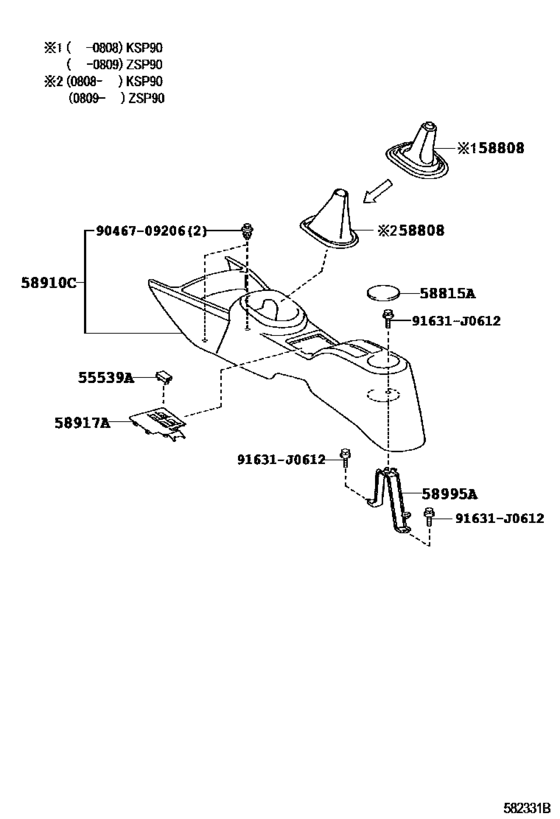

Console Box & Bracket ([08.2005 - ] (0508- )JPP) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- ZSP90
- grade
- TS
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- From
- 11.2006
- To
- 09.2008
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-52060-B0 Cover, Spare Switch Hole[11.2006 - 05.2007] ZSP90..JPP DK.GRAY,TRIM1# |
55539-52060-B0 |
US $4.80 |
||
|
55539A
|
55539A
55539-52070-B0 Cover, Spare Switch Hole[05.2007 -] KSP90..JPP..SOL DK.GRAY,TRIM18,19; ZSP90..JPP..5F DK.GRAY,TRIM1# |
55539-52070-B0 |
US $3.20 |
||
|
58808
|
58808
58808-52060-B1 Cover Sub-Assy, Shifting Hole[08.2005 -] KSP90..JPP..SOL DK.GRAY,TRIM18,19; KSP90,ZSP90..JPP..5F..(STD,TS) DK.GRAY,TRIM1# |
58808-52060-B1 |
US $33.90 |
||
|
58815A
|
58815A
58815-52050 Carpet, Console Box[08.2005 -] KSP90,ZSP90..JPP..5F |
58815-52050 |
US $3.84 |
||
|
58910C
|
58910C
58910-52090-B0
Box Assy, Console, Rear
[11.2006 -] ZSP90..JPP..5F DK.GRAY,TRIM1# |
58910-52090-B0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58910-52020-B0 Box Assy, Console, Rear[11.2006 -] ZSP90..JPP..5F DK.GRAY,TRIM1# |
58910-52020-B0 |
US $165.98 |
||
|
58917A
|
58917A
58917-52040-B0
Cover, Console Box, Rear
[08.2005 -] KSP90..JPP..SOL DK.GRAY,TRIM18,19; KSP90,ZSP90..JPP..5F..(STD,TS) DK.GRAY,TRIM1# |
58917-52040-B0 |
— | ||
| replacement | |||||
|
58917A
|
58917A
58917-52041-B0 Cover, Console Box, RearCONSOLE BOX, REAR [08.2005 -] KSP90..JPP..SOL DK.GRAY,TRIM18,19; KSP90,ZSP90..JPP..5F..(STD,TS) DK.GRAY,TRIM1# |
58917-52041-B0 |
US $15.20 |
||
|
58995A
|
58995A
58995-52010 Bracket, Console Box Mounting, No.1[08.2005 -] KSP90,ZSP90..JPP..5F |
58995-52010 |
US $14.71 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.49 |
||
