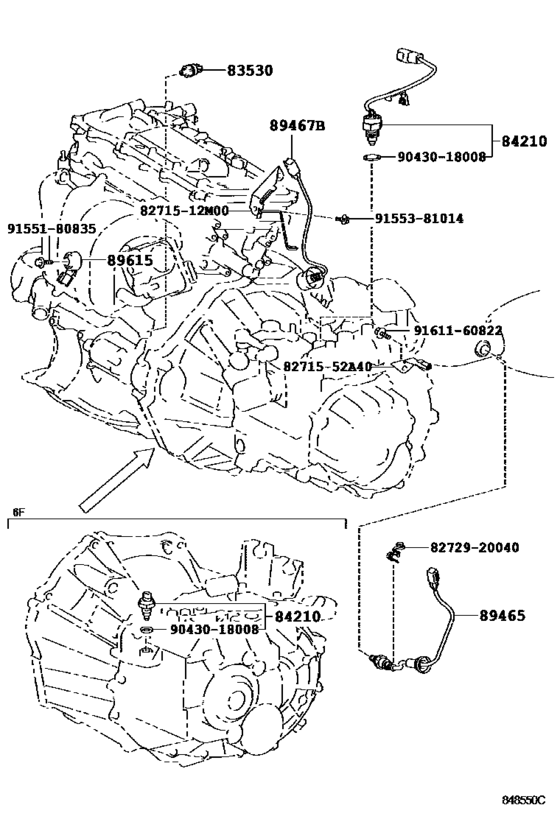

Switch & Relay & Computer ([11.2006 - ] ENGINE & TRANSMISSION (0611- )ZSP90..JPP) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- ZSP90
- grade
- TS
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- From
- 11.2006
- To
- 09.2008
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2005 -] KSP90,ZSP90..JPP..5F DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2005 -] KSP90,ZSP90..JPP..5F DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2005 -] KSP90,ZSP90..JPP..5F DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2005 -] KSP90,ZSP90..JPP..5F YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-52010 Switch Assy, Back-Up Lamp[11.2006 - 09.2008] ZSP90..JPP |
84210-52010 |
from US $22.80 |
||
|
89465
|
89465
89465-52450
Sensor, Oxygen
[11.2006 -] ZSP90..JPP..5F |
89465-52450 |
— | ||
|
89467B
|
89467B
89467-12030 Sensor, Oxygen[11.2006 -] ZSP90..JPP..5F |
89467-12030 |
US $190.08 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[11.2006 -] ZSP90..JPP..5F |
89615-20090 |
from US $36.02 |
||
|
8271512M00
|
8271512M00
82715-12M00
Bracket,wiring Harness Clamp
|
82715-12M00 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8272920040
|
8272920040
82729-20040 New Genuine Part |
82729-20040 |
US $2.91 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.84 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
