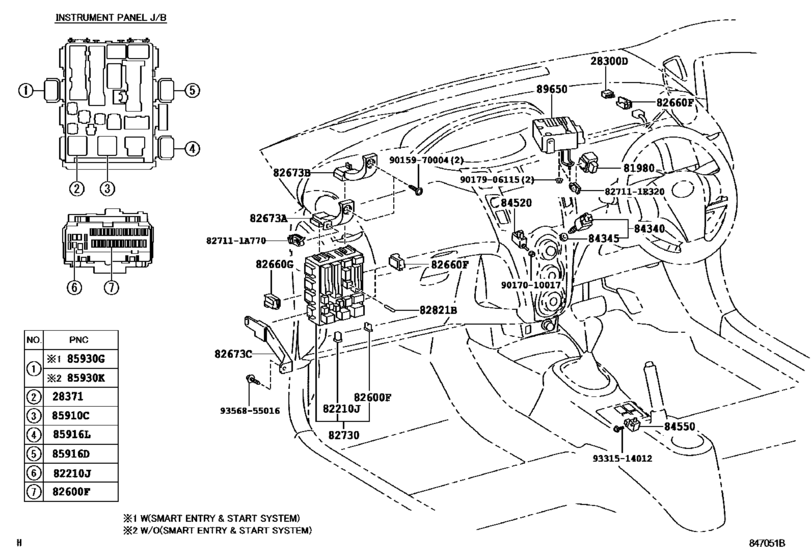

Switch & Relay & Computer ([08.2005 - ] COWL (0508-0808)JPP..RHD..STD ; (0508- )JPP..RHD.. 5F..SOL,TS) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- ZSP90
- grade
- TS
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- From
- 11.2006
- To
- 09.2008
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300D
|
28300D
90987-02027 Relay[11.2006 -] 2ZRFE..ZSP90..JPP..RHD..5F |
90987-02027 |
from US $44.54 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[09.2006 -] 1KRFE,2ZRFE..KSP90,ZSP90..JPP..5F |
90987-02030 |
from US $44.54 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[08.2005 -] KSP90,ZSP90..JPP..5F |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[08.2005 - 09.2008] KSP90,ZSP90..JPP 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2005 - 09.2008] KSP90,ZSP90..JPP 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[08.2005 - 09.2008] KSP90,ZSP90..JPP 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2005 - 09.2008] KSP90,ZSP90..JPP 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2005 - 09.2008] KSP90,ZSP90..JPP 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2005 - 09.2008] KSP90,ZSP90..JPP 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2005 - 09.2008] KSP90,ZSP90..JPP 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2005 - 09.2008] KSP90,ZSP90..JPP 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2005 - 09.2008] KSP90,ZSP90..JPP 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82660F
|
82660F
82660-52030 Block Assy, Relay[11.2006 - 09.2008] ZSP90..JPP..RHD |
82660-52030 |
US $5.82 |
||
|
82660G
|
82660G
82660-52030 Block Assy, Relay[11.2006 - 09.2008] ZSP90..JPP..RHD |
82660-52030 |
US $5.82 |
||
|
82673A
|
82673A
82673-52080 Bracket, Junction Block[08.2005 - 09.2008] KSP90,ZSP90..JPP..RHD |
82673-52080 |
US $15.87 |
||
|
82673B
|
82673B
82673-52090 Bracket, Junction Block[08.2005 - 09.2008] KSP90,ZSP90..JPP..RHD |
82673-52090 |
US $14.85 |
||
|
82673C
|
82673C
82673-52100 Bracket, Junction Block[08.2005 - 09.2008] KSP90,ZSP90..JPP..RHD |
82673-52100 |
US $9.61 |
||
|
82730
|
82730
82730-52E00
Block Assy, Instrument Panel Junction
[11.2006 - 09.2008] ZSP90..JPP..RHD |
82730-52E00 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-52E01
Block Assy, Instrument Panel Junction
[11.2006 - 09.2008] ZSP90..JPP..RHD |
82730-52E01 |
— | ||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[08.2005 -] KSP90,ZSP90..JPP..5F |
84340-69025 |
from US $26.56 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[08.2005 -] KSP90,ZSP90..JPP..5F |
84345-51010 |
from US $3.52 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[08.2005 - 09.2008] KSP90,ZSP90..JPP |
84520-42010 |
from US $34.35 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[08.2005 - 09.2008] KSP90,ZSP90..JPP |
84550-33010 |
from US $18.39 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.2005 -] KSP90,ZSP90..JPP..5F; KSP90,ZSP90..JPP..5F..(SOL,TS) AIR CONDITIONER-AUTO(B/PWM COMP/VARI) |
90987-04010 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2006 -] ZSP90..JPP..5F |
90987-02027 |
from US $44.54 |
||
|
85916L
|
85916L
90987-02027 Relay[08.2005 -] KSP90,ZSP90..JPP..5F |
90987-02027 |
from US $44.54 |
||
|
85930G
|
85930G
90987-02027 Relay[11.2006 -] ZSP90..JPP..RHD..5F |
90987-02027 |
from US $44.54 |
||
|
89650
|
89650
89650-52290
Computer Assy, Power Steering
[11.2006 -] ZSP90..JPP..RHD..5F |
89650-52290 |
— | ||
|
827111A770
|
827111A770
82711-1A770 Clamp, Wiring Harness |
82711-1A770 |
US $1.44 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
