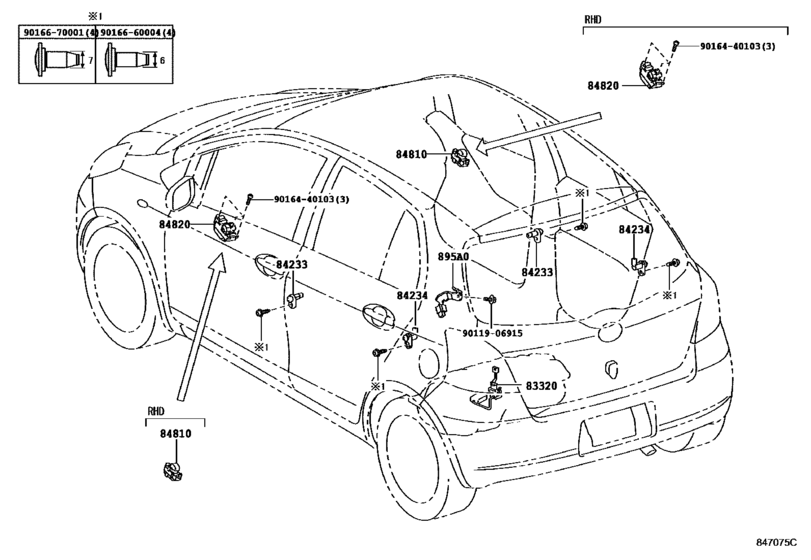

Switch & Relay & Computer ([08.2005 - ] DOOR,ROOF,FLOOR,SEAT & LAGGAGE (0508- )JPP) Diagram Toyota YARIS/ ECHO/ VIOS/ LIMO
- Year
- 2006 - 2008
- Sales region
- Europe
- Frame
- ZSP90
- grade
- TS
- ENGINE
- 2ZRFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- From
- 11.2006
- To
- 09.2008
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-52181 Gage Assy, Fuel Sender[07.2006 - 09.2008] KSP90,ZSP90..JPP |
83320-52181 |
US $61.59 |
||
| replacement | |||||
|
83320
|
83320
83320-52261 Gage Assy, Fuel Sender[07.2006 - 09.2008] KSP90,ZSP90..JPP |
83320-52261 |
from US $63.38 |
||
|
84233
|
84233
84231-52010 Switch Assy, Courtesy Lamp (For Front Door)[08.2005 -] KSP90,ZSP90..JPP..5F |
84231-52010 |
US $10.56 |
||
|
84810
|
84810
84810-52030 Switch Assy, Power Window Regulator[08.2005 -] KSP90,ZSP90..JPP..5F..(SOL,TS) |
84810-52030 |
from US $37.54 |
||
|
84820
|
84820
84820-52320
Master Switch Assy, Power Window Regulator
[11.2006 -] ZSP90..JPP..RHD..5F |
84820-52320 |
— | ||
| replacement | |||||
|
84820
|
84820
84820-12500
Master Switch Assy, Power Window Regulator
[11.2006 -] ZSP90..JPP..RHD..5F |
84820-12500 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016660004
|
9016660004
90166-60004 New Genuine Part |
90166-60004 |
US $0.96 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
