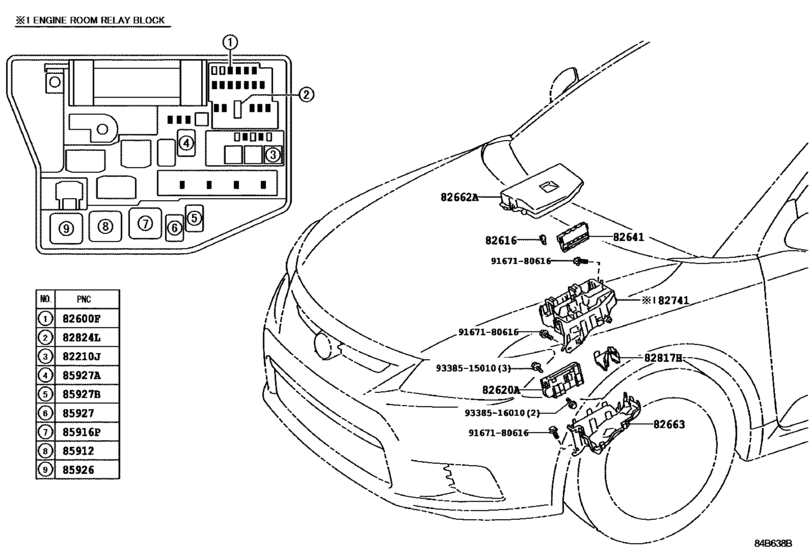

Switch & Relay & Computer ([08.2010 - ] ENGINE ROOM (1008- )) Diagram Toyota ZELAS
- Year
- 2011 - 2014
- Sales region
- General
- Frame
- AGT20
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 02.2011
- To
- 05.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- ZELAS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08283 Fusible Link[08.2010 - 06.2013] AGT20 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[08.2010 - 06.2013] AGT20 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[12.2013 - 07.2016] AGT20 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[08.2010 - 06.2013] AGT20 5A,MINI FUSE |
90982-09019 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2010 - 06.2013] AGT20 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2010 - 06.2013] AGT20 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2010 - 06.2013] AGT20 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2010 - 06.2013] AGT20 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2010 - 06.2013] AGT20 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2010 - 06.2013] AGT20 |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-12280 Block Assy, Fusible Link[08.2010 - 06.2013] AGT20 |
82620-12280 |
US $30.55 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[08.2010 - 06.2013] AGT20 |
82641-47020 |
from US $79.92 |
||
|
82662A
|
82662A
82662-21070
Cover, Relay Block, Upper, No.1
[02.2011 - 06.2013] AGT20..CHI |
82662-21070 |
— | ||
|
82662A
|
82662A
82662-21071
Cover, Relay Block, Upper, No.1
[06.2013 - 05.2014] AGT20..CHI |
82662-21071 |
— | ||
|
82663
|
82663
82663-21020
Cover, Relay Block, Lower
[08.2010 - 06.2013] AGT20 |
82663-21020 |
— | ||
|
82741
|
82741
82741-21040
Block, Engine Room Relay
[08.2010 - 06.2013] AGT20 |
82741-21040 |
— | ||
|
82817H
|
82817H
82817-12A80 Protector, Wiring Harness[08.2010 - 06.2013] AGT20 |
82817-12A80 |
US $10.34 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[08.2010 - 06.2013] AGT20 |
82824-20140 |
US $3.32 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[08.2010 - 06.2013] AGT20 |
90987-04010 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2010 - 06.2013] AGT20 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[08.2010 - 06.2013] AGT20 |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[08.2010 - 06.2013] AGT20 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[08.2010 - 06.2013] AGT20 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[08.2010 - 06.2013] AGT20 |
90987-02027 |
from US $44.54 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.66 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9338516010
|
9338516010
93385-16010 New Genuine Part |
93385-16010 |
US $1.76 |
