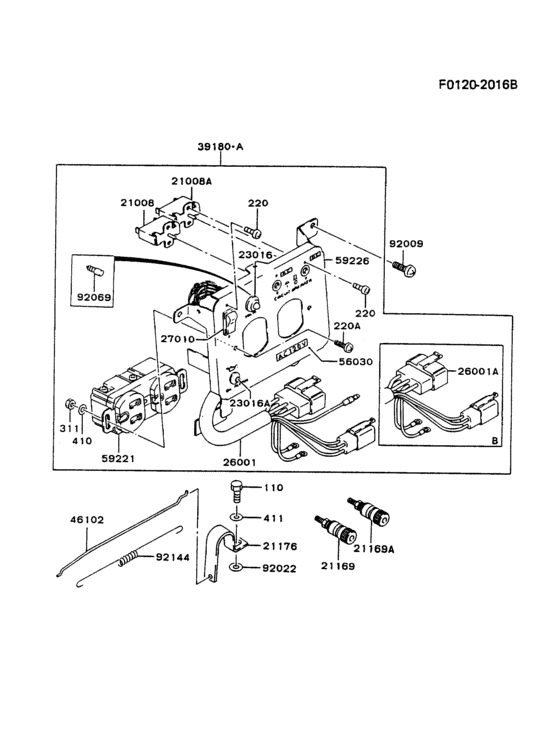

Control-panel Diagram Kawasaki GA550A
- Engine Capacity
- 550
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110R0508 BOLT (5X8) |
110R0508 |
US $0.63 |
||
|
220
|
220
220C0308
SCREW-PAN-CROS
|
220C0308 |
— | ||
| replacement | |||||
|
220
|
220
220AB0308 SCREW-PAN-CROS |
220AB0308 |
from US $0.74 |
||
|
220A
|
220A
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220A
|
220A
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.82 |
||
|
411
|
411
411B0500
W-PLAIN-S
|
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MM |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
21008
|
21008
21008-2153 BREAKER (AC4.5) |
21008-2153 |
US $46.06 |
||
|
21008A
|
21008A
27010-2005 BREAKER |
27010-2005 |
US $54.18 |
||
|
21169
|
21169
21169-2056 TERMINAL |
21169-2056 |
US $12.92 |
||
|
21169A
|
21169A
21169-2058 TERMINAL (+) |
21169-2058 |
US $13.10 |
||
|
21176
|
21176
21176-2071 SENSOR |
21176-2071 |
US $16.63 |
||
|
23016
|
23016
23016-2058 LAMP ASSY |
23016-2058 |
US $14.09 |
||
|
23016A
|
23016A
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
23016A
|
23016A
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
26001
|
26001
26001-2281 HARNESS |
26001-2281 |
US $29.57 |
||
|
27010
|
27010
27010-2091
SWITCH
|
27010-2091 |
— | ||
|
39180
|
39180
39180-2427 CONTROL PANEL ASSY |
39180-2427 |
US $318.47 |
||
|
46102
|
46102
46102-2060 ROD |
46102-2060 |
US $10.70 |
||
|
56030
|
56030
56030-2257 LABEL |
56030-2257 |
US $16.61 |
||
|
59221
|
59221
59221-2094 CONNECTOR-CORD |
59221-2094 |
US $34.69 |
||
|
59226
|
59226
59226-2187 PANEL-CONTROL |
59226-2187 |
US $42.57 |
||
|
92009
|
92009
92009-2203 SCREW |
92009-2203 |
US $1.35 |
||
|
92022
|
92022
92022-2228 WASHER |
92022-2228 |
US $3.35 |
||
|
92069
|
92069
92069-2052 BULB |
92069-2052 |
US $6.64 |
||
|
92144
|
92144
92144-2001 SPRING-ROD |
92144-2001 |
US $3.22 |
||
