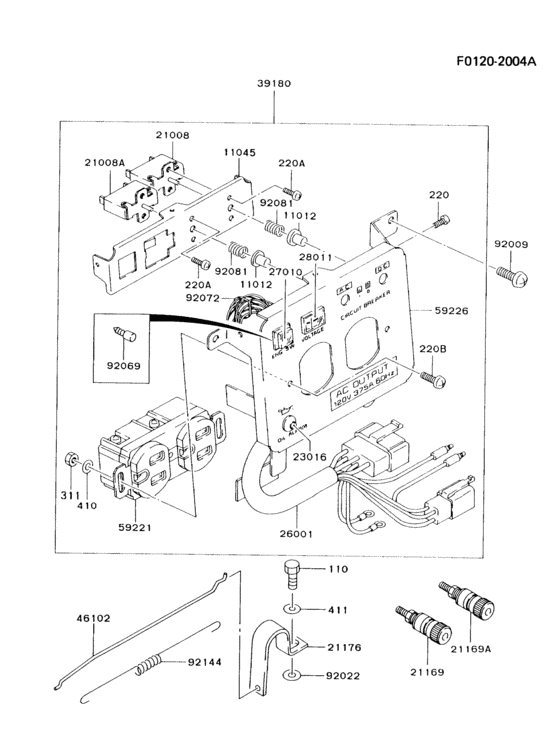

Control-panel Diagram Kawasaki GD550A
- Engine Capacity
- 550
- Sales region
- General
- Colour
- None (NON)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110R0508 BOLT (5X8) |
110R0508 |
US $0.63 |
||
|
220
|
220
220B0306
SCREW-PAN-CROS,3X6
|
220B0306 |
— | ||
| replacement | |||||
|
220
|
220
220AA0306 SCREW-PAN-CROS,3X6 |
220AA0306 |
from US $0.78 |
||
|
220A
|
220A
220B0308
SCREW PAN HEAD 3X8
|
220B0308 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0308 SCREW-PAN-CROS |
220AA0308 |
from US $0.79 |
||
|
220B
|
220B
220C0410 SCREW-PAN-CROS |
220C0410 |
US $0.45 |
||
| replacement | |||||
|
220B
|
220B
220AB0410 SCREW-PAN-CROS |
220AB0410 |
from US $0.40 |
||
|
311
|
311
311B0400
NUT-HEX
|
311B0400 |
— | ||
| replacement | |||||
|
311
|
311
311AA0400 NUT-HEX |
311AA0400 |
from US $0.85 |
||
|
410
|
410
410B0400
W-PLAIN-S
|
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-S |
410AA0400 |
from US $0.82 |
||
|
411
|
411
411B0500
W-PLAIN-S
|
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MM |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
11012
|
11012
11012-2201 CAP |
11012-2201 |
US $2.45 |
||
|
11045
|
11045
11045-2001 BRACKET |
11045-2001 |
US $8.10 |
||
|
21008
|
21008
21008-2112 BREAKER (DC10A) |
21008-2112 |
US $54.23 |
||
|
21008A
|
21008A
21008-2121 BREAKER |
21008-2121 |
US $39.89 |
||
|
21169
|
21169
21169-2056 TERMINAL |
21169-2056 |
US $12.92 |
||
|
21169A
|
21169A
21169-2058 TERMINAL (+) |
21169-2058 |
US $13.10 |
||
|
21176
|
21176
21176-2071 SENSOR |
21176-2071 |
US $16.63 |
||
|
23016
|
23016
23016-2055 LAMP-ASSY |
23016-2055 |
US $19.96 |
||
| replacement | |||||
|
23016
|
23016
23016-2063 LAMP-ASSY |
23016-2063 |
US $19.96 |
||
|
26001
|
26001
26001-2193 HARNESS |
26001-2193 |
US $29.57 |
||
|
27010
|
27010
27010-2129
SWITCH
|
27010-2129 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-2208
SWITCH
|
27010-2208 |
— | ||
|
28011
|
28011
28011-2057 METER |
28011-2057 |
US $61.61 |
||
|
39180
|
39180
39180-2280 CONTROL PANEL ASSEMBL |
39180-2280 |
US $327.96 |
||
|
46102
|
46102
46102-2060 ROD |
46102-2060 |
US $10.70 |
||
|
59221
|
59221
59221-2094 CONNECTOR-CORD |
59221-2094 |
US $34.69 |
||
|
59226
|
59226
59226-2147 PANEL, CONTROL |
59226-2147 |
US $42.57 |
||
|
92009
|
92009
92009-2203 SCREW |
92009-2203 |
US $1.35 |
||
|
92022
|
92022
92022-2228 WASHER |
92022-2228 |
US $3.35 |
||
|
92069
|
92069
92069-2051 BULB |
92069-2051 |
US $10.60 |
||
|
92072
|
92072
92072-2001 Band |
92072-2001 |
US $2.35 |
||
| replacement | |||||
|
92072
|
92072
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92081
|
92081
92081-2329 SPRING |
92081-2329 |
US $0.40 |
||
|
92144
|
92144
92144-2001 SPRING-ROD |
92144-2001 |
US $3.22 |
||
