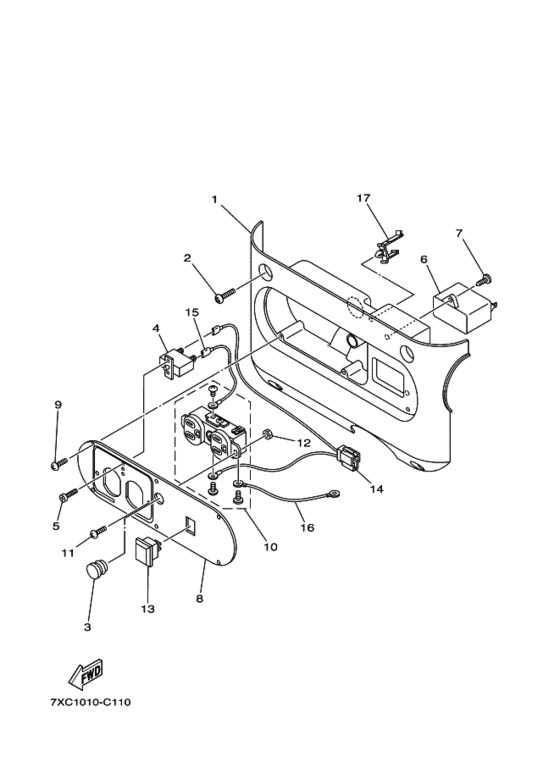

ｺﾝﾄﾛｰﾙﾎﾞﾂｸｽ 1 Diagram Yamaha EF7H
- Model code
- EF7H
- Year
- 2004
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7XC-H7211-10-00 Box, Controlボツクス，コントロール; |
7XC-H7211-10-00 |
US $34.14 |
||
|
2
|
2
90157-06809-00 Screw, Pan Head |
90157-06809-00 |
US $1.21 |
||
|
3
|
3
7XC-E1935-00-00 Plug,blind |
7XC-E1935-00-00 |
US $1.28 |
||
|
4
|
4
7XC-82181-00-00 Circuit Breaker Compサーキツトブレーカコンプリート; ＵＲ ＡＣ１２５Ｖ ７．２Ａ |
7XC-82181-00-00 |
US $14.59 |
||
|
4
|
4
7XC-82181-10-00 Circuit Breaker Compサーキツトブレーカコンプリート; ＵＲ ＡＣ１２５Ｖ ６．１Ａ |
7XC-82181-10-00 |
US $16.29 |
||
|
5
|
5
98507-03006-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-03006-00 |
from US $1.56 |
||
|
6
|
6
7XD-H7107-00-00 Condenser Assy |
7XD-H7107-00-00 |
US $22.95 |
||
|
7
|
7
97707-40016-00 Screw, Tappingスクリユ，タツピング; |
97707-40016-00 |
from US $1.42 |
||
|
8
|
8
7XC-H7249-01-00 Plateプレート; ＵＲ ６０ＨＺ−７．１Ａ |
7XC-H7249-01-00 |
US $10.06 |
||
|
8
|
8
7XC-H7249-11-00 Plateプレート; ＵＲ ５０ＨＺ−６．１Ａ |
7XC-H7249-11-00 |
US $10.06 |
||
|
9
|
9
977-07405-12-00
Screw, Pan Tap.2
スクリユ，タツピング; |
977-07405-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97707-40612-00 Screw, Tappingスクリユ，タツピング; |
97707-40612-00 |
from US $1.56 |
||
|
10
|
10
7G5-87221-01-00 Receptacle 1(Wcz 1303 9N)コンセント １ ; ＷＣＺ １３０３ ９Ｎ |
7G5-87221-01-00 |
from US $24.23 |
||
| replacement | |||||
|
10
|
10
7N7-87221-00-00 Consentコンセント １ ; ＷＣＺ １３０３ ９Ｎ |
7N7-87221-00-00 |
from US $24.23 |
||
|
11
|
11
98507-04012-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
98517-04012-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-04012-00 |
from US $1.07 |
||
|
12
|
12
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.39 |
||
|
13
|
13
7XC-H2550-10-00 Engine Stop Switch Assy |
7XC-H2550-10-00 |
from US $6.32 |
||
| replacements | |||||
|
13
|
13
7C3-H2550-10-00
Engine Stop Switch Assy
|
7C3-H2550-10-00 |
— | ||
|
13
|
13
7XX-82550-02-00 Stop Switch Assy |
7XX-82550-02-00 |
from US $6.30 |
||
|
14
|
14
7XC-H7223-10-00 Wire, Lead 1ワイヤ，リード １; Ｇ／ＥＸブレーカー |
7XC-H7223-10-00 |
US $6.09 |
||
|
15
|
15
7XC-H7224-10-00 Wire, Lead 2ワイヤ，リード ２; ブレーカーＸコンセント |
7XC-H7224-10-00 |
US $2.54 |
||
|
16
|
16
7XC-H7225-00-00 Wire, Lead 3ワイヤ，リード ３; アース |
7XC-H7225-00-00 |
US $2.55 |
||
|
17
|
17
90464-07801-00 Clamp |
90464-07801-00 |
US $1.35 |
||
