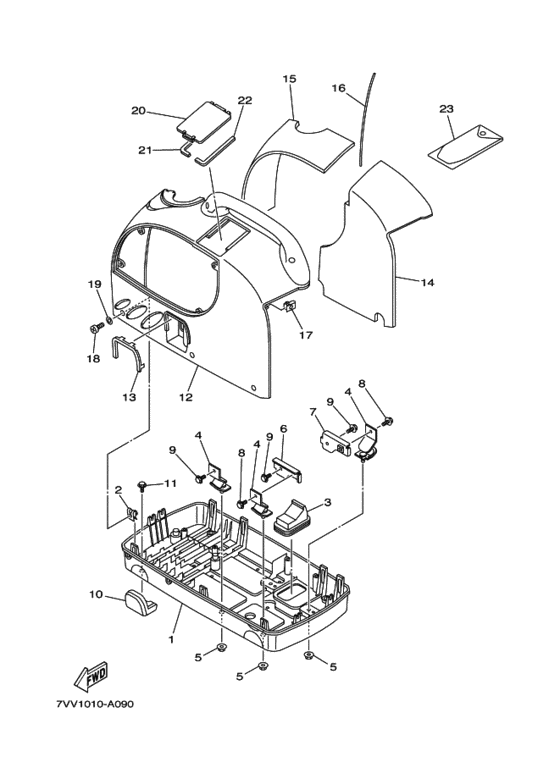

Frame Diagram Yamaha EF900IS/EF9HIS
- Model code
- EF900IS/EF9HIS
- Year
- 2002
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 3 (PBS3; 0714)
- Color Variant
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7VV-22881-00-00 Base, Mountingベース，マウンテイング; 参照; 〜7VV-101348 |
7VV-22881-00-00 |
from US $48.49 |
||
|
1
|
1
7VV-22881-01-00 Base, Mountingベース，マウンテイング; 参照; 7VV-101349〜 |
7VV-22881-01-00 |
from US $48.49 |
||
|
2
|
2
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
2
|
2
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $2.08 |
||
|
3
|
3
7VV-67617-00-00 Joint, Drainジヨイント，ドレン; |
7VV-67617-00-00 |
from US $5.38 |
||
|
4
|
4
7VV-22891-00-00 Insulator, Mountingインシユレータ，マウンテイング; |
7VV-22891-00-00 |
from US $18.28 |
||
|
5
|
5
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
6
|
6
7VV-11011-00-00 Bracket, Engine 1 |
7VV-11011-00-00 |
from US $8.50 |
||
|
7
|
7
7VV-11012-00-00 Bracket, Engine 2 |
7VV-11012-00-00 |
from US $8.50 |
||
|
8
|
8
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.66 |
||
|
9
|
9
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
10
|
10
7VV-22895-00-00 Insulator, Mountingインシユレータ，マウンテイング; |
7VV-22895-00-00 |
from US $11.90 |
||
| replacement | |||||
|
10
|
10
7CG-22895-C1-00 COVER ASSY SETインシユレータ，マウンテイング; |
7CG-22895-C1-00 |
from US $9.70 |
||
|
11
|
11
90105-05002-00 Bolt, Flangeボルト，フランジ; |
90105-05002-00 |
from US $1.70 |
||
|
12
|
12
7VV-22865-00-00 Cover Assy Setカバー，フロント; |
7VV-22865-00-00 |
from US $78.75 |
||
| replacement | |||||
|
12
|
12
999-99040-16-00 elementカバー，フロント; |
999-99040-16-00 |
from US $66.55 |
||
|
13
|
13
7VV-22825-00-00 Protector 1 |
7VV-22825-00-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
7VV-22825-01-00 Protector 1 |
7VV-22825-01-00 |
from US $3.26 |
||
|
14
|
14
7VV-22875-00-00 Seal 3シール ３; |
7VV-22875-00-00 |
from US $14.25 |
||
|
15
|
15
7VV-22876-00-00 Seal 4シール ４; |
7VV-22876-00-00 |
from US $10.87 |
||
|
16
|
16
7VV-23383-00-00 Cover, Dust Seal 1カバー，ダストシール １; |
7VV-23383-00-00 |
from US $1.42 |
||
|
17
|
17
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $3.33 |
||
|
18
|
18
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
19
|
19
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
7VV-22855-00-00 Cover Assy 3カバー ２; |
7VV-22855-00-00 |
from US $11.09 |
||
| replacement | |||||
|
20
|
20
7VV-228C0-00-00 Cover Assy 3カバー ２; |
7VV-228C0-00-00 |
from US $11.49 |
||
|
21
|
21
7VV-22886-00-00 Seal 9シール ９; |
7VV-22886-00-00 |
from US $1.28 |
||
|
22
|
22
7VV-22887-00-00 Seal 10 |
7VV-22887-00-00 |
from US $1.28 |
||
|
23
|
23
7VV-28100-00-00 Tool Kitツールキツト; |
7VV-28100-00-00 |
from US $15.02 |
||
