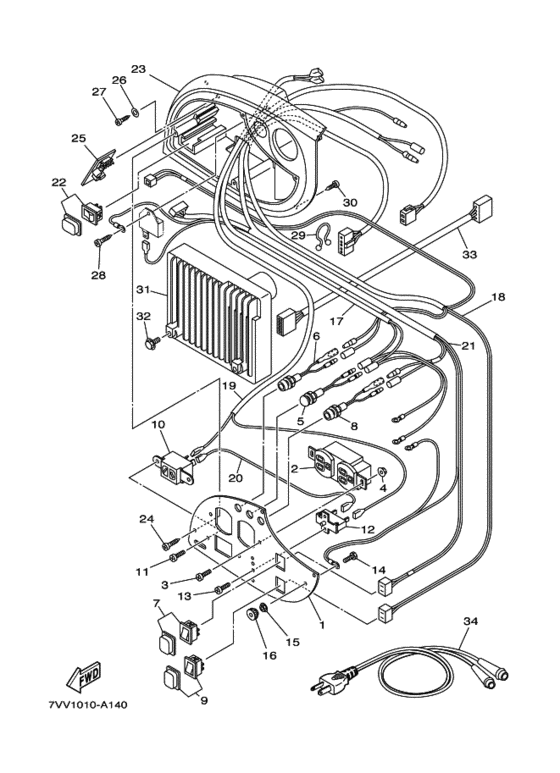

ｺﾝﾄﾛｰﾙﾎﾞﾂｸｽ Diagram Yamaha EF900IS/EF9HIS
- Model code
- EF900IS/EF9HIS
- Year
- 2002
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 3 (PBS3; 0714)
- Color Variant
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7VV-87249-00-00 Plateプレート; |
7VV-87249-00-00 |
US $36.89 |
||
|
2
|
2
7G5-87221-01-00 Receptacle 1(Wcz 1303 9N)コンセント １ ; ＷＣＺ １３０３ ９Ｎ; 松下電工 |
7G5-87221-01-00 |
from US $24.23 |
||
| replacement | |||||
|
2
|
2
7N7-87221-00-00 Consentコンセント １ ; ＷＣＺ １３０３ ９Ｎ; 松下電工 |
7N7-87221-00-00 |
from US $24.23 |
||
|
3
|
3
98507-04012-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
98517-04012-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-04012-00 |
from US $1.07 |
||
|
4
|
4
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.39 |
||
|
5
|
5
7NJ-83530-00-00 Pilot Light Assyパイロツトライトアセンブリ; |
7NJ-83530-00-00 |
from US $25.64 |
||
| replacements | |||||
|
5
|
5
7NJ-83530-80-00 Pilot Light Assyパイロツトライトアセンブリ; |
7NJ-83530-80-00 |
from US $25.64 |
||
|
5
|
5
7CF-83530-C0-00 Pilot Light Assyパイロツトライトアセンブリ; |
7CF-83530-C0-00 |
from US $25.64 |
||
|
6
|
6
7VU-83582-00-00 Pilot Light Assy |
7VU-83582-00-00 |
from US $11.16 |
||
| replacement | |||||
|
6
|
6
7CH-83582-C1-00 Pilot Light Assy |
7CH-83582-C1-00 |
from US $12.33 |
||
|
7
|
7
7NJ-82550-00-00 Engine Stop Switch Assyエンジンストツプスイツチアセンブリ; |
7NJ-82550-00-00 |
from US $7.83 |
||
|
8
|
8
7VU-83582-00-00 Pilot Light Assy |
7VU-83582-00-00 |
from US $11.16 |
||
| replacement | |||||
|
8
|
8
7CH-83582-C1-00 Pilot Light Assy |
7CH-83582-C1-00 |
from US $12.33 |
||
|
9
|
9
7NJ-82550-00-00 Engine Stop Switch Assyエンジンストツプスイツチアセンブリ; エコノミースイツチ |
7NJ-82550-00-00 |
from US $7.83 |
||
|
10
|
10
7LG-87239-00-00 Receptacle Comp. (Dc 24V-12A)レセプタクルコンプリート ; １２Ａ ２４Ｖ ＤＣ; 日本ロック |
7LG-87239-00-00 |
from US $17.28 |
||
|
11
|
11
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
12
|
12
7VV-82181-00-00 Circuit Breaker Comp. (8A)サーキツトブレーカコンプリート ; ８Ａ; ホシデン |
7VV-82181-00-00 |
from US $15.30 |
||
|
13
|
13
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
14
|
14
90101-05563-00 Bolt |
90101-05563-00 |
from US $1.70 |
||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
16
|
16
90170-05309-00 Nut, Hexagon |
90170-05309-00 |
from US $1.67 |
||
|
17
|
17
7VV-8722W-00-00 Wire, Lead 6ワイヤ，リード ６; |
7VV-8722W-00-00 |
from US $12.18 |
||
| replacement | |||||
|
17
|
17
7CG-8722W-00-00 Wire, Lead 6ワイヤ，リード ６; |
7CG-8722W-00-00 |
from US $11.76 |
||
|
18
|
18
7VV-8722X-00-00 Wire, Lead 5ワイヤ，リード ５; |
7VV-8722X-00-00 |
US $18.42 |
||
|
19
|
19
7VV-87224-00-00 Wire, Lead 2ワイヤ，リード ２; |
7VV-87224-00-00 |
from US $6.94 |
||
| replacement | |||||
|
19
|
19
7CG-87224-00-00 Wire, Lead 2ワイヤ，リード ２; |
7CG-87224-00-00 |
from US $6.94 |
||
|
20
|
20
7VV-87223-00-00 Wire, Lead 1ワイヤ，リード １; |
7VV-87223-00-00 |
from US $2.55 |
||
|
21
|
21
7VV-82507-00-00 Wire, Leadワイヤ，リード; |
7VV-82507-00-00 |
from US $35.92 |
||
| replacement | |||||
|
21
|
21
7CG-82507-00-00 Wire, Leadワイヤ，リード; |
7CG-82507-00-00 |
from US $35.92 |
||
|
22
|
22
7VU-82617-00-00 Switch |
7VU-82617-00-00 |
US $4.53 |
||
|
23
|
23
7VV-87213-00-00 Cover, Control Boxカバー，コントロールボツクス; |
7VV-87213-00-00 |
from US $12.33 |
||
|
24
|
24
977-07405-12-00
Screw, Pan Tap.2
スクリユ，タツピング; |
977-07405-12-00 |
— | ||
| replacement | |||||
|
24
|
24
97707-40612-00 Screw, Tappingスクリユ，タツピング; |
97707-40612-00 |
from US $1.56 |
||
|
25
|
25
7VV-85680-00-00 Speed Limiter Assy |
7VV-85680-00-00 |
from US $117.44 |
||
| replacements | |||||
|
25
|
25
7CG-85680-01-00 WIRE, LEAD 6 |
7CG-85680-01-00 |
from US $95.38 |
||
|
25
|
25
7CG-85680-C0-00 Speed Limiter Assy |
7CG-85680-C0-00 |
US $213.95 |
||
|
25
|
25
7CG-85680-C1-00 Speed Limiter Assy |
7CG-85680-C1-00 |
US $248.17 |
||
|
25
|
25
7CG-85680-C1-00 Speed Limiter Assy |
7CG-85680-C1-00 |
US $248.17 |
||
|
26
|
26
90201-03013-00 Washer, Plateワツシヤ，プレート; |
90201-03013-00 |
from US $2.13 |
||
| replacement | |||||
|
26
|
26
90201-03644-00 Washer, Plateワツシヤ，プレート; |
90201-03644-00 |
from US $2 |
||
|
27
|
27
97707-30512-00 Screw, Tappingスクリユ，タツピング; |
97707-30512-00 |
from US $1.56 |
||
|
28
|
28
977-07405-12-00
Screw, Pan Tap.2
スクリユ，タツピング; |
977-07405-12-00 |
— | ||
| replacement | |||||
|
28
|
28
97707-40612-00 Screw, Tappingスクリユ，タツピング; |
97707-40612-00 |
from US $1.56 |
||
|
29
|
29
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
30
|
30
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
30
|
30
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
31
|
31
7VV-8A210-00-00 Control Unit参照; 〜7VV-101348 |
7VV-8A210-00-00 |
US $988.68 |
||
|
31
|
31
7VV-8A210-01-00 Control Unit参照; 7VV-101349〜 |
7VV-8A210-01-00 |
US $988.68 |
||
|
32
|
32
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
32
|
32
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
33
|
33
7VV-82509-00-00 Wire, Sub Leadワイヤ，サブリード; |
7VV-82509-00-00 |
from US $12.61 |
||
|
34
|
34
7LG-87209-00-00 Charge Cord Assyチヤージコードアセンブリ; ＥＦ９ＨｉＳヨウ |
7LG-87209-00-00 |
from US $19.41 |
||
| replacement | |||||
|
34
|
34
7CG-87209-C0-00 CHARGE CORD ASSYチヤージコードアセンブリ; ＥＦ９ＨｉＳヨウ |
7CG-87209-C0-00 |
from US $19.41 |
||
