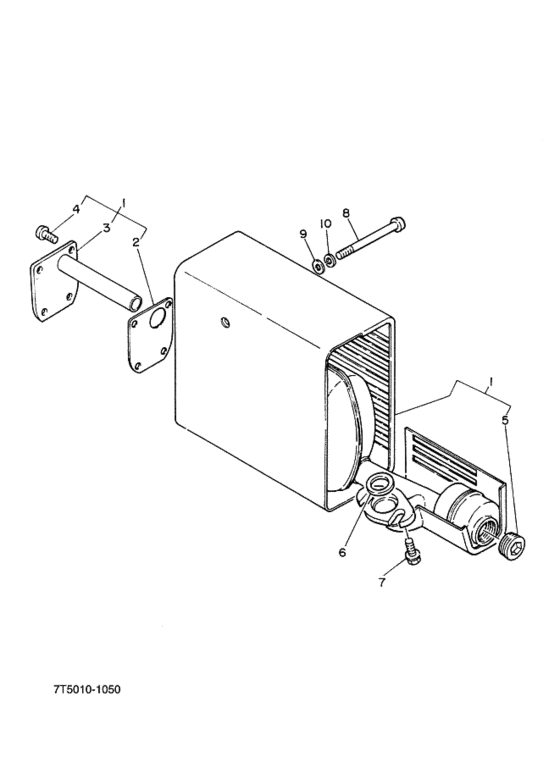

Exhaust Diagram Yamaha ET800
- Model code
- ET800
- Year
- 1981
- Sales region
- Japan (010)
- Colour
- Naiad Blue (NAB; 0086)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7T5-14710-00-00
Muffler Assy 1
マフラコンプリート; |
7T5-14710-00-00 |
— | ||
|
2
|
2
7N2-14714-00-00 Gasket, Muffler．ガスケツト，マフラ; |
7N2-14714-00-00 |
US $10.47 |
||
|
3
|
3
7N2-14746-00-00
Pipe, Muffler Tail
．パイプ，マフラジヨイント; |
7N2-14746-00-00 |
— | ||
|
4
|
4
901-53060-29-00
Screw, Tapping
．スクリユ，クロスリセスヘキサゴン; |
901-53060-29-00 |
— | ||
| replacement | |||||
|
4
|
4
90163-06002-00 Screw, Tapping．スクリユ，クロスリセスヘキサゴン; |
90163-06002-00 |
from US $4.25 |
||
|
5
|
5
90344-54012-00 Plug, Taper Screw．プラグ，テーパスクリユ; |
90344-54012-00 |
US $3.83 |
||
|
6
|
6
2E9-14613-00-00 Gasket, Exhaust Pipeガスケツト，エキゾースト; |
2E9-14613-00-00 |
from US $8.35 |
||
| replacement | |||||
|
6
|
6
2E9-14613-10-00 Gasket, Exst Pipeガスケツト，エキゾースト; |
2E9-14613-10-00 |
from US $10.19 |
||
|
7
|
7
90149-06113-00 Screw, Hexagonボルト，フランジ; |
90149-06113-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
90153-06061-00 Screw, Hexagonボルト，フランジ; |
90153-06061-00 |
from US $1.84 |
||
|
8
|
8
92502-06070-00 Screw, Pan Head |
92502-06070-00 |
US $6.52 |
||
| replacement | |||||
|
8
|
8
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
9
|
9
92902-06600-00 Washer, Plateワツシヤ，プレート; |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
