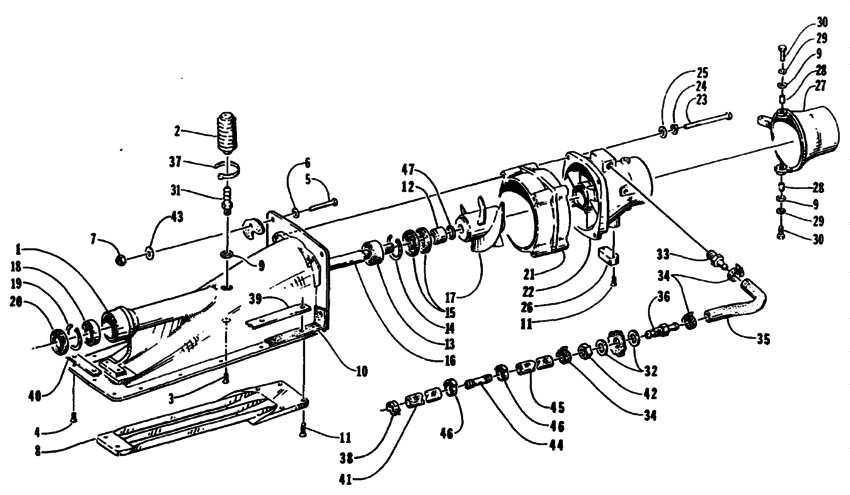

Impeller drive assembly Diagram Arctic Cat MONTEGO
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0673-125 InletPump |
0673-125 |
US $1,391.53 |
||
| replacement | |||||
|
1
|
1
0773-357 InletPump-w/fitting |
0773-357 |
US $1,391.53 |
||
|
2
|
2
3008-100
Bladder
|
3008-100 |
— | ||
|
3
|
3
0624-091 ScrewMachine |
0624-091 |
US $5.20 |
||
|
4
|
4
0624-186
Screw
|
0624-186 |
— | ||
|
5
|
5
0624-007 ScrewCap |
0624-007 |
US $21.08 |
||
|
6
|
6
0624-008 WasherFlat |
0624-008 |
US $4.46 |
||
|
7
|
7
0624-009 NutThin; lock |
0624-009 |
US $4.32 |
||
|
8
|
8
0673-262 GrateInlet |
0673-262 |
US $124.08 |
||
|
9
|
9
0624-106 Washer |
0624-106 |
US $4.99 |
||
|
10
|
10
0612-370 SealPump inlet |
0612-370 |
US $34.84 |
||
|
11
|
11
0624-183 ScrewMachine |
0624-183 |
US $8.64 |
||
|
12
|
12
0673-256 SpacerImpeller |
0673-256 |
US $75.95 |
||
|
13
|
13
0673-032 Bearing |
0673-032 |
US $158.46 |
||
|
14
|
14
0624-044 Washer |
0624-044 |
US $35.66 |
||
|
15
|
15
0673-033 Seal |
0673-033 |
US $49.88 |
||
|
16
|
16
0673-152 Driveshaft |
0673-152 |
US $229.73 |
||
| replacement | |||||
|
16
|
16
0673-363 Driveshaft |
0673-363 |
US $229.73 |
||
|
17
|
17
0673-263 Impeller |
0673-263 |
US $305.31 |
||
| replacement | |||||
|
17
|
17
1773-043 ImpellerRepl.0673-263 al; ss-16.5 |
1773-043 |
US $314.75 |
||
|
18
|
18
0673-030
Bearing
|
0673-030 |
— | ||
|
19
|
19
0624-043 RingSnap |
0624-043 |
US $27.62 |
||
|
20
|
20
0673-031 Seal |
0673-031 |
US $40.04 |
||
|
21
|
21
0673-231 RingWear |
0673-231 |
US $905.15 |
||
| replacement | |||||
|
21
|
21
0673-126 RingWear |
0673-126 |
US $917.40 |
||
|
22
|
22
0673-264 VenturiStator |
0673-264 |
US $565.82 |
||
|
23
|
23
0624-045 ScrewCap |
0624-045 |
US $68.24 |
||
|
24
|
24
0624-027 WasherLock |
0624-027 |
US $1.70 |
||
|
25
|
25
0624-028
Washer
|
0624-028 |
— | ||
|
26
|
26
0624-084 AnodeZinc |
0624-084 |
US $33.26 |
||
|
27
|
27
0673-038 Nozzle |
0673-038 |
US $205.61 |
||
|
28
|
28
0673-083 Bushing |
0673-083 |
US $6.18 |
||
|
29
|
29
0624-036
Washer
|
0624-036 |
— | ||
|
30
|
30
0624-046 ScrewCap |
0624-046 |
US $8.64 |
||
|
31
|
31
0670-339
Fitting
|
0670-339 |
— | ||
|
32
|
32
0624-116 Washer |
0624-116 |
US $1.04 |
||
|
33
|
33
0670-118
Outlet
|
0670-118 |
— | ||
|
34
|
34
0624-016 ClampHose |
0624-016 |
US $10.05 |
||
|
35
|
35
0610-162 HoseFormed |
0610-162 |
US $22.16 |
||
|
36
|
36
0610-173
Fitting
|
0610-173 |
— | ||
|
37
|
37
0123-811 TieCable |
0123-811 |
US $2.15 |
||
|
38
|
38
3008-235 Clamp |
3008-235 |
US $7.34 |
||
|
39
|
39
0673-008
Plate
|
0673-008 |
— | ||
|
40
|
40
0673-009
Plate
|
0673-009 |
— | ||
|
41
|
41
0710-028
Hose
|
0710-028 |
— | ||
|
42
|
42
0624-117 Nut |
0624-117 |
US $4.09 |
||
|
43
|
43
0624-159 Washer |
0624-159 |
US $13.40 |
||
|
44
|
44
0673-464 Coupler |
0673-464 |
US $1.85 |
||
|
45
|
45
0619-147
Hose
|
0619-147 |
— | ||
|
46
|
46
0623-365 ClampHose |
0623-365 |
US $6.75 |
||
|
47
|
47
0673-493
O-ring
|
0673-493 |
— | ||
