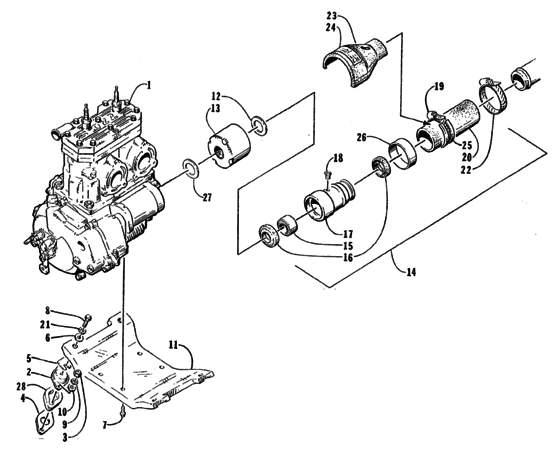

Engine and related assembly Diagram Arctic Cat TS 770
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0662-156 Engine |
0662-156 |
US $7,650.27 |
||
|
2
|
2
3008-054 Mount34.0106 mm; motor |
3008-054 |
US $123.86 |
||
|
3
|
3
0624-149 Nut |
0624-149 |
US $6.44 |
||
|
4
|
4
0673-508 Shim0.125 in.; engine mount |
0673-508 |
US $6.40 |
||
|
4
|
4
0673-509 Shim0.063 in.; engine mount |
0673-509 |
US $3.40 |
||
|
5
|
5
0624-014 Shim0.mm |
0624-014 |
US $10.60 |
||
|
5
|
5
0624-015 Shim1.mm |
0624-015 |
US $12.28 |
||
|
6
|
6
0624-406 Washer |
0624-406 |
US $3.89 |
||
|
7
|
7
3008-203 ScrewCap |
3008-203 |
US $17.40 |
||
|
8
|
8
3008-240 ScrewCap |
3008-240 |
US $18.83 |
||
|
9
|
9
0624-465 WasherLock |
0624-465 |
US $1.56 |
||
|
10
|
10
0624-028
Washer
|
0624-028 |
— | ||
|
11
|
11
0608-167 PlateEngine mount |
0608-167 |
US $386.35 |
||
|
12
|
12
0624-447 Washer |
0624-447 |
US $3.22 |
||
|
13
|
13
0675-174 CouplerEngine |
0675-174 |
US $234.64 |
||
|
14
|
14
0775-081
Housing
|
0775-081 |
— | ||
|
15
|
15
0675-161 Bearing |
0675-161 |
US $18.30 |
||
|
16
|
16
0675-169
Seal
|
0675-169 |
— | ||
| replacement | |||||
|
16
|
16
0675-266
Seal
|
0675-266 |
— | ||
|
17
|
17
0675-214 Housing/bearingFloating |
0675-214 |
US $54.65 |
||
| replacement | |||||
|
17
|
17
0675-352 HousingFloating; bearing |
0675-352 |
US $54.65 |
||
|
18
|
18
0624-341 FittingGrease |
0624-341 |
US $5.83 |
||
|
19
|
19
0624-037
Clamp
|
0624-037 |
— | ||
|
20
|
20
0710-210
Hose
|
0710-210 |
— | ||
|
21
|
21
0624-012 WasherLock |
0624-012 |
US $3.54 |
||
|
22
|
22
0624-390 Clamp |
0624-390 |
US $21.98 |
||
|
23
|
23
0775-104 GuardInc. 24; assembly; coupler |
0775-104 |
US $46.07 |
||
| replacement | |||||
|
23
|
23
0675-223 GuardClamp on; coupler |
0675-223 |
US $46.07 |
||
|
24
|
24
0614-429 DecalWarning |
0614-429 |
US $13.67 |
||
|
25
|
25
0775-099 IsolaterClamp |
0775-099 |
US $2.20 |
||
|
26
|
26
1673-476 ClampShrink |
1673-476 |
US $35.26 |
||
|
27
|
27
0624-448 Washer |
0624-448 |
US $8.08 |
||
|
28
|
28
0608-238 PlateSpacer |
0608-238 |
US $13.25 |
||
