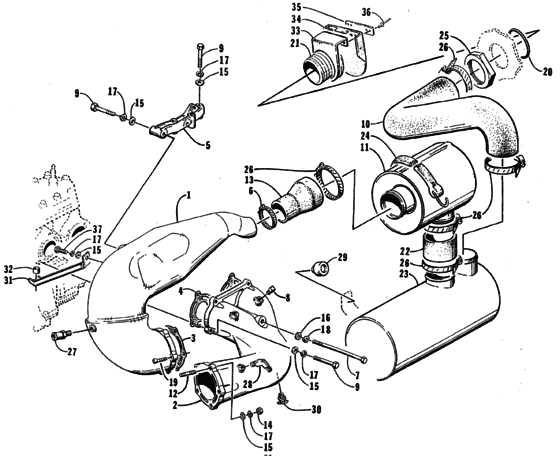

Exhaust assembly Diagram Arctic Cat TS 770
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0612-795 ChamberExpansion |
0612-795 |
US $777.72 |
||
|
2
|
2
0612-794 ManifoldExhaust |
0612-794 |
US $1,048.30 |
||
|
3
|
3
0612-741 GasketExpansion chamber |
0612-741 |
US $33.60 |
||
| replacement | |||||
|
3
|
3
0612-914
Gasket
|
0612-914 |
— | ||
|
4
|
4
3008-434 GasketExhaust manifold |
3008-434 |
US $49.78 |
||
|
5
|
5
0612-732 BracketExpansion chamber |
0612-732 |
US $39.81 |
||
| replacement | |||||
|
5
|
5
0612-916 BracketExpansion chamber |
0612-916 |
US $42.37 |
||
|
6
|
6
0624-390 Clamp |
0624-390 |
US $21.98 |
||
|
7
|
7
0624-344 ScrewCap |
0624-344 |
US $29.88 |
||
|
8
|
8
0676-003 Plug |
0676-003 |
US $17.93 |
||
|
9
|
9
0624-402 ScrewCap |
0624-402 |
US $5.74 |
||
|
10
|
10
0610-332 HoseOut; exhaust |
0610-332 |
US $286.64 |
||
|
11
|
11
0712-320 Resonator |
0712-320 |
US $371.68 |
||
|
12
|
12
0624-383 Stud |
0624-383 |
US $15.36 |
||
|
13
|
13
0610-372
Hose
|
0610-372 |
— | ||
|
14
|
14
0624-149 Nut |
0624-149 |
US $6.44 |
||
|
15
|
15
0624-028
Washer
|
0624-028 |
— | ||
|
16
|
16
0624-008 WasherFlat |
0624-008 |
US $4.46 |
||
|
17
|
17
0624-027 WasherLock |
0624-027 |
US $1.70 |
||
|
18
|
18
0624-012 WasherLock |
0624-012 |
US $3.54 |
||
|
19
|
19
0624-313 ScrewCap |
0624-313 |
US $16.12 |
||
|
20
|
20
0612-676 Gasket |
0612-676 |
US $24.85 |
||
|
21
|
21
0612-762
Outlet
|
0612-762 |
— | ||
|
22
|
22
0610-353 HoseIntermediate; exhaust |
0610-353 |
US $11.75 |
||
|
23
|
23
0712-321 Muffler |
0712-321 |
US $476.10 |
||
|
24
|
24
0773-805 Tiedown |
0773-805 |
US $10.30 |
||
|
25
|
25
0612-576 NutExhaust outlet |
0612-576 |
US $17.41 |
||
|
26
|
26
0624-169 ClampHose |
0624-169 |
US $5.27 |
||
|
27
|
27
0676-002 FittingElbow |
0676-002 |
US $26.90 |
||
|
28
|
28
1673-101 FittingElbow |
1673-101 |
US $17.07 |
||
|
29
|
29
0673-792 BumperGrommet |
0673-792 |
US $0.89 |
||
|
30
|
30
0676-012 ValveDrain |
0676-012 |
US $30.43 |
||
| replacements | |||||
|
30
|
30
0676-029 Kit0676-017; shut-off valve |
0676-029 |
US $24.75 |
||
|
30
|
30
0676-017
Valve
|
0676-017 |
— | ||
|
31
|
31
0612-737 BraceExpansion chamber |
0612-737 |
US $49.78 |
||
|
32
|
32
0624-420 Spacer |
0624-420 |
US $16.80 |
||
|
33
|
33
1673-411 Bracket |
1673-411 |
US $64.75 |
||
|
34
|
34
1673-413 Flap |
1673-413 |
US $23.05 |
||
|
35
|
35
1673-412 PlateBacking |
1673-412 |
US $5.64 |
||
|
36
|
36
0624-590
Rivet
|
0624-590 |
— | ||
|
37
|
37
0624-026 ScrewCap |
0624-026 |
US $8.64 |
||
