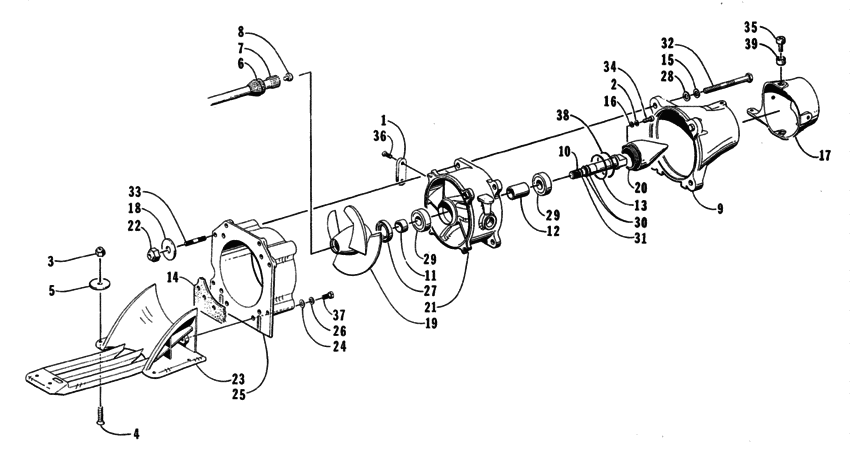

Impeller drive assembly Diagram Arctic Cat TS 770
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0624-084 AnodeZinc |
0624-084 |
US $33.26 |
||
|
2
|
2
0624-036
Washer
|
0624-036 |
— | ||
|
3
|
3
0624-250 NutStarter relay |
0624-250 |
US $3.52 |
||
|
4
|
4
0624-186
Screw
|
0624-186 |
— | ||
|
5
|
5
0624-182 Washer |
0624-182 |
US $2.95 |
||
|
6
|
6
0675-187
Grommet
|
0675-187 |
— | ||
|
7
|
7
0675-173 Driveshaft |
0675-173 |
US $466.91 |
||
|
8
|
8
0673-618 BumperPropeller shaft |
0673-618 |
US $9.70 |
||
|
9
|
9
0675-133 Venturi |
0675-133 |
US $305.31 |
||
|
10
|
10
0675-163
Shaft
|
0675-163 |
— | ||
| replacement | |||||
|
10
|
10
0675-098 ShaftImpeller; rear |
0675-098 |
US $138.37 |
||
|
11
|
11
0675-085
Spacer
|
0675-085 |
— | ||
|
12
|
12
0675-084 SpacerBearing |
0675-084 |
US $70.90 |
||
|
14
|
14
0675-107
Gasket
|
0675-107 |
— | ||
|
15
|
15
0624-012 WasherLock |
0624-012 |
US $3.54 |
||
|
16
|
16
0624-022
Washer
|
0624-022 |
— | ||
|
17
|
17
0675-134 NozzleSteering |
0675-134 |
US $245.48 |
||
|
18
|
18
0624-125 Washer |
0624-125 |
US $9.45 |
||
|
19
|
19
0675-233 Impeller770 |
0675-233 |
US $650.33 |
||
|
20
|
20
0675-149 EndcapStator |
0675-149 |
US $120.90 |
||
| replacement | |||||
|
20
|
20
0775-156 TailconeStator-black |
0775-156 |
US $120.90 |
||
|
21
|
21
0675-137 Stator |
0675-137 |
US $483.85 |
||
|
22
|
22
0624-090 NutLock |
0624-090 |
US $1.91 |
||
|
23
|
23
0675-019 GrateInlet |
0675-019 |
US $137.55 |
||
| replacement | |||||
|
23
|
23
0675-336
Grate
|
0675-336 |
— | ||
|
24
|
24
0624-028
Washer
|
0624-028 |
— | ||
|
25
|
25
0775-065 Wear ring |
0775-065 |
US $595.24 |
||
|
26
|
26
0624-027 WasherLock |
0624-027 |
US $1.70 |
||
|
27
|
27
0675-119
Seal
|
0675-119 |
— | ||
| replacement | |||||
|
27
|
27
0637-194
Kit
|
0637-194 |
— | ||
|
28
|
28
0624-008 WasherFlat |
0624-008 |
US $4.46 |
||
|
29
|
29
0673-609
Bearing
|
0673-609 |
— | ||
|
30
|
30
0673-608
O-ring
|
0673-608 |
— | ||
|
31
|
31
0673-607
O-ring
|
0673-607 |
— | ||
|
32
|
32
0624-386 ScrewCap |
0624-386 |
US $40.53 |
||
|
33
|
33
0624-417 Stud |
0624-417 |
US $48.84 |
||
|
34
|
34
0624-314 ScrewMachine |
0624-314 |
US $10.80 |
||
|
35
|
35
0624-174 ScrewCap |
0624-174 |
US $12.28 |
||
|
36
|
36
0624-184 ScrewMachine |
0624-184 |
US $10 |
||
|
37
|
37
0624-026 ScrewCap |
0624-026 |
US $8.64 |
||
|
38
|
38
0675-078
O-ring
|
0675-078 |
— | ||
|
39
|
39
1673-121
Bushing
|
1673-121 |
— | ||
