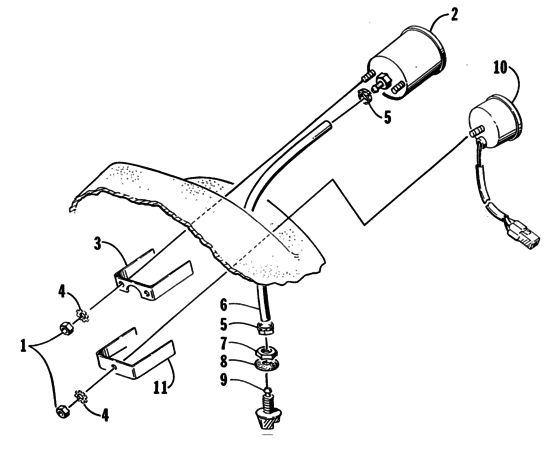

Instrument assembly Diagram Arctic Cat TS 770
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0623-701 Nut |
0623-701 |
US $0.17 |
||
|
2
|
2
0620-189 Speedometer |
0620-189 |
US $219.32 |
||
|
3
|
3
0620-199 BackclampSpeedometer |
0620-199 |
US $5.51 |
||
|
4
|
4
0623-702 WasherStar |
0623-702 |
US $5.35 |
||
|
5
|
5
0624-323
Clamp
|
0624-323 |
— | ||
|
6
|
6
0673-809 Hse |
0673-809 |
US $38.59 |
||
|
7
|
7
0673-348 NutJam |
0673-348 |
US $1.61 |
||
|
8
|
8
0673-349 Gasket |
0673-349 |
US $4.67 |
||
|
9
|
9
0673-362 TubePilot |
0673-362 |
US $27.66 |
||
| replacement | |||||
|
9
|
9
1673-673
Pitot
|
1673-673 |
— | ||
|
10
|
10
0620-172 GaugeFuel |
0620-172 |
US $220.06 |
||
|
11
|
11
0620-173 BackclampFuel gauge |
0620-173 |
US $5.16 |
||
