Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0624-442 Screw Cap	0624-442	US $9.64
2	2 1673-255 Cover Sound attenuator	1673-255	US $21.77
3	3 0624-022 Washer	0624-022	—
4	4 1673-434 Base	1673-434	—
5	5 0624-112 Screw Cap	0624-112	US $4
6	6 1673-398 Gasket Sound attenuator	1673-398	US $33.26
7	7 0670-724 Complete assembly	0670-724	US $568.93
8	8 0624-338 Screw Cap	0624-338	US $8.82
9	9 0624-027 Washer Lock	0624-027	US $1.70
10	10 0624-028 Washer	0624-028	—
11	11 0123-811 Tie Cable	0123-811	US $2.15
12	12 0624-036 Washer	0624-036	—
13	13 3008-087 Valve Check	3008-087	US $48.51
	replacement
13	13 3008-655 Valve Check	3008-655	US $48.51
14	14 3008-213 Bolt	3008-213	—
15	15 0670-732 Manifold Intake	0670-732	US $142.04
16	16 3008-076 Gasket	3008-076	US $16.56
	replacement
16	16 3005-432 Gasket Reed valve	3005-432	US $18.10
17	17 3008-578 Reed valve assembly Inc. 18-20	3008-578	US $213.50
18	18 3008-574 Valve Reed	3008-574	US $37.33
19	19 3004-210 Screw	3004-210	US $18.05
20	20 3008-074 Stopper Reed valve	3008-074	US $18.07
21	21 3008-370 Bolt Stud	3008-370	US $5.44
22	22 3008-214 Nut	3008-214	US $46.80
23	23 0687-051 Nut	0687-051	US $5.74
24	24 0624-057 Nut	0624-057	US $1.15
25	25 0687-077 Cable Chke	0687-077	US $113.31
26	26 1673-090 Gasket Intake	1673-090	US $1.37
27	27 1673-429 Brace Sound attenuator	1673-429	US $8.95
28	28 0624-200 Washer Lock	0624-200	US $4.56 ~~US $4.56~~
29	29 0624-155 Screw Cap	0624-155	US $5.10
30	30 1606-038 Bumper Air silencer	1606-038	US $1.75
31	31 0624-443 Nut Lock	0624-443	US $4.80
32	32 0670-794 Plate Cover	0670-794	US $65.62
33	33 0624-022 Washer	0624-022	—
34	34 0624-442 Screw Cap	0624-442	US $9.64

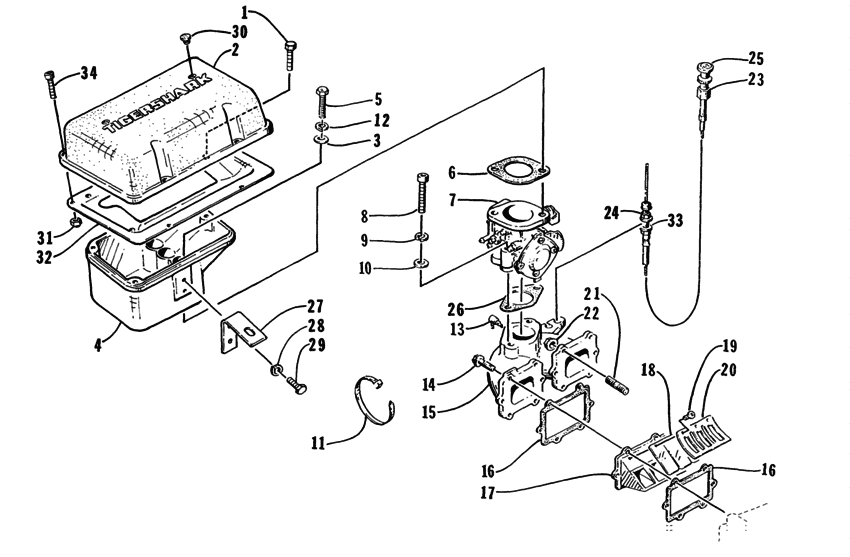

Intake assembly Diagram Arctic Cat TS 770 General 10953851-696921

Intake assembly Diagram Arctic Cat TS 770 General 10953851-696921
