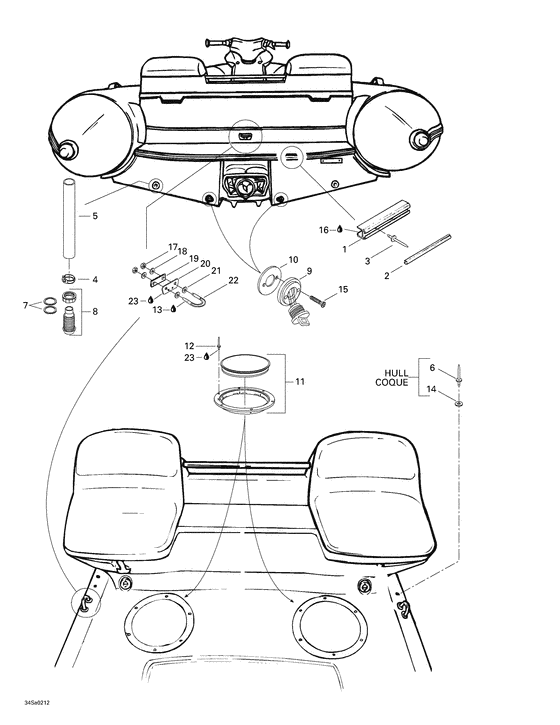

09- body and accessories 1 Diagram Bombardier Explorer
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204050278
Pare-chocs arr.*bumper-rear
|
204050278 |
— | ||
|
2
|
2
204050279 Moulure parecho*trim-bumper/rear |
204050279 |
US $36.72 |
||
|
3
|
3
293150014 Rivet-pop 3/16 *rivet-pop 3/16 |
293150014 |
US $37 |
||
|
4
|
4
293650019 Bride serrage *clamp-tridon |
293650019 |
US $37.65 |
||
|
5
|
5
291000102
Boyau
|
291000102 |
— | ||
|
6
|
6
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
7
|
7
293250006 Joint etanche *gasket |
293250006 |
US $36.55 |
||
|
8
|
8
293710015 Raccord *fitting |
293710015 |
US $13.60 |
||
|
9
|
9
292000187 Bouchon purge *plug-drain |
292000187 |
from US $21.60 |
||
|
10
|
10
293250030 Joint etanche *gasket |
293250030 |
US $38.85 |
||
|
11
|
11
204000060
Couv.acces 8" *cover-access 8
|
204000060 |
— | ||
|
12
|
12
293150039 Rivet-pop 3/16 *rivet-pop 3/16 |
293150039 |
US $9.60 |
||
|
13
|
13
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
14
|
14
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
15
|
15
211000021 Screw-tri.plask pan.hd.phil. |
211000021 |
US $11.76 |
||
|
16
|
16
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
17
|
17
232081600 Nut-hexagonal din.934a2 |
232081600 |
US $9.50 |
||
|
18
|
18
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
19
|
19
291000307 Plaque retenue *plate-retainer |
291000307 |
US $13.60 |
||
|
20
|
20
291000544
Plaque finition*plate-finition
|
291000544 |
— | ||
|
21
|
21
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
22
|
22
292000063 Bride en u *clamp-u |
292000063 |
US $70.35 |
||
|
23
|
23
293800086
Scell.silicone *seal-silicone
|
293800086 |
— |
