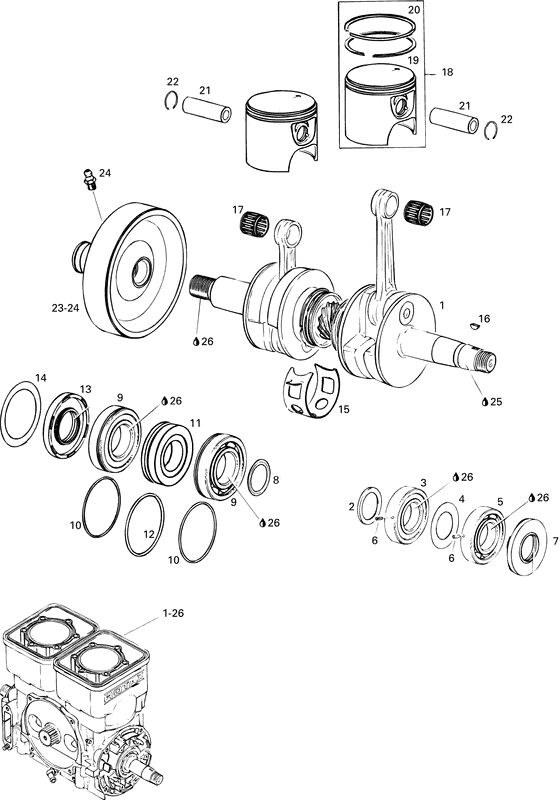

01- crankshaft and pistons Diagram Bombardier Explorer
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
290881448
Ens. carter / cylindre ass.
Includes 1 to 26; |
290881448 |
— | ||
|
1
|
1
290886558
Vilebrequin ass.
|
290886558 |
— | ||
|
2
|
2
290827440 Bague ecart. *distance ring |
290827440 |
US $1.96 |
||
| replacement | |||||
|
2
|
2
420827440
Bague ecart. *ring-distance
|
420827440 |
— | ||
|
3
|
3
290932589
Roulement bille*ball bearing
|
290932589 |
— | ||
| replacement | |||||
|
3
|
3
420832538
Roulement bille*ball bearing
|
420832538 |
— | ||
|
4
|
4
290827715
Cale epaisseur *shim
|
290827715 |
— | ||
| replacement | |||||
|
4
|
4
420827715
Cale epaisseur *shim
|
420827715 |
— | ||
|
5
|
5
290932587
Roulement bille*ball bearing
|
290932587 |
— | ||
| replacement | |||||
|
5
|
5
420832538
Roulement bille*ball bearing
|
420832538 |
— | ||
|
6
|
6
290832470
Goupille ressor*pin-roll
|
290832470 |
— | ||
| replacement | |||||
|
6
|
6
420832470 Goupille ressor*pin-roll |
420832470 |
US $40.65 |
||
|
7
|
7
290830749
Anneau etanche *seal-oil
|
290830749 |
— | ||
| replacement | |||||
|
7
|
7
420830749 Anneau etanche *seal-oil |
420830749 |
US $18.39 |
||
|
8
|
8
290827760
Bague ecart. *distance ring
|
290827760 |
— | ||
| replacement | |||||
|
8
|
8
420827760 Bague ecart. *ring-distance |
420827760 |
US $7 |
||
|
9
|
9
290832231
Roulement bille*ball bearing
|
290832231 |
— | ||
| replacement | |||||
|
9
|
9
420832570 Roulement bille*ball bearing |
420832570 |
US $48.72 |
||
|
10
|
10
293300022 Joint torique *o-ring |
293300022 |
US $70.70 |
||
|
11
|
11
290830292
Manchon labyrin*sleeve-labyrin
|
290830292 |
— | ||
| replacement | |||||
|
11
|
11
420830292
Manchon labyrin*bushing-labyr.
|
420830292 |
— | ||
|
12
|
12
290830370
Joint torique *o-ring
|
290830370 |
— | ||
| replacement | |||||
|
12
|
12
420830370 Joint torique *o ring |
420830370 |
US $81.30 |
||
|
13
|
13
290831952
Anneau etanche *seal-oil
|
290831952 |
— | ||
| replacement | |||||
|
13
|
13
420831952 Anneau etanche *seal-oil |
420831952 |
US $21.42 |
||
|
14
|
14
290926060
Cale de retenue*shim-retaining
|
290926060 |
— | ||
| replacement | |||||
|
14
|
14
420926060 Cale de retenue*shim-retaining |
420926060 |
US $17.63 |
||
|
15
|
15
290926070
Bague retenue *retainer ring
|
290926070 |
— | ||
| replacement | |||||
|
15
|
15
420926070 Bague retenue *retainer ring |
420926070 |
US $21.79 |
||
|
16
|
16
290246055
Clavette *key-woodruff
|
290246055 |
— | ||
| replacement | |||||
|
16
|
16
420246055 Clavette *key-woodruff |
420246055 |
US $31.30 |
||
|
17
|
17
290832440
Roulement aigui*needle bearing
|
290832440 |
— | ||
| replacement | |||||
|
17
|
17
420832440 Roulement aigui*needle bearing |
420832440 |
US $25.45 |
||
|
18
|
18
290887060
Piston ass. *piston-assy.
Includes 18 to 20; |
290887060 |
— | ||
| replacement | |||||
|
18
|
18
420887060 Piston ass. 77.94mm *piston-assyIncludes 18 to 20; |
420887060 |
US $146.85 |
||
|
18
|
18
290887061
Piston ass. *piston-assy.
Includes 18 to 20; |
290887061 |
— | ||
| replacement | |||||
|
18
|
18
420887061
Piston ass. 78.19mm *piston-assy
Includes 18 to 20; |
420887061 |
— | ||
|
18
|
18
290887062
Piston ass. *piston-assy.
Includes 18 to 20; |
290887062 |
— | ||
| replacement | |||||
|
18
|
18
420887062
Piston ass. 78.44mm *piston-assy
Includes 18 to 20; |
420887062 |
— | ||
|
19
|
19
290815025
Segment r 78.00*r-ring 78.00
|
290815025 |
— | ||
| replacement | |||||
|
19
|
19
420815025
Segment r 78.0 *ring-r 78.0
|
420815025 |
— | ||
|
19
|
19
290815026
Segment rectangulaire 78.25 mm
|
290815026 |
— | ||
|
19
|
19
290815027
Segment rectangulaire 78.5 mm
|
290815027 |
— | ||
|
20
|
20
290815035
Segment l 78.00*l-ring 78.00
|
290815035 |
— | ||
| replacement | |||||
|
20
|
20
420815035
Segment l 78.00*l-ring 78.00
|
420815035 |
— | ||
|
20
|
20
290815036
New Genuine Part
|
290815036 |
— | ||
|
20
|
20
290815037
New Genuine Part
|
290815037 |
— | ||
|
21
|
21
290916360
Goupille piston*pin-piston
|
290916360 |
— | ||
| replacement | |||||
|
21
|
21
420916361 Piston Pin |
420916361 |
US $21.39 |
||
|
22
|
22
290845100
Circlip #20 *circlip-#20
|
290845100 |
— | ||
| replacement | |||||
|
22
|
22
420845100 Circlip #20 *circlip-#20 |
420845100 |
US $19.60 |
||
|
23
|
23
290958011
Volant inertie *clutch-fly.pto
Includes 23 to 24; |
290958011 |
— | ||
| replacement | |||||
|
23
|
23
420958013 Volant inertie *clutch-fly.ptoIncludes 23 to 24; |
420958013 |
US $246.81 |
||
|
24
|
24
290499113
Graisseur *fitting-grease
|
290499113 |
— | ||
| replacement | |||||
|
24
|
24
420499113 Graisseur *fitting-grease |
420499113 |
US $48.55 |
||
|
25
|
25
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
25
|
25
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
26
|
26
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
|
293800023 |
— | ||
|
27
|
27
290886651
Ens.joint etanc*set-gasket
|
290886651 |
— | ||
| replacement | |||||
|
27
|
27
420886651
Set-gasket
|
420886651 |
— | ||
|
28
|
28
290886655
Ens.joint cyl. *set-gasket cyl
|
290886655 |
— | ||
| replacement | |||||
|
28
|
28
420886655
Ens.joint cyl. *set-gasket cyl
|
420886655 |
— | ||
