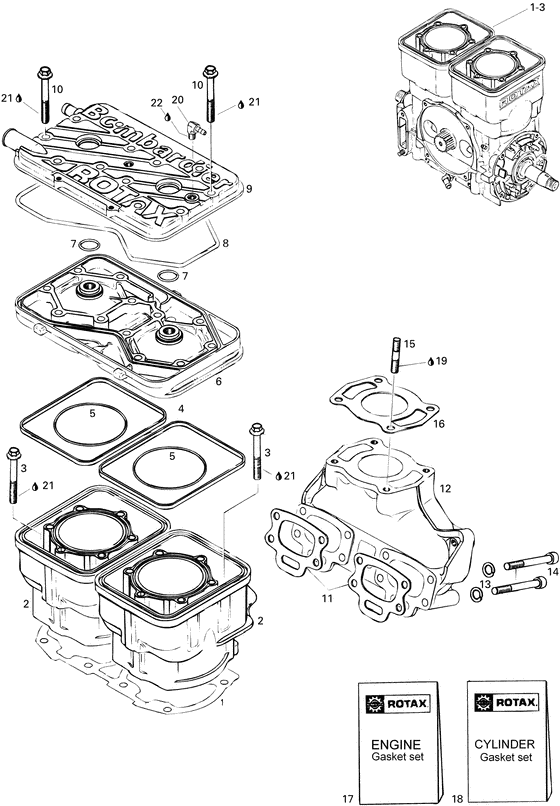

01- cylinder and exhaust manifold Diagram Bombardier Explorer
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
290881448
Ens. carter / cylindre ass.
Includes 1 to 3; |
290881448 |
— | ||
|
1
|
1
290931162
Joint etanche *gasket-cyl.
|
290931162 |
— | ||
| replacement | |||||
|
1
|
1
420931162
Joint etanche *gasket-cyl.
|
420931162 |
— | ||
|
1
|
1
290931165
New Genuine Part
|
290931165 |
— | ||
|
1
|
1
290931161
Joint etanche *gasket-cyl.
|
290931161 |
— | ||
| replacement | |||||
|
1
|
1
420931161 Cylinder gasket 0.5mm |
420931161 |
US $16.29 |
||
|
1
|
1
290931163
Joint etanche *gasket-cyl.
|
290931163 |
— | ||
| replacement | |||||
|
1
|
1
420931163
Joint etanche *gasket-cyl.
|
420931163 |
— | ||
|
1
|
1
290931164
Joint etanche *gasket-cyl.
|
290931164 |
— | ||
| replacement | |||||
|
1
|
1
420931164 Joint etanche *gasket-cyl. |
420931164 |
US $16.29 |
||
|
2
|
2
290913386
Cylindre avec chemise (blanc)
|
290913386 |
— | ||
|
3
|
3
290841998
Vis hex.flasque*screw-hex.flan
|
290841998 |
— | ||
| replacement | |||||
|
3
|
3
420841998 Screw-hex. |
420841998 |
US $67.40 |
||
|
4
|
4
290850045
Bague etanche *rubber ring
|
290850045 |
— | ||
| replacement | |||||
|
4
|
4
420850045 Bague etanche *rubber ring |
420850045 |
US $20.77 |
||
|
5
|
5
290931220
Joint torique *o-ring
|
290931220 |
— | ||
| replacement | |||||
|
5
|
5
420931220 Joint torique *o ring |
420931220 |
US $17.29 |
||
|
6
|
6
290913701
Culasse blanche*head-cylinder
|
290913701 |
— | ||
| replacement | |||||
|
6
|
6
420913706
Cylinder head white 657
|
420913706 |
— | ||
|
7
|
7
290430782
Joint torique *o-ring
|
290430782 |
— | ||
| replacement | |||||
|
7
|
7
420430782 Joint torique *o ring |
420430782 |
US $69.50 |
||
|
8
|
8
290950320
Joint torique *o-ring
|
290950320 |
— | ||
| replacement | |||||
|
8
|
8
420950320 Joint torique *o ring |
420950320 |
US $15.35 |
||
|
9
|
9
290913711
Couvercle de culasse (blanc)
|
290913711 |
— | ||
|
10
|
10
290841998
Vis hex.flasque*screw-hex.flan
|
290841998 |
— | ||
| replacement | |||||
|
10
|
10
420841998 Screw-hex. |
420841998 |
US $67.40 |
||
|
11
|
11
290850635
Joint etanche *gasket
|
290850635 |
— | ||
| replacement | |||||
|
11
|
11
420850634 Gasket |
420850634 |
US $20.34 |
||
|
12
|
12
290978344
Collect.echapp.*manifold-exh.
|
290978344 |
— | ||
| replacement | |||||
|
12
|
12
420978344
Collect.echapp.*manifold-exh.
|
420978344 |
— | ||
|
13
|
13
290845382
Rondelle frein *washer-lock
|
290845382 |
— | ||
| replacement | |||||
|
13
|
13
234180602 Washer-lock spring din.128a-a2 |
234180602 |
US $15 |
||
|
14
|
14
290841998
Vis hex.flasque*screw-hex.flan
|
290841998 |
— | ||
| replacement | |||||
|
14
|
14
420841998 Screw-hex. |
420841998 |
US $67.40 |
||
|
15
|
15
290941013
Goujon m8 x 26 *stud-m8 x 26
|
290941013 |
— | ||
| replacement | |||||
|
15
|
15
420941014 Goujon m8 x 26 *stud-m8 x 26 |
420941014 |
US $14.14 |
||
|
16
|
16
290950251
Joint etanche *gasket
|
290950251 |
— | ||
| replacement | |||||
|
16
|
16
420950253 Exhaust gasket |
420950253 |
US $16.44 |
||
|
17
|
17
290886651
Ens.joint etanc*set-gasket
|
290886651 |
— | ||
| replacement | |||||
|
17
|
17
420886651
Set-gasket
|
420886651 |
— | ||
|
18
|
18
290886655
Ens.joint cyl. *set-gasket cyl
|
290886655 |
— | ||
| replacement | |||||
|
18
|
18
420886655
Ens.joint cyl. *set-gasket cyl
|
420886655 |
— | ||
|
19
|
19
290899788
Loctite 648 *loctite-648
|
290899788 |
— | ||
| replacement | |||||
|
19
|
19
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
20
|
20
293710018
Raccord coude90*fitting-elbow
|
293710018 |
— | ||
|
21
|
21
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
21
|
21
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
22
|
22
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
