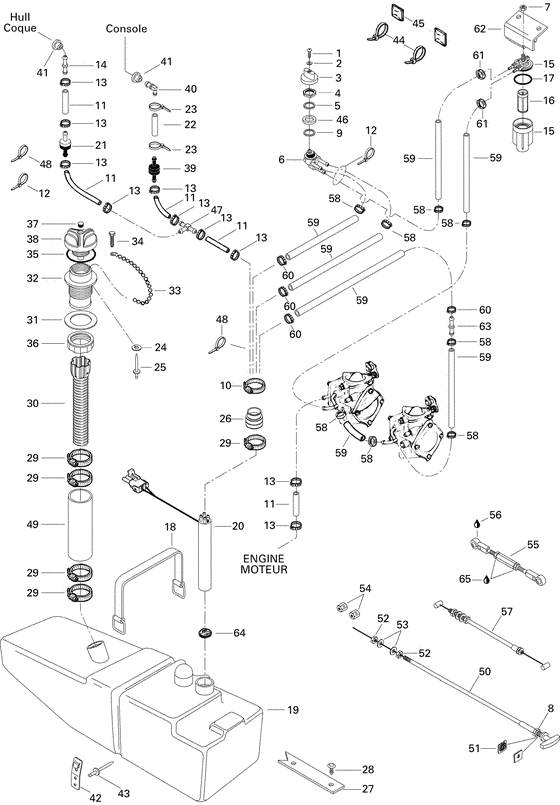

02- fuel system Diagram Bombardier Explorer
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
212200004
Screw-pan hd.ph.din.7985a-a2
|
212200004 |
— | ||
| replacement | |||||
|
1
|
1
208640860 Screw-pan hd.ph.din.7985a-a2 |
208640860 |
US $5.35 |
||
|
2
|
2
213200010
Washer-flat din.433a2
|
213200010 |
— | ||
| replacement | |||||
|
2
|
2
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
3
|
3
275500134
Bouton valve es*knob-valv.fuel
|
275500134 |
— | ||
|
4
|
4
212100008
Nut-hex.plastic m22
|
212100008 |
— | ||
| replacement | |||||
|
4
|
4
212100009 Nut-hex.plastic |
212100009 |
US $25.20 |
||
|
5
|
5
293250005 Joint etanche *gasket |
293250005 |
US $29.15 |
||
|
6
|
6
275500098 Soupape essence*valve-fuel |
275500098 |
US $46.78 |
||
|
7
|
7
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
7
|
7
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
8
|
8
211100007
Nut-hexagonal hi-lex
|
211100007 |
— | ||
|
9
|
9
293250004 Joint etanche *gasket |
293250004 |
US $42.25 |
||
|
10
|
10
293650035 Bride serrage *clamp-tridon |
293650035 |
US $47.75 |
||
|
11
|
11
275500139
Boyau 6mm. *hose-6mm.
|
275500139 |
— | ||
|
12
|
12
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
13
|
13
293650050
Bride serrage *clamp-clic
|
293650050 |
— | ||
|
14
|
14
293710035 Raccord droit *fitting-straig |
293710035 |
US $9.76 |
||
|
15
|
15
275500088 Filtre ess.ass.*filter-fuel asIncludes 15 to 17; |
275500088 |
US $31.47 |
||
|
16
|
16
275500089 Filtre essence *filter-fuel |
275500089 |
US $68 |
||
|
17
|
17
275500090 Joint torique *o-ring |
275500090 |
US $49.80 |
||
|
18
|
18
293850023
Sangle res.ess.*strap-fuel tank
|
293850023 |
— | ||
|
19
|
19
275500218
Reservoir ess. *tank-fuel
|
275500218 |
— | ||
|
20
|
20
275500226 Chicane triage *baffle-pick upIncludes 26,64; |
275500226 |
US $258.01 |
||
|
21
|
21
275500104
Soupape retenue*valve-check
|
275500104 |
— | ||
| replacement | |||||
|
21
|
21
275500479
Soupape retenue*valve-check
|
275500479 |
— | ||
|
22
|
22
275500018
Boyau 5.2mm *hose-5.2mm
|
275500018 |
— | ||
|
23
|
23
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
24
|
24
213200018
Washer-flat din.9021b-a2
|
213200018 |
— | ||
| replacement | |||||
|
24
|
24
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
25
|
25
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
26
|
26
275500111
Adap.tube ess. *adap-tube fuel
|
275500111 |
— | ||
|
27
|
27
293830033
Tampon caout. *pad-rubber
|
293830033 |
— | ||
|
28
|
28
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
29
|
29
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
30
|
30
275500181
Boyau de remplissage
|
275500181 |
— | ||
|
31
|
31
293250022
Joint etanche *gasket
|
293250022 |
— | ||
| replacement | |||||
|
31
|
31
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
32
|
32
275500175
Goulot de remplissage
|
275500175 |
— | ||
|
33
|
33
275500015
Chaine bouchon *chain-cap oil
|
275500015 |
— | ||
|
34
|
34
211000028
Screw-pt.hex.flange k40 x 10
|
211000028 |
— | ||
| replacement | |||||
|
34
|
34
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
35
|
35
293250017
Joint etanche *gasket
|
293250017 |
— | ||
|
36
|
36
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
37
|
37
293000015
Capuchon press.*cap-snap viol.
|
293000015 |
— | ||
| replacement | |||||
|
37
|
37
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
38
|
38
275500194
Bouchon ess.sub*cap-fuel sub.
Includes 37; |
275500194 |
— | ||
| replacement | |||||
|
38
|
38
275500430 Bouchon ess.sub*cap-fuel sub.Includes 37; |
275500430 |
US $30.19 |
||
|
39
|
39
275500087
Soupape retenue*valve-check
|
275500087 |
— | ||
| replacement | |||||
|
39
|
39
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
40
|
40
293710001
Raccord coude90*fitting-elbow
|
293710001 |
— | ||
| replacement | |||||
|
40
|
40
414580700 Raccord male *connector-male |
414580700 |
US $26.60 |
||
|
41
|
41
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
41
|
41
709200285
GROMMET
|
709200285 |
— | ||
|
42
|
42
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
43
|
43
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
44
|
44
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
45
|
45
293750015 Ancrage tie rap*mount-tie rap |
293750015 |
US $15.05 |
||
|
46
|
46
293050003
Rondelle *washer
|
293050003 |
— | ||
|
47
|
47
293710024 Raccord en t *fitting-t |
293710024 |
US $14.72 |
||
|
48
|
48
294000606
Tie rap 180mm *tie-rap 180mm
|
294000606 |
— | ||
| replacement | |||||
|
48
|
48
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
49
|
49
204000002
Boyau remp.ext.*hose-fil.neck
|
204000002 |
— | ||
|
50
|
50
277000274
New Genuine Part
|
277000274 |
— | ||
|
51
|
51
291000457 Plaque etrang. *plate-choke |
291000457 |
US $48.55 |
||
|
52
|
52
212100003
Nut-jam hexagonal din.439b-a2
|
212100003 |
— | ||
| replacement | |||||
|
52
|
52
232160600 Nut-jam hexagonal din.439b-a2 |
232160600 |
US $7.40 |
||
|
53
|
53
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
53
|
53
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
54
|
54
210100014
Screw-set socket din.916a2
|
210100014 |
— | ||
| replacement | |||||
|
54
|
54
206540660
Screw-set socket din.916a2
|
206540660 |
— | ||
|
55
|
55
270500186
Tige de liaison*rod-link carb.
|
270500186 |
— | ||
|
56
|
56
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
57
|
57
277000271
Cable accelerat*cable-throttle
|
277000271 |
— | ||
|
58
|
58
293650060
Bride serrage *clamp-clic
|
293650060 |
— | ||
|
59
|
59
204000068 Boyau 1/4" *hose-1/4 |
204000068 |
US $25.26 |
||
|
60
|
60
293650059 Bride serrage *clamp-clic |
293650059 |
US $29.15 |
||
|
61
|
61
293650057
Bride de serrage caillau
|
293650057 |
— | ||
|
62
|
62
291000527
New Genuine Part
|
291000527 |
— | ||
|
63
|
63
293710039 Raccord droit *fitting-straig |
293710039 |
US $9.89 |
||
|
64
|
64
275500249
Filtre essence *filter-fuel
|
275500249 |
— | ||
| replacement | |||||
|
64
|
64
275500397 Filtre essence *filter-fuel |
275500397 |
US $29.38 |
||
|
65
|
65
413703400 Loctite 222ms *loctite-222ms |
413703400 |
US $19.33 |
||
