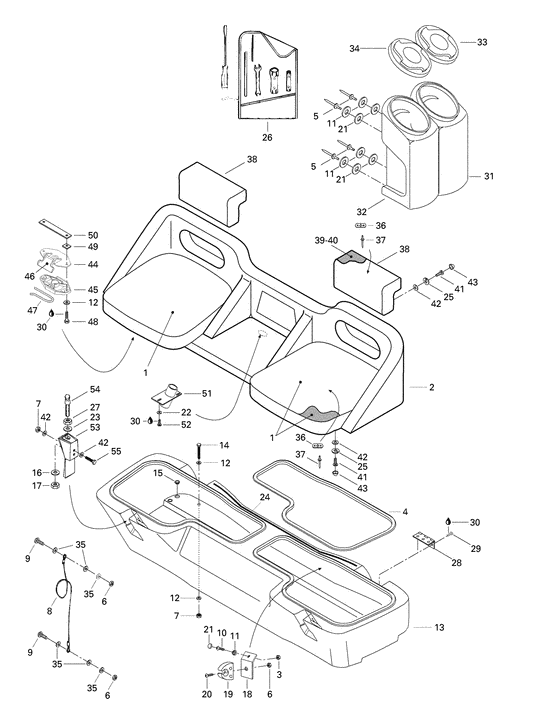

09- rear seat and storage compartment Diagram Bombardier Explorer
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
269000196
New Genuine Part
|
269000196 |
— | ||
|
|
269000214
New Genuine Part
|
269000214 |
— | ||
|
|
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— | ||
|
1
|
1
269000179
New Genuine Part
|
269000179 |
— | ||
|
2
|
2
269000203
Base siege doub*base-seat doub
|
269000203 |
— | ||
|
3
|
3
218041600
Nut-stop elastic din.985a2
|
218041600 |
— | ||
| replacement | |||||
|
3
|
3
232541600 Nut-stop elastic din.985a2 |
232541600 |
US $7.40 |
||
|
4
|
4
293200020
Anneau etanche *seal-tray
|
293200020 |
— | ||
|
6
|
6
212000004
Nut-stop elastic din.985a2
|
212000004 |
— | ||
| replacement | |||||
|
6
|
6
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
7
|
7
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
7
|
7
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
8
|
8
204000117 Cable retenue *cable-retainer |
204000117 |
US $46.89 |
||
|
9
|
9
215851668
Screw-pan hd.ph.din.7985a-a2
|
215851668 |
— | ||
| replacement | |||||
|
9
|
9
208651660 Screw-pan hd.ph.din.7985a-a2 |
208651660 |
US $10.65 |
||
|
10
|
10
216142060
Screw-ctsk.fl.hd.ph.din.965a-a2
|
216142060 |
— | ||
| replacement | |||||
|
10
|
10
208442060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208442060 |
US $9.80 |
||
|
11
|
11
414436800 Capuchon ret. *cap-retainer |
414436800 |
US $38.90 |
||
|
12
|
12
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
12
|
12
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
13
|
13
291001115
New Genuine Part
|
291001115 |
— | ||
|
14
|
14
210000014
Screw-hex.cap din.933a2
|
210000014 |
— | ||
| replacement | |||||
|
14
|
14
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
15
|
15
291000279 Bouchon noir *plug-black |
291000279 |
US $25.04 |
||
|
16
|
16
217002600
Washer-flat din.9021b-a2
|
217002600 |
— | ||
| replacement | |||||
|
16
|
16
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
17
|
17
212000003
Nut-stop elastic din.985a2
|
212000003 |
— | ||
| replacement | |||||
|
17
|
17
232501600 Nut-stop elastic din.985a2 |
232501600 |
US $10.65 |
||
|
18
|
18
269500200
Support de base
|
269500200 |
— | ||
|
19
|
19
291000642 Support de tige*support-pole |
291000642 |
US $66.06 |
||
|
20
|
20
216152560
Screw-ctsk.fl.hd.ph.din.965a-a2
|
216152560 |
— | ||
| replacement | |||||
|
20
|
20
208452560
Screw-ctsk.fl.hd.ph.din.965a-a2
|
208452560 |
— | ||
|
21
|
21
414576500
Capuchon
|
414576500 |
— | ||
|
22
|
22
213200004
Washer-flat din.125a-a2
|
213200004 |
— | ||
| replacement | |||||
|
22
|
22
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
23
|
23
213200003
Washer-flat din.125a-a2
|
213200003 |
— | ||
| replacement | |||||
|
23
|
23
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
24
|
24
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
24
|
24
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
25
|
25
217361500
Washer-lock helical din.127b-a2
|
217361500 |
— | ||
| replacement | |||||
|
25
|
25
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
26
|
26
295000066
Owner tool kit
|
295000066 |
— | ||
|
27
|
27
218300600
Nut-jam hexagonal din.439b-a2
|
218300600 |
— | ||
| replacement | |||||
|
27
|
27
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
28
|
28
269000125
Charniere siege*hinge-seat
|
269000125 |
— | ||
|
29
|
29
216151260
Screw-ctsk.fl.hd.ph.din.965a-a2
|
216151260 |
— | ||
| replacement | |||||
|
29
|
29
208451260 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208451260 |
US $9.80 |
||
|
30
|
30
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
30
|
30
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
31
|
31
269500180
Boitier rang. *housing-storag
|
269500180 |
— | ||
| replacement | |||||
|
31
|
31
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
32
|
32
269500151
Boitier extinct*housing-exting
|
269500151 |
— | ||
| replacement | |||||
|
32
|
32
269500606 Boitier extinct*housing-exting |
269500606 |
US $29.38 |
||
|
33
|
33
269500237
Capuchon rang. *cap-storage
|
269500237 |
— | ||
| replacement | |||||
|
33
|
33
269500604
Capuchon rang. *cap-storage
|
269500604 |
— | ||
|
34
|
34
269500236
Cap extincteur *cap-extinguish
|
269500236 |
— | ||
| replacement | |||||
|
34
|
34
269500603
Cap extincteur *cap-extinguish
|
269500603 |
— | ||
|
35
|
35
213200015
Washer-flat din.9021b-a2
|
213200015 |
— | ||
| replacement | |||||
|
35
|
35
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
36
|
36
204000065
Nut-spring m5 ss-302
|
204000065 |
— | ||
|
37
|
37
204000080
Rivet tec 3/32 *rivet-tec 3/32
|
204000080 |
— | ||
|
38
|
38
269000197
Dossier ass
(Incl. It. 36,37,39,40); |
269000197 |
— | ||
|
39
|
39
269000198
Housse de dossier
|
269000198 |
— | ||
|
40
|
40
269000199
Mousse de dossier
|
269000199 |
— | ||
|
41
|
41
216662560
Screw-tapp.pan hd.ph.din.7981c-a2
|
216662560 |
— | ||
| replacement | |||||
|
41
|
41
209662560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209662560 |
US $18.20 |
||
|
42
|
42
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
42
|
42
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
43
|
43
269000252
Capuchon 1/2 *cap-1/2
|
269000252 |
— | ||
|
44
|
44
269700020
Couv.loquet *cover-latch
|
269700020 |
— | ||
| replacement | |||||
|
44
|
44
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
45
|
45
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
45
|
45
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
46
|
46
269000016
Levier loquet *lever-latch
|
269000016 |
— | ||
| replacement | |||||
|
46
|
46
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
47
|
47
269000017
Ressort *spring
|
269000017 |
— | ||
| replacement | |||||
|
47
|
47
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
48
|
48
210000013
Screw-hex.cap din.931a2
|
210000013 |
— | ||
| replacement | |||||
|
48
|
48
207064560 Screw-hex.cap din.931a2 |
207064560 |
US $9.80 |
||
|
49
|
49
269000254
Cale d'espacement
|
269000254 |
— | ||
|
50
|
50
269000243
Plaque de retenue
|
269000243 |
— | ||
|
51
|
51
269000244
Supp.base lumie*supp-base ligh
|
269000244 |
— | ||
|
52
|
52
215851068
Screw-pan hd.ph.din.7985a-a2
|
215851068 |
— | ||
| replacement | |||||
|
52
|
52
208651060 Screw-pan hd.ph.din.7985a-a2 |
208651060 |
US $7.25 |
||
|
53
|
53
204610206
Support ergot *support-stud
|
204610206 |
— | ||
|
54
|
54
291000689 Ergot d ancrage*stud-latch |
291000689 |
US $34.63 |
||
|
55
|
55
210000004
Screw-hex.cap din.933a2
|
210000004 |
— | ||
| replacement | |||||
|
55
|
55
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
