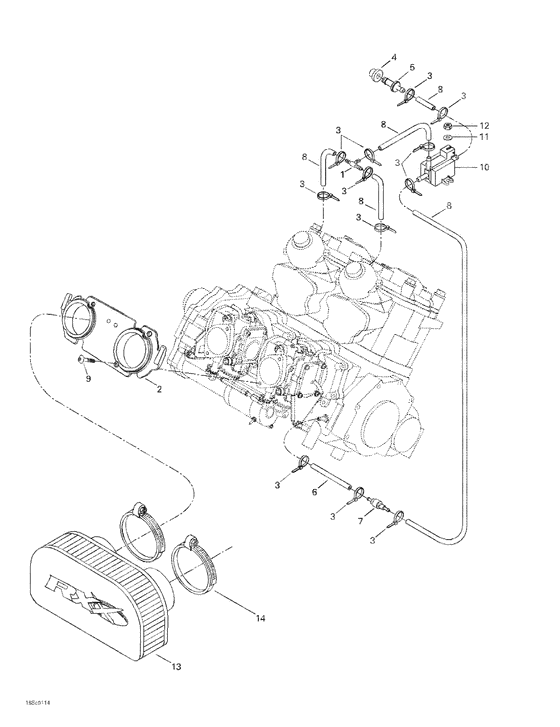

02- air intake system Diagram Bombardier RX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293710068 Raccord en t *fitting-t |
293710068 |
US $104.70 |
||
|
2
|
2
270500383
Adap.silenc.adm*adap-silenc.air
|
270500383 |
— | ||
|
3
|
3
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
4
|
4
293720029 Passe-fils *grommet |
293720029 |
US $9.25 |
||
|
5
|
5
293700031
Raccord laiton *fitting
|
293700031 |
— | ||
|
6
|
6
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
7
|
7
275500479
Soupape retenue*valve-check
|
275500479 |
— | ||
|
8
|
8
270000374 Boyau 4.3mm *hose-4.3mm |
270000374 |
US $198.15 |
||
|
9
|
9
270500357
Vis ass. *screw-assy.
|
270500357 |
— | ||
|
10
|
10
270600005 Soupape solenoi*valve-solenoid |
270600005 |
US $128.71 |
||
|
11
|
11
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
12
|
12
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
14
|
14
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
