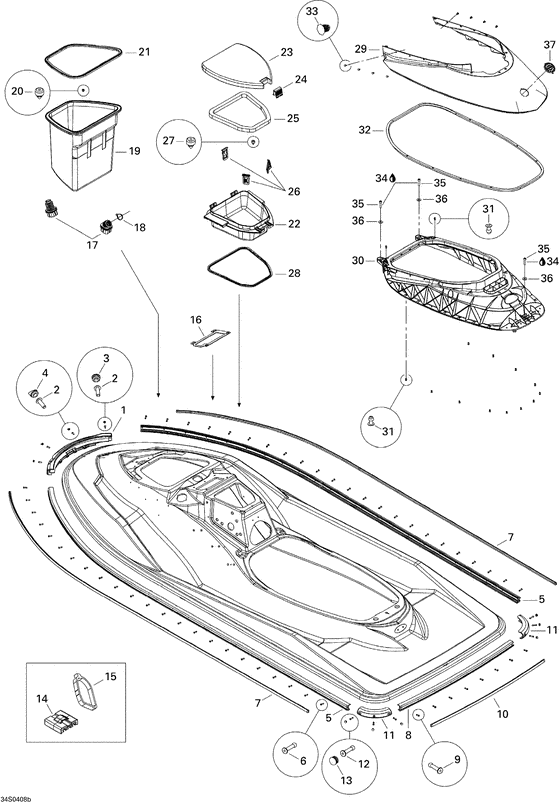

09- body 2 Diagram Bombardier RXP
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
291001942
Nez pare-chocs *nose-bumper
|
291001942 |
— | ||
|
2
|
2
250000207 Screw-plastite torx button head |
250000207 |
US $12.90 |
||
|
3
|
3
291001519 Bouchon parecho*plug-bumper |
291001519 |
US $40.98 |
||
|
4
|
4
291001040
Bouchon parecho*plug-bumper
|
291001040 |
— | ||
|
5
|
5
291001606
Pare-chocs lat.*bumper-side
|
291001606 |
— | ||
| replacement | |||||
|
5
|
5
204050270 Pare-chocs lat.*bumper-side |
204050270 |
US $149.14 |
||
|
6
|
6
293150005 Rivet-pop 3/16 *rivet-pop 3/16 |
293150005 |
US $6.80 |
||
|
7
|
7
291001849
Moulure *bumper trim
RXP (Apple Green); |
291001849 |
— | ||
| replacement | |||||
|
7
|
7
291002142
Moulure *bumper trim
RXP (Apple Green); |
291002142 |
— | ||
|
7
|
7
291002001
Moulure *bumper trim
RXP (Yellow); |
291002001 |
— | ||
| replacement | |||||
|
7
|
7
291001840 Moulure *bumper trimRXP (Yellow); |
291001840 |
US $56.05 |
||
|
8
|
8
291001483
Pare-chocs arr.*bumper-rear
|
291001483 |
— | ||
| replacement | |||||
|
8
|
8
291002242 Pare-chocs arr.*bumper-rear |
291002242 |
US $110.13 |
||
|
9
|
9
293150005 Rivet-pop 3/16 *rivet-pop 3/16 |
293150005 |
US $6.80 |
||
|
10
|
10
291001537
Moulure *bumper trim
RXP (Yellow); |
291001537 |
— | ||
| replacement | |||||
|
10
|
10
291001670
Moulure *bumper trim
RXP (Yellow); |
291001670 |
— | ||
|
10
|
10
291001850
Moulure *bumper trim
RXP (Apple Green); |
291001850 |
— | ||
|
11
|
11
291001505
Coin pare-chocs*corner-bumper
|
291001505 |
— | ||
| replacement | |||||
|
11
|
11
291002244 Coin pare-chocs*corner-bumper |
291002244 |
from US $35.34 |
||
|
12
|
12
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
13
|
13
291000339 Bouchon parecho*plug-bumper |
291000339 |
from US $4.90 |
||
|
14
|
14
293750025 Ancrage tie rap*mount-tie rap |
293750025 |
US $7.65 |
||
|
15
|
15
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
16
|
16
293250068
Joint etanche *gasket
|
293250068 |
— | ||
| replacement | |||||
|
16
|
16
293250171 Joint etanche *gasket |
293250171 |
US $35.64 |
||
|
17
|
17
293720042 Passe-fils *grommet |
293720042 |
US $66.25 |
||
|
18
|
18
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
19
|
19
269500691
Coffre bagage *tray-storage
|
269500691 |
— | ||
|
20
|
20
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
21
|
21
293200020
Anneau etanche *seal-tray
|
293200020 |
— | ||
|
22
|
22
269500717
Coffre a gant *box-gloves
|
269500717 |
— | ||
|
23
|
23
269500928 Porte de coffre*door-box |
269500928 |
US $81.57 |
||
|
24
|
24
269500719
Loquet *latch
|
269500719 |
— | ||
|
25
|
25
293250100 Joint etanche *gasket |
293250100 |
US $18.85 |
||
|
26
|
26
269500820 Loquet retenue *latch-retainer |
269500820 |
US $16.76 |
||
|
27
|
27
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
28
|
28
293250099 Joint etanche *gasket |
293250099 |
US $8.76 |
||
|
29
|
29
291001899
Couvre moteur *engine cover
|
291001899 |
— | ||
|
30
|
30
291001900
Couvre moteur *engine cover
|
291001900 |
— | ||
|
31
|
31
293150088 Rivet-pop 3/16 *rivet-pop 3/16 |
293150088 |
US $1.34 |
||
|
32
|
32
293200020
Anneau etanche *seal-tray
|
293200020 |
— | ||
|
33
|
33
293730016 Dard noir *dart-black |
293730016 |
US $51.60 |
||
|
34
|
34
293800059
Loctite 243, 10 ml
|
293800059 |
— | ||
|
35
|
35
205083560 Screw-socket hd.din.912a2 |
205083560 |
US $16 |
||
|
36
|
36
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
37
|
37
291002006
Bouchon parecho*plug-bumper
|
291002006 |
— | ||
