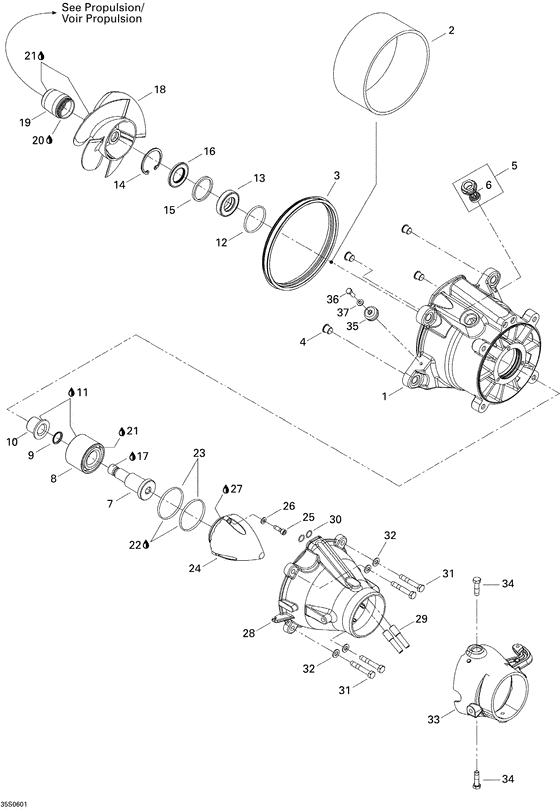

05- pump Diagram Bombardier RXP
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
267000084
Carter helice *housing-impel.
|
267000084 |
— | ||
|
2
|
2
267000105
Bague d usure *wear ring
RXP; |
267000105 |
— | ||
| replacement | |||||
|
2
|
2
267000372 Bague d usure *wear ringRXP; |
267000372 |
US $103.36 |
||
|
3
|
3
293200087 Anneau neoprene*neoprene seal |
293200087 |
US $12.55 |
||
|
4
|
4
267000093 Douille *bushing |
267000093 |
from US $14.42 |
||
|
5
|
5
267000282 Bouchon *plug |
267000282 |
US $19.47 |
||
|
6
|
6
271001235
Bouchon *plug
|
271001235 |
— | ||
| replacement | |||||
|
6
|
6
267000282 Bouchon *plug |
267000282 |
US $19.47 |
||
|
7
|
7
267000054 Arbre helice *shaft-impeller |
267000054 |
US $141.39 |
||
|
8
|
8
267000030
Roulement ang. *angle bearing
|
267000030 |
— | ||
| replacement | |||||
|
8
|
8
271002182 ANGLED BEARING |
271002182 |
US $99.45 |
||
|
9
|
9
505070315 Joint torique *o-ring |
505070315 |
US $18.35 |
||
|
10
|
10
267000048
Bague d arbre *shaft sleeve
|
267000048 |
— | ||
|
11
|
11
293550032
Graisse asalco *ball bearing grease
|
293550032 |
— | ||
|
12
|
12
293300090 Joint torique *o-ring |
293300090 |
US $9.76 |
||
|
13
|
13
293200086
Anneau etanche *oil seal
|
293200086 |
— | ||
| replacement | |||||
|
13
|
13
271002071 Oil Seal |
271002071 |
US $39.95 |
||
|
14
|
14
293370038 Circlip *circlip |
293370038 |
US $10.69 |
||
|
15
|
15
271001393 Entretoise *spacer |
271001393 |
US $9.66 |
||
|
16
|
16
293200089 Anneau etanche *oil seal |
293200089 |
US $23.38 |
||
|
17
|
17
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
18
|
18
267000283 Impeller-assy.RXP; |
267000283 |
US $421.33 |
||
| replacement | |||||
|
18
|
18
267000697 HELICE STLSS.AS*IMPELLER-ASSY.RXP; |
267000697 |
US $433.02 |
||
|
19
|
19
267000085
Prot.helice *boot-impeller
RXP; |
267000085 |
— | ||
|
20
|
20
293800050 Loctite 577 *loctite-577 |
293800050 |
US $122.37 |
||
|
21
|
21
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
22
|
22
293550032
Graisse asalco *ball bearing grease
|
293550032 |
— | ||
|
23
|
23
293300086 Joint torique *o-ring |
293300086 |
US $4.64 |
||
|
24
|
24
267000262 Couvercle turb.*cover-impeller |
267000262 |
US $23.38 |
||
|
25
|
25
205562060 Screw-socket din.912a2 s.grip |
205562060 |
US $24.75 |
||
|
26
|
26
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
27
|
27
293550032
Graisse asalco *ball bearing grease
|
293550032 |
— | ||
|
28
|
28
267000216 Venturi noir *venturi-blackRXP; |
267000216 |
US $195.81 |
||
|
29
|
29
271001133 Tube de siphon *tube-siphon |
271001133 |
US $96.20 |
||
|
30
|
30
293300013 Joint torique *o-ring |
293300013 |
US $100 |
||
|
31
|
31
207384060 Screw-hex.cap din.933a2 s.grip |
207384060 |
from US $4.08 |
||
|
32
|
32
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
33
|
33
267000302
Buse direction *steer. nozzle
RXP; |
267000302 |
— | ||
|
34
|
34
211000127 Screw-socket din.912a2 s.gripRXP; |
211000127 |
US $26 |
||
|
35
|
35
271001487 Anode zinc *anode zinc |
271001487 |
US $13.21 |
||
|
36
|
36
207362060 Screw-hex.cap din.933a2 s.grip |
207362060 |
US $19 |
||
|
37
|
37
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
