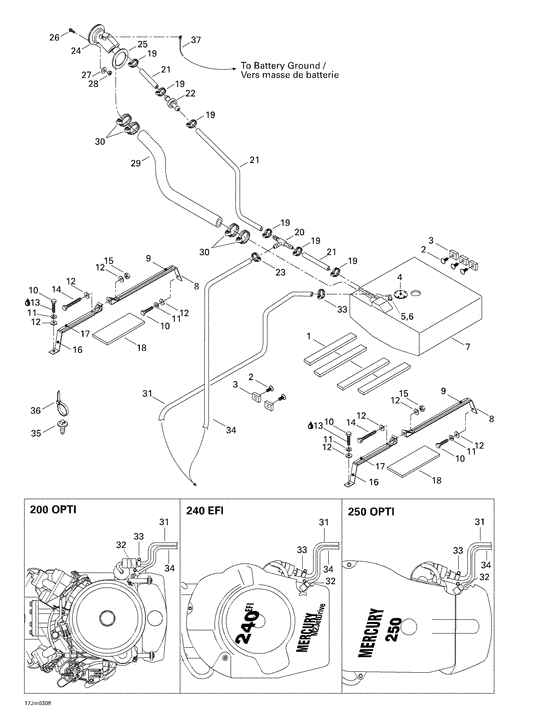

02- fuel system Diagram Bombardier Utopia
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
|
204470730
Cable masse*cable-ground
UTOPIA 205.; |
204470730 |
— | ||
|
1
|
1
204560115 Tampon protect.*pad-protector |
204560115 |
US $63.21 |
||
|
2
|
2
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
3
|
3
204060684 Tampon caout.*pad-rubber |
204060684 |
US $9.40 |
||
|
4
|
4
204560217
Capteur ess.*sensor-fuel level
|
204560217 |
— | ||
|
5
|
5
204560218
Tube triage*tube-pick up/rigid
|
204560218 |
— | ||
|
6
|
6
204560219
Soup.siphon*valve/anti-siphon
|
204560219 |
— | ||
|
7
|
7
204560220
Reserv.ess.*tank-fuel
|
204560220 |
— | ||
|
8
|
8
204560181 Sangle res.ess.*strap-fuel tank |
204560181 |
US $32.54 |
||
|
9
|
9
204560185 Tampon protect.*pad-protector |
204560185 |
US $13.60 |
||
|
10
|
10
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
11
|
11
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
12
|
12
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
13
|
13
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
14
|
14
207188060 Screw-hex.cap din.933a2 |
207188060 |
US $17.75 |
||
|
15
|
15
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
16
|
16
204560184
Sangle reserv. *strap-fuel tank
|
204560184 |
— | ||
|
17
|
17
204560186
Tampon protect.*pad-protector
|
204560186 |
— | ||
|
18
|
18
204560191 Tampon sangle *pad-strap/fuel tank |
204560191 |
US $13.60 |
||
|
19
|
19
293650069 Bride serrage *clamp-norma |
293650069 |
US $13.60 |
||
|
20
|
20
204560038
Raccord en t *fitting-t
|
204560038 |
— | ||
|
21
|
21
275500205
Boyau 16mm. *hose-16mm.
|
275500205 |
— | ||
|
22
|
22
204560101 Aer.anti-devers*vent-fuel surge protect |
204560101 |
US $89.73 |
||
|
23
|
23
293650121 Bride serrage *clamp-norma |
293650121 |
US $9.40 |
||
|
24
|
24
204560182 Goulot remplis.*neck-filler |
204560182 |
US $166.21 |
||
|
25
|
25
204560188 Espaceur *spacer |
204560188 |
US $13.60 |
||
|
26
|
26
208643560 Screw-pan hd.ph.din.7985a-a2 |
208643560 |
US $1.79 |
||
|
27
|
27
234040600 Washer-flat din.433a2 |
234040600 |
US $7.10 |
||
|
28
|
28
232541600 Nut-stop elastic din.985a2 |
232541600 |
US $7.40 |
||
|
29
|
29
204560134
Boyau rempl. ext.*hose-fill.neck
|
204560134 |
— | ||
| replacement | |||||
|
29
|
29
204560294
Boyau remp.ext.*hose-fill neck/soft
|
204560294 |
— | ||
|
30
|
30
293650078
Bride serrage *clamp-norma
|
293650078 |
— | ||
|
31
|
31
204560177
Boyau *hose-5/16
|
204560177 |
— | ||
|
32
|
32
293650121 Bride serrage *clamp-norma |
293650121 |
US $9.40 |
||
|
33
|
33
293650070 Bride serrage *clamp-norma |
293650070 |
US $13.60 |
||
|
34
|
34
204560178 Boyau *hose-1/4 |
204560178 |
US $50.38 |
||
|
35
|
35
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
36
|
36
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
37
|
37
204470646
Cable masse dr.*cable-ground
UTOPIA 185.; |
204470646 |
— | ||
