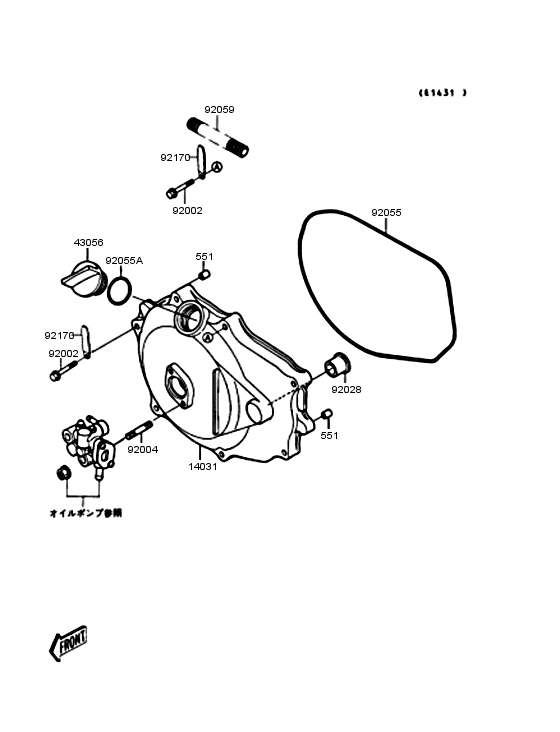

Engine cover Diagram Kawasaki JET MATE JB650-A
- Engine Capacity
- 650
- Year
- 1990
- Commercial Name
- JB650-A
- Sales region
- Japan
- Colour
- Gel Coat Polar White (BP)
- Frame
- JB650A 000501 -
- Engine
- JF650AE 040501 -
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
551
|
551
551R0812 PIN-DOWELノツク ピン |
551R0812 |
from US $6.02 |
||
|
14031
|
14031
14031-3706 Cover-generatorカバ-(ゼネレ-タ) |
14031-3706 |
US $96.35 |
||
| replacements | |||||
|
14031
|
14031
14031-3710 Cover-generatorカバ-(ゼネレ-タ) |
14031-3710 |
from US $93.29 |
||
|
14031
|
14031
14031-3707 Cover-generatorカバ-(ゼネレ-タ) |
14031-3707 |
US $96.35 |
||
|
43056
|
43056
43056502 BREATHERブリ-ザ(ブレ-キ) |
43056502 |
US $41.56 |
||
| replacement | |||||
|
43056
|
43056
14069-3709 BREATHERブリ-ザ(ブレ-キ) |
14069-3709 |
US $40.09 |
||
|
92002
|
92002
92002-3726 BOLT,6X30ボルト，6X30 |
92002-3726 |
from US $3.17 |
||
|
92004
|
92004
92004-3710 STUDスタツド |
92004-3710 |
from US $5.63 |
||
|
92028
|
92028
92028-3718 BUSHINGブツシング |
92028-3718 |
from US $6.97 |
||
|
92055
|
92055
92055-3712 RING-Oリング(0)，ゼネレ-タ TF@- |
92055-3712 |
from US $20.91 |
||
|
92055A
|
92055A
92055-515 0 RINGリング(0) |
92055-515 |
from US $2.40 |
||
|
92059
|
92059
92059-3897 TUBEチユ-ブ，L=150 |
92059-3897 |
from US $3.96 |
||
|
92170
|
92170
92170-3705 Clampクランプ |
92170-3705 |
from US $5.70 |
||
