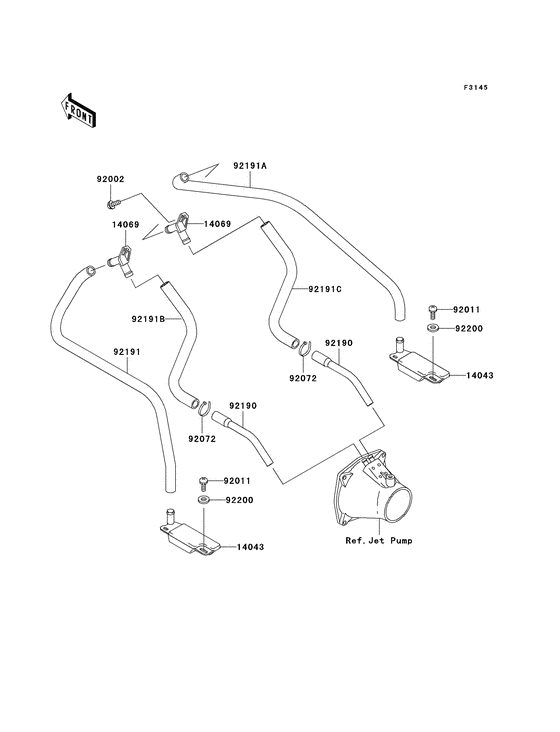

Bilge system Diagram Kawasaki JET SKI 900 STX JT900-E
- Engine Capacity
- 900
- Year
- 2005
- Commercial Name
- JT900-E
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JT900-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14043
|
14043
14043-3708 FILTER |
14043-3708 |
from US $16.27 |
||
|
14069
|
14069
14069-3708 BREATHER |
14069-3708 |
from US $9.84 |
||
|
92002
|
92002
92002-3728 BOLT,6X16Bolt,6x16; |
92002-3728 |
from US $3.17 |
||
|
92011
|
92011
92011-561 SCREW 0.22 X 0.563Screw,tapping; |
92011-561 |
US $0.95 |
||
|
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
||
|
92190
|
92190
92190-3971 TUBE,HULL-NOZZLETube,hull-nozzle; |
92190-3971 |
from US $14.80 |
||
| replacement | |||||
|
92190
|
92190
92192-3843 TUBE,HULL-NOZZLETube,hull-nozzle; |
92192-3843 |
from US $9.82 |
||
|
92191
|
92191
92191-3821 TUBE,FILTER-BREATHER(Tube,filter-breather(lh); |
92191-3821 |
from US $43.52 |
||
|
92191A
|
92191A
92191-3822 TUBE,FILTER-BREATHER(Tube,filter-breather(rh); |
92191-3822 |
from US $47.90 |
||
|
92191B
|
92191B
92191-3927 TUBETube,bilge breather-hull,left; |
92191-3927 |
from US $34.11 |
||
|
92191C
|
92191C
92191-3928 TUBETube,bilge breather-hull,right; |
92191-3928 |
from US $34.11 |
||
|
92200
|
92200
92200-3714 WASHER,5.9X16X1.5Washer,5.9x16x1.5; |
92200-3714 |
from US $2.74 |
||
