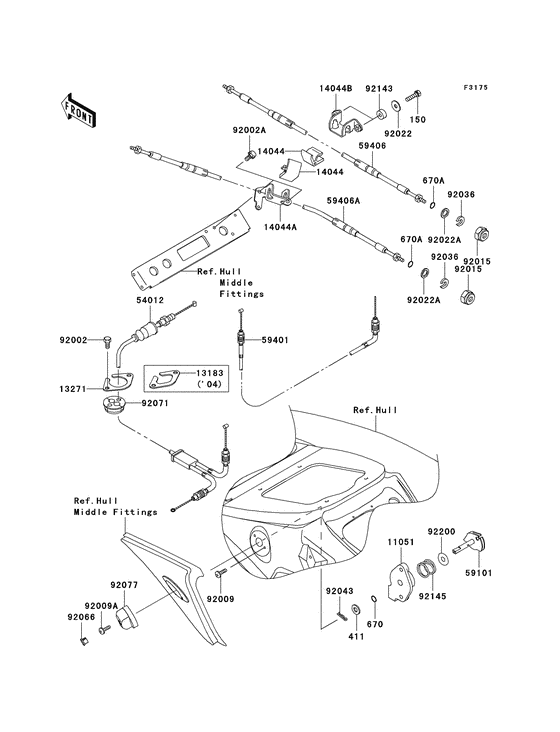

Cables Diagram Kawasaki JET SKI 900 STX JT900-E
- Engine Capacity
- 900
- Year
- 2005
- Commercial Name
- JT900-E
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JT900-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
150
|
150
150R0625 BOLT-WS,6X25Bolt-ws,6x25; |
150R0625 |
from US $3.01 |
||
|
411
|
411
411S0800 WASHERWasher-plain,8mm; |
411S0800 |
from US $1.74 |
||
|
670
|
670
670B1508 O RING,8MMO ring,8mm; |
670B1508 |
from US $1.63 |
||
|
670A
|
670A
670B2011 O RINGO ring,11mm; |
670B2011 |
from US $1.75 |
||
|
11051
|
11051
11051-3744 BRACKET,STARTER CABLEBracket,starter cable; |
11051-3744 |
from US $16.95 |
||
|
13271
|
13271
13271-3905 PLATE |
13271-3905 |
from US $10.30 |
||
| replacement | |||||
|
13271
|
13271
13272-3729 PLATE |
13272-3729 |
from US $8.55 |
||
|
14044
|
14044
14044-3714 HOLDER-CABLE STRGHolder-cable,steering; |
14044-3714 |
from US $3.01 |
||
|
14044A
|
14044A
14044-3717 HOLDER-CABLE,STEERINGHolder-cable,steering; |
14044-3717 |
from US $20.02 |
||
|
14044B
|
14044B
14044-3749 HOLDER-CABLE,STEERINGHolder-cable,steering; |
14044-3749 |
from US $21.38 |
||
|
54012
|
54012
54012-3769 CABLE-THROTTLE |
54012-3769 |
from US $158.34 |
||
|
59101
|
59101
59101-3715 REEL |
59101-3715 |
from US $44.43 |
||
|
59401
|
59401
59401-3728 CABLE-CHOKE |
59401-3728 |
from US $53.86 |
||
|
59406
|
59406
59406-3778 CABLE-STRG |
59406-3778 |
from US $167.84 |
||
|
59406A
|
59406A
59406-3779 CABLE-STRG,REVERSECable-strg,reverse; |
59406-3779 |
from US $266.20 |
||
|
92002
|
92002
92002-3728 BOLT,6X16Bolt,6x16; |
92002-3728 |
from US $3.17 |
||
|
92002A
|
92002A
92002-3755 BOLT,6X20Bolt,6x20; |
92002-3755 |
from US $3.17 |
||
|
92009
|
92009
92009-3789 SCREW,5X16Screw,5x16; |
92009-3789 |
from US $1.85 |
||
|
92009A
|
92009A
92009-3838 SCREW,4X12Screw,4x12; |
92009-3838 |
from US $1.04 |
||
|
92015
|
92015
92015-526 NUT 20 M/MNut,20mm; |
92015-526 |
from US $20.79 |
||
|
92022
|
92022
92022-3710 WASHERWasher,6.5x20x1.5; |
92022-3710 |
from US $2.85 |
||
|
92022A
|
92022A
92022-535 WASHER |
92022-535 |
from US $5.07 |
||
|
92036
|
92036
92036-501 RING-SNAP,7.7X17.5X3. |
92036-501 |
from US $8.59 |
||
| replacement | |||||
|
92036
|
92036
92033-3737 RING-SNAP,7.7X17.5X3. |
92033-3737 |
from US $3.48 |
||
|
92043
|
92043
92043-3752 PIN |
92043-3752 |
from US $2.06 |
||
|
92066
|
92066
92066-3770-6Z PLUG,FUEL&CHOKE KNOB,Plug,fuel&choke knob,f.black; |
92066-3770-6Z |
from US $3.62 |
||
|
92071
|
92071
92071-3790 GROMMET,HARNESSGrommet,harness; |
92071-3790 |
from US $7.44 |
||
|
92077
|
92077
92077-3732-6Z
KNOB,FUEL&CHOKE,F.BLA
Knob,fuel&choke,f.black; |
92077-3732-6Z |
— | ||
|
92143
|
92143
92143-3769 COLLAR,6.2X16X7.5Collar,6.2x16x7.5; |
92143-3769 |
from US $4.75 |
||
|
92145
|
92145
92145-3712 SPRING |
92145-3712 |
from US $3.96 |
||
|
92200
|
92200
92200-3770 WASHER,8.5X34X0.5Washer,8.5x34x0.5; |
92200-3770 |
from US $1.43 |
||
