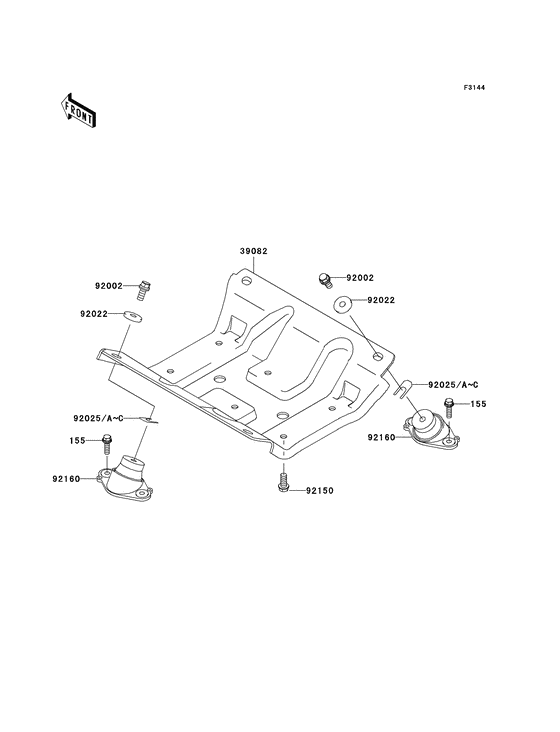

Engine mount Diagram Kawasaki JET SKI 900 STX JT900-E
- Engine Capacity
- 900
- Year
- 2005
- Commercial Name
- JT900-E
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- JT900-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
155
|
155
155R0830 BOLT-WSP-SMALL,8X30Bolt-wsp-small,8x30; |
155R0830 |
from US $1.43 |
||
|
39082
|
39082
39082-3722 MOUNT-ENGINE |
39082-3722 |
from US $153.59 |
||
|
92002
|
92002
92002-3770 BOLT,10X25Bolt,10x25; |
92002-3770 |
from US $7.92 |
||
|
92022
|
92022
92022-3023 WASHER,O32XO10.5X4TWasher,32x10.5x4; |
92022-3023 |
from US $8.87 |
||
|
92025
|
92025
92025-3705 SHIM,T=0.3MMShim,t=0.3mm; |
92025-3705 |
from US $2.58 |
||
|
92025A
|
92025A
92025-3706 SHIM,T=0.5MMShim,t=0.5mm; |
92025-3706 |
from US $2.58 |
||
|
92025B
|
92025B
92025-3707 SHIM,T=1.0MMShim,t=1.0mm; |
92025-3707 |
from US $3.42 |
||
|
92025C
|
92025C
92025-3708 SHIM,T=1.5MMShim,t=1.5mm; |
92025-3708 |
from US $4.59 |
||
|
92150
|
92150
92150-3818 BoltBolt,10x25; |
92150-3818 |
from US $5.07 |
||
|
92160
|
92160
92160-3838 DAMPER,ENGINE MOUNTDamper,engine mount; |
92160-3838 |
US $69.56 |
||
| replacement | |||||
|
92160
|
92160
92161-3789 DAMPER,ENGINE MOUNTDamper,engine mount; |
92161-3789 |
from US $75.25 |
||
