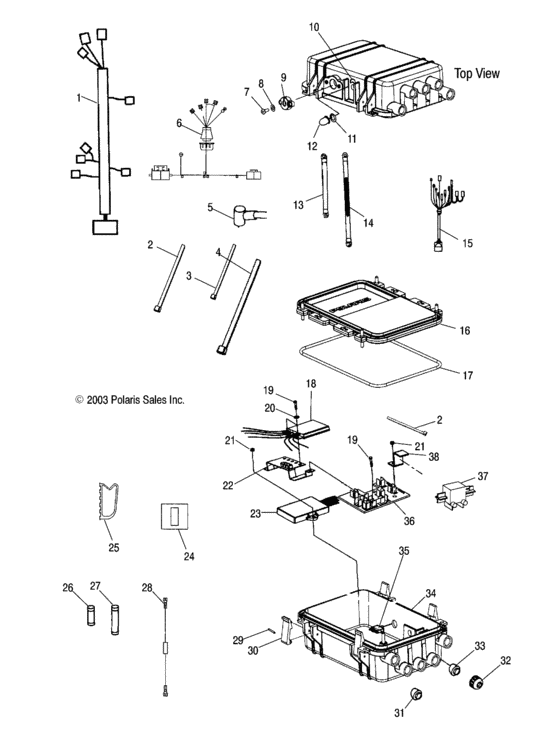

Electrical box (W045297DA/IA/IB) Diagram Polaris FREEDOM
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2461107
Harness, main
|
2461107 |
— | ||
|
2
|
2
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
3
|
3
7080483
Cable tie,4 inch
|
7080483 |
— | ||
|
4
|
4
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
5
|
5
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
6
|
6
2461113
Harness-starter relay,bilge
|
2461113 |
— | ||
|
7
|
7
7515113 Bolt,ss |
7515113 |
US $3.75 |
||
|
8
|
8
7555836 Washer |
7555836 |
US $2.28 |
||
|
9
|
9
5432574
Plate,stator,1 hole
|
5432574 |
— | ||
|
10
|
10
7073734
Decal, "electric box reset"
|
7073734 |
— | ||
|
11
|
11
5411491
O-ring
|
5411491 |
— | ||
|
12
|
12
7080461
Boot,threaded
|
7080461 |
— | ||
|
13
|
13
4010669
Cable-battery/solenoid 12"
|
4010669 |
— | ||
|
14
|
14
4010826
Cable, solenoid/starter
|
4010826 |
— | ||
|
15
|
15
2460718
Harness-8 wire stator,2cyl
|
2460718 |
— | ||
|
16
|
16
5433119
Cover, electrical box
|
5433119 |
— | ||
| replacement | |||||
|
16
|
16
2631998
Cover,accessory,e-box
|
2631998 |
— | ||
|
17
|
17
5432569
Seal
|
5432569 |
— | ||
| replacement | |||||
|
17
|
17
2632136 Electrical box,plastic,asm, |
2632136 |
US $126.98 |
||
|
18
|
18
4010648 Regulator-s/s 1 button 505 |
4010648 |
US $202.79 |
||
|
19
|
19
7512042 Bolt, s,s, |
7512042 |
US $3.26 |
||
|
20
|
20
7555837
Washer, flat, s,s,
|
7555837 |
— | ||
|
21
|
21
7547061
Nut,nylok,ss
|
7547061 |
— | ||
|
22
|
22
2410250
Asm-strap,grounding w/fuses
|
2410250 |
— | ||
|
24
|
24
7080464 Anchor, cable tie(10) |
7080464 |
US $3.75 |
||
|
25
|
25
5521286-25
Conduit, wire
|
5521286-25 |
— | ||
|
26
|
26
4060161
Fuse,3amp,agw
|
4060161 |
— | ||
|
27
|
27
4060111
Fuse,1/4 amp (10)
|
4060111 |
— | ||
|
28
|
28
2460928 Harness-jumper |
2460928 |
US $17.24 |
||
|
29
|
29
5333544 Pin,latch |
5333544 |
US $13.14 |
||
|
30
|
30
5432503
Latch
|
5432503 |
— | ||
| replacement | |||||
|
30
|
30
2632136 Electrical box,plastic,asm, |
2632136 |
US $126.98 |
||
|
31
|
31
4010261
Plug,sealing,wire
|
4010261 |
— | ||
|
32
|
32
5432502
Cap,grommet
|
5432502 |
— | ||
|
33
|
33
5411235
Grommet
|
5411235 |
— | ||
|
34
|
34
2632137
Electrical box,ignition,asm,
Incl. 16,17,29,30; |
2632137 |
— | ||
|
35
|
35
2434011 Ckt,breaker,15a,(water,) |
2434011 |
US $25.39 |
||
|
36
|
36
2410297 Asm-board,terminal |
2410297 |
US $16.24 |
||
|
38
|
38
5244370
Bracket, coil
|
5244370 |
— | ||
