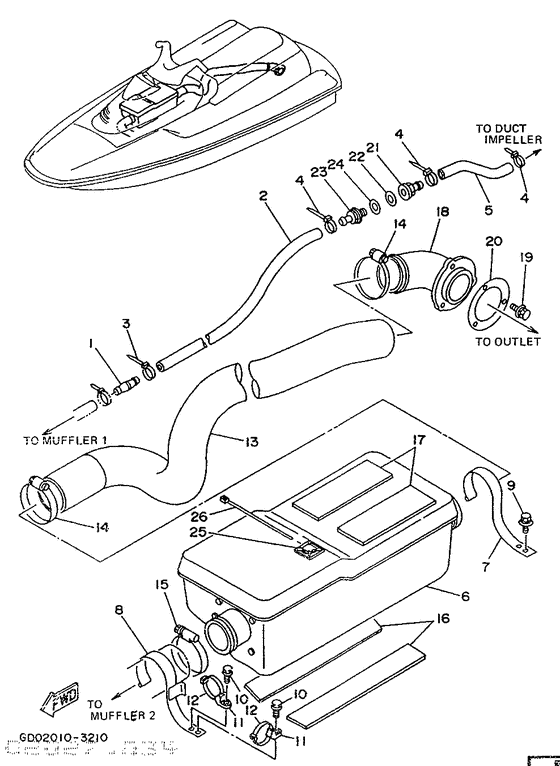

Exhaust 2 Diagram Yamaha 700TX
- Model code
- GD04
- Year
- 1993
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6M6-51142-00-00
Connection
|
6M6-51142-00-00 |
— | ||
|
02
|
02
90445-14M15-00 Hose (L460) |
90445-14M15-00 |
US $37.42 |
||
| replacement | |||||
|
02
|
02
90445-14M03-00 Hose |
90445-14M03-00 |
US $36.52 |
||
|
03
|
03
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
03
|
03
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
04
|
04
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
05
|
05
90445-14M17-00 Hose (L102) |
90445-14M17-00 |
from US $4.84 |
||
|
06
|
06
GD0-U7550-00-00 Water LockYmus |
GD0-U7550-00-00 |
US $703.04 |
||
|
07
|
07
FN8-06755-90-00
Clip, Hose Exhaust
|
FN8-06755-90-00 |
— | ||
|
08
|
08
GD0-6755K-00-00
Clip, Exhaust Hose
|
GD0-6755K-00-00 |
— | ||
|
09
|
09
90119-06913-00 Bolt, With Washer |
90119-06913-00 |
from US $1.98 |
||
|
10
|
10
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
11
|
11
90600-90005-00 Base, Clamp |
90600-90005-00 |
US $1.87 |
||
|
12
|
12
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
GD0-U7555-00-00 Hose, ExhaustYmus |
GD0-U7555-00-00 |
US $143.82 |
||
|
14
|
14
90601-168U7-00 Band, HoseYmus |
90601-168U7-00 |
from US $7.45 |
||
| replacement | |||||
|
14
|
14
90601-170UG-00 Band, Hose 70Ymus |
90601-170UG-00 |
from US $14.35 |
||
|
15
|
15
90601-179U8-00 Band, Hose 79Ymus |
90601-179U8-00 |
from US $13.23 |
||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
Ymus |
999-99999-99-00 |
— | ||
|
16
|
16
EU0-U7593-30-00
Mat
Ymus |
EU0-U7593-30-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
Ymus |
999-99999-99-00 |
— | ||
|
17
|
17
EU0-U7593-50-00
Mat
Ymus |
EU0-U7593-50-00 |
— | ||
|
18
|
18
FN8-67565-01-00
Through Hall
|
FN8-67565-01-00 |
— | ||
|
19
|
19
90119-05912-00 Bolt, With Washer |
90119-05912-00 |
from US $2.69 |
||
|
20
|
20
FN8-U7525-00-00
Packing
Ymus |
FN8-U7525-00-00 |
— | ||
| replacement | |||||
|
20
|
20
FN8-U7525-01-00
Packing
Ymus |
FN8-U7525-01-00 |
— | ||
|
21
|
21
90604-80757-00
Connection, Thru-Hull 1/4
|
90604-80757-00 |
— | ||
|
22
|
22
90430-13909-00 Gasket |
90430-13909-00 |
from US $1.90 |
||
|
23
|
23
906-04807-58-00
Connection, Thru-Hull 1/4
|
906-04807-58-00 |
— | ||
|
24
|
24
90430-13909-00 Gasket |
90430-13909-00 |
from US $1.90 |
||
|
25
|
25
90600-90004-00 Base,clamp |
90600-90004-00 |
from US $3.54 |
||
|
26
|
26
90601-20015-00 Band |
90601-20015-00 |
from US $2.23 |
||
| replacement | |||||
|
26
|
26
90601-20024-00 Band |
90601-20024-00 |
from US $3.04 |
||
