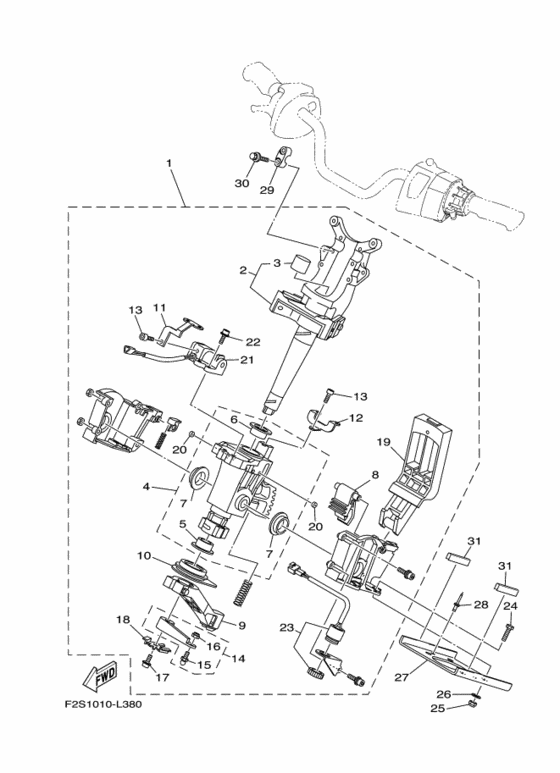

Steering 2 Diagram Yamaha FA1800 FX Cruiser SHO
- Model code
- F2S1
- Engine Capacity
- 1800
- Year
- 2012
- Sales region
- Japan (030)
- Colour
- Dark Purplish Blue Metallic 11 (DPBM11; 1187)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2S-61400-00-00 Steering Master AssyＳＴＥＥＲＩＮＧ ＭＡＳＴＥＲ ＡＳＳＹ; |
F2S-61400-00-00 |
from US $1,623.60 |
||
|
2
|
2
F1W-67410-11-00 Shaft Assy．ＳＨＡＦＴ ＡＳＳＹ; |
F1W-67410-11-00 |
from US $436.48 |
||
|
3
|
3
F1W-61435-00-00 Seal, Pipe 30．．ＳＥＡＬ， ＰＩＰＥ ３０; |
F1W-61435-00-00 |
from US $17.85 |
||
|
4
|
4
F1W-6773D-00-00 Tube & Bushing Set．ＴＵＢＥ ＆ａｍｐ； ＢＵＳＨＩＮＧ ＳＥＴ; |
F1W-6773D-00-00 |
from US $399.65 |
||
|
5
|
5
F1S-6134M-00-00 Bush．．ＢＵＳＨ; |
F1S-6134M-00-00 |
from US $4.53 |
||
|
6
|
6
F2C-6134M-00-00 Bush．．ＢＵＳＨ; |
F2C-6134M-00-00 |
from US $10.06 |
||
|
7
|
7
F1S-6134M-10-00 Bush．．ＢＵＳＨ; |
F1S-6134M-10-00 |
from US $5.81 |
||
|
8
|
8
F1S-61782-00-00 Lock 1．ＬＯＣＫ １; |
F1S-61782-00-00 |
from US $24.09 |
||
|
9
|
9
F1S-6146A-00-00 Cable Stopper Assy．．ＣＡＢＬＥ ＳＴＯＰＰＥＲ ＡＳＳＹ; |
F1S-6146A-00-00 |
from US $116.19 |
||
|
10
|
10
F1S-6143C-00-00 Seal, Rubber．ＳＥＡＬ， ＲＵＢＢＥＲ; |
F1S-6143C-00-00 |
from US $29.75 |
||
|
11
|
11
F1W-65938-00-00 Stay 1．ＳＴＡＹ １; |
F1W-65938-00-00 |
from US $31.37 |
||
|
12
|
12
F2S-65939-00-00 Stay 2．ＳＴＡＹ ２; |
F2S-65939-00-00 |
from US $15.44 |
||
|
13
|
13
F1B-613C1-00-00 Screw．ＳＣＲＥＷ; |
F1B-613C1-00-00 |
from US $2.43 |
||
| replacement | |||||
|
13
|
13
F1B-613C1-10-00 SCREW．ＳＣＲＥＷ; |
F1B-613C1-10-00 |
from US $8.08 |
||
|
14
|
14
F1S-6153R-01-00 Arm Assy．．ＡＲＭ ＡＳＳＹ; |
F1S-6153R-01-00 |
from US $35.99 |
||
|
15
|
15
EU0-61461-02-00 Stud, Joint Ball．．ＳＴＵＤ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-02-00 |
from US $18.20 |
||
|
16
|
16
95720-06300-00 Nut, Self-Locking．．ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
17
|
17
F1W-61355-00-00 Bolt．ＢＯＬＴ; |
F1W-61355-00-00 |
from US $12.61 |
||
| replacement | |||||
|
17
|
17
F1W-61355-10-00 Bolt．ＢＯＬＴ; |
F1W-61355-10-00 |
from US $8.81 |
||
|
18
|
18
F1W-6142B-00-00 Plate, Retaining．ＰＬＡＴＥ， ＲＥＴＡＩＮＩＮＧ; |
F1W-6142B-00-00 |
from US $16.01 |
||
|
19
|
19
F2S-6151M-00-00 Lever Assy．ＬＥＶＥＲ ＡＳＳＹ; |
F2S-6151M-00-00 |
from US $43.38 |
||
|
20
|
20
F1W-6358B-00-00 Plug．ＰＬＵＧ; |
F1W-6358B-00-00 |
from US $11.05 |
||
|
21
|
21
F1W-68303-00-00 Sensor Assy．ＳＥＮＳＯＲ ＡＳＳＹ; |
F1W-68303-00-00 |
from US $785.68 |
||
|
22
|
22
F1S-61355-00-00 Bolt．ＢＯＬＴ; |
F1S-61355-00-00 |
from US $8.36 |
||
|
23
|
23
F1S-68341-00-00 Buzzer．ＢＵＺＺＥＲ; |
F1S-68341-00-00 |
from US $153.88 |
||
|
24
|
24
97080-08035-00 BoltＢＯＬＴ; |
97080-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
24
|
24
97070-08035-00 BoltＢＯＬＴ; |
97070-08035-00 |
from US $2.59 |
||
|
24
|
24
97095-08035-00 BoltＢＯＬＴ; |
97095-08035-00 |
from US $5.53 |
||
|
25
|
25
9572R-08300-00 Nut, FlangeＮＵＴ， ＦＬＡＮＧＥ; |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
25
|
25
95780-08300-00 Nut, Nylon (6J8)ＮＵＴ， ＦＬＡＮＧＥ; |
95780-08300-00 |
from US $6.74 |
||
|
26
|
26
F1W-U725E-00-00 WasherＷＡＳＨＥＲ; |
F1W-U725E-00-00 |
from US $14.15 |
||
|
27
|
27
F1X-U1554-00-00 Plate, RetainingＰＬＡＴＥ， ＲＥＴＡＩＮＩＮＧ; |
F1X-U1554-00-00 |
from US $37.99 |
||
|
28
|
28
90267-489U6-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
28
|
28
90267-48930-00 Rivet, SealedＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48930-00 |
from US $2.69 |
||
|
29
|
29
EU0-23814-31-00 Holder, Handle UpperＨＯＬＤＥＲ， ＨＡＮＤＬＥ ＵＰＰＥＲ; |
EU0-23814-31-00 |
from US $13.74 |
||
| replacement | |||||
|
29
|
29
EU0-23814-32-00 Holder, Handle UpperＨＯＬＤＥＲ， ＨＡＮＤＬＥ ＵＰＰＥＲ; |
EU0-23814-32-00 |
from US $22.22 |
||
|
30
|
30
90119-089UU-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-089UU-00 |
from US $7.64 |
||
| replacement | |||||
|
30
|
30
90119-089U1-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-089U1-00 |
from US $9.22 |
||
|
31
|
31
F2S-U5162-00-00 TrimＴＲＩＭ; |
F2S-U5162-00-00 |
from US $3.68 |
||
