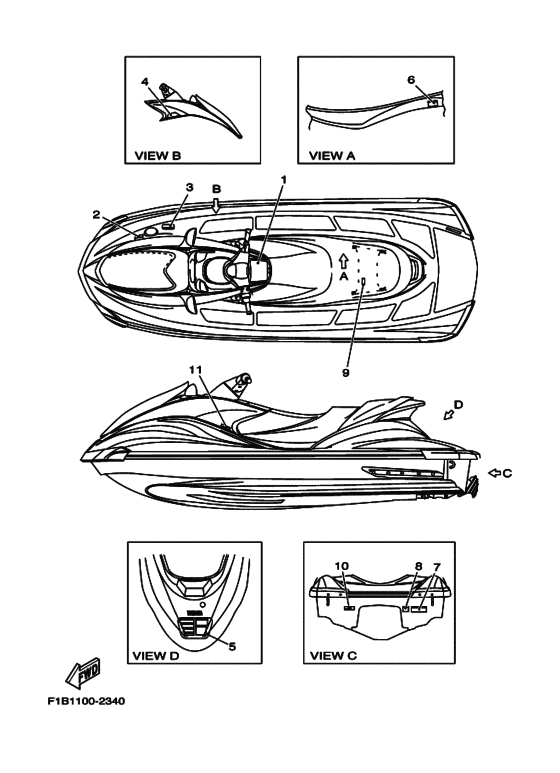

Important labels 3 Diagram Yamaha FX1000 FX140
- Model code
- F1B3
- Year
- 2002
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1B-641B1-20-00
Label, Warning Uniform 1
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＵＮＩＦＯＲＭ １; |
F1B-641B1-20-00 |
— | ||
|
2
|
2
F0M-6415B-00-00
Label, Warning(Fuel)
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ; ＦＵＥＬ |
F0M-6415B-00-00 |
— | ||
|
3
|
3
F1D-6418R-00-00
Label, Warning Ventilation
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＶＥＮＴＩＬＡＴＩＯＮ; |
F1D-6418R-00-00 |
— | ||
|
4
|
4
F0V-641D5-40-00 Label, Warning Shift LeverＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＳＨＩＦＴ ＬＥＶＥＲ; |
F0V-641D5-40-00 |
from US $27.77 |
||
|
5
|
5
F1B-641E1-20-00
Label, Set 1
ＬＡＢＥＬ， ＳＥＴ １; |
F1B-641E1-20-00 |
— | ||
|
6
|
6
F0M-6418B-00-00
Label, Caution
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ; ＲＨ ＩＮＳＩＤＥ |
F0M-6418B-00-00 |
— | ||
|
7
|
7
F0M-6418G-00-00
Label, Caution
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ; |
F0M-6418G-00-00 |
— | ||
|
8
|
8
F0P-6416R-20-00
Label, Warning (Reverse)
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ; ＲＥＶＥＲＳＥ |
F0P-6416R-20-00 |
— | ||
|
9
|
9
F1B-641F3-20-00 Label, Caution OilＬＡＢＥＬ， ＣＡＵＴＩＯＮ ＯＩＬ; |
F1B-641F3-20-00 |
US $11.19 |
||
|
10
|
10
F0M-641E1-00-00 Label, Set 1ＬＡＢＥＬ， ＳＥＴ １; |
F0M-641E1-00-00 |
US $14.45 |
||
|
11
|
11
GA9-U411B-00-00
Plate,assy
ＰＬＡＴＥ，ＡＳＳＹ; ＹＭＵＳ |
GA9-U411B-00-00 |
— |
